BendPak HD-9ST

4,082 kg narrow four-post hoist combining drive-on access, parking/storage capability and workshop service access in a compact 2,546 mm overall width.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak HD-9ST

4,082 kg Narrow Four-Post Parking / Service Hoist

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,082 kg
Rated capacit
Narrow standard-height four-post
Configuration
1,892 mm
Maximum lifting height
1,943 mm
Drive-through clearance

Product overview

The BendPak HD-9ST packages the HD-9 family into a narrower footprint for workshops and garages where every millimetre of bay width matters. It retains a 4,082 kg capacity, open-centre under-vehicle access and accessory-ready runways while reducing overall and drive-through width compared with the standard HD-9. Mechanical locks, pneumatic lock release and enclosed cable/sheave systems provide the familiar four-post operating layout. It is a practical choice where parking, storage and general under-vehicle work need to share a tighter bay.

Key features

  • 4,082 kg rated lifting capacity
  • Narrow 2,546 mm overall width
  • 1,943 mm drive-through clearance
  • Open-centre drive-on service platform
  • 114 mm minimum runway height
  • 4,166 mm runway length
  • Multi-position mechanical safety locks
  • Push-button pneumatic lock release
  • Independent slack-cable safety protection
  • Runway rails for compatible rolling jacks and accessories

Detail photography

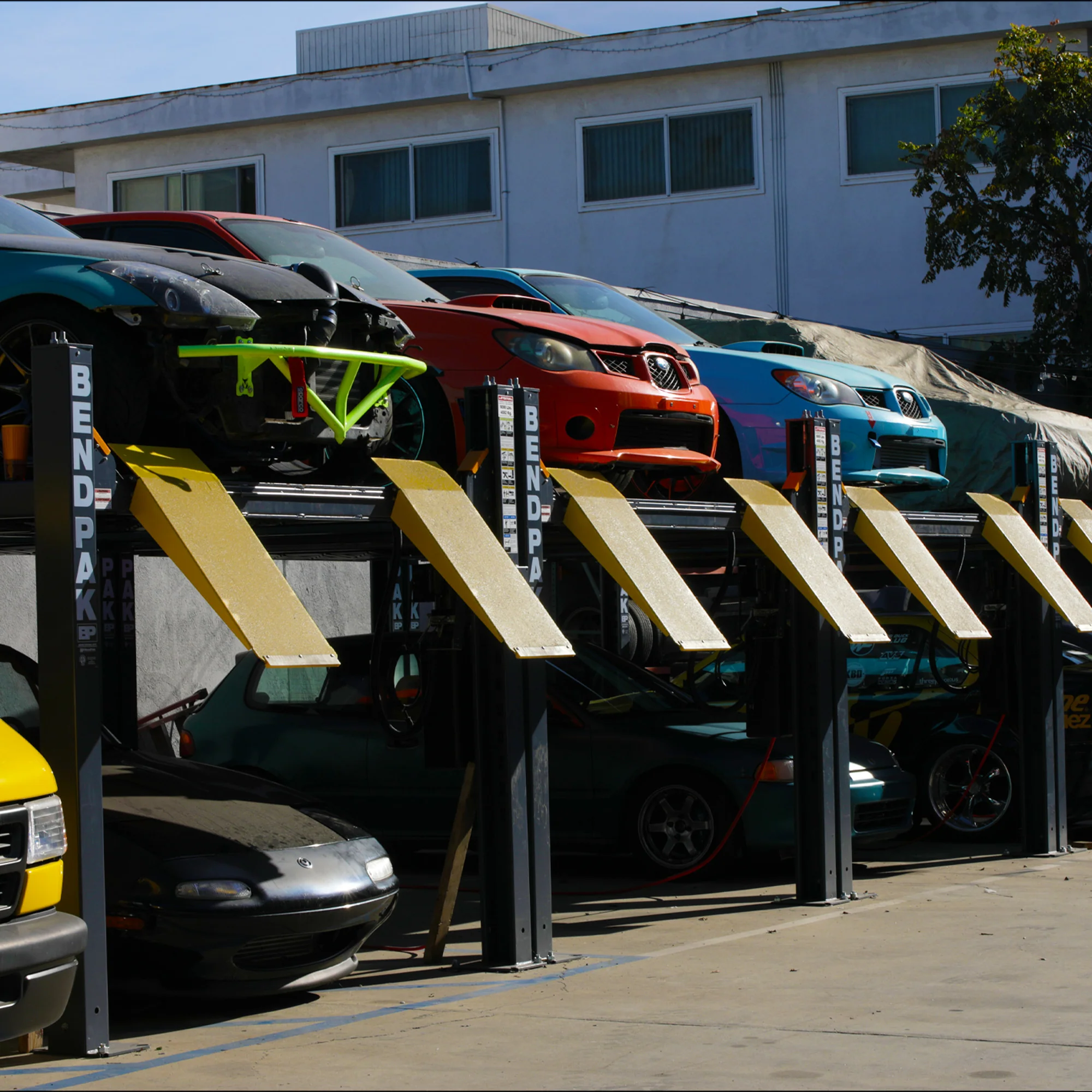

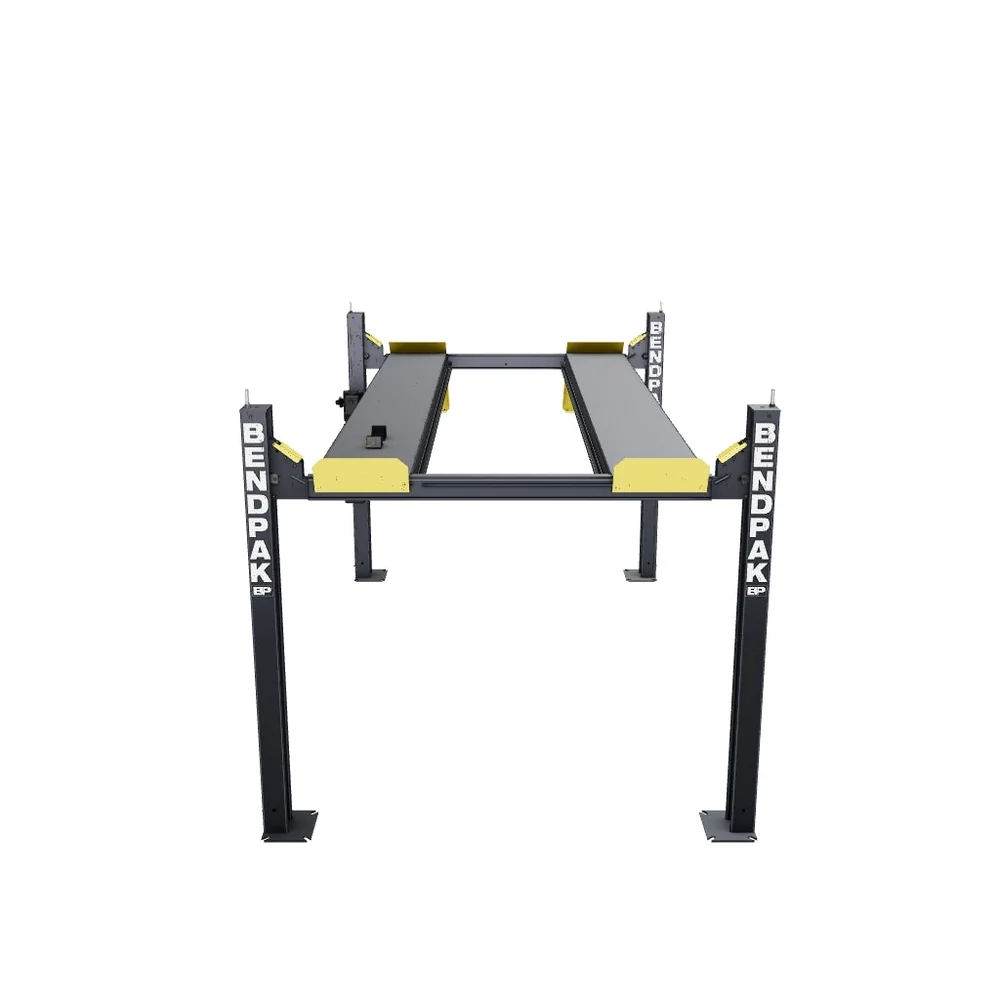

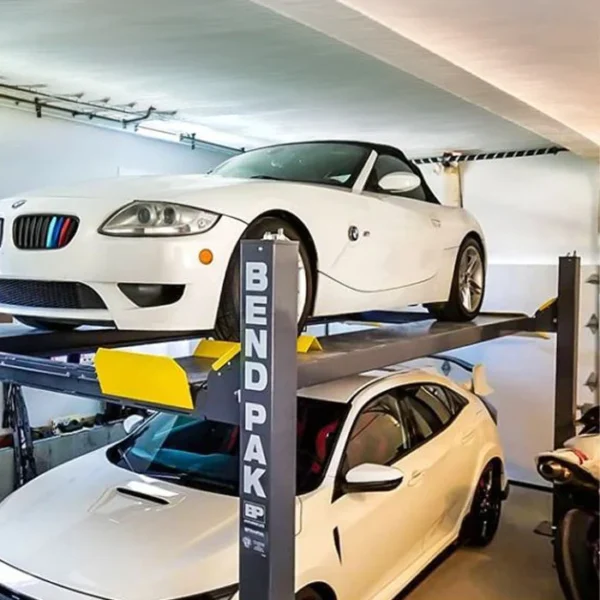

Narrow column spacing and runway layout
Approach ramps and low runway profile

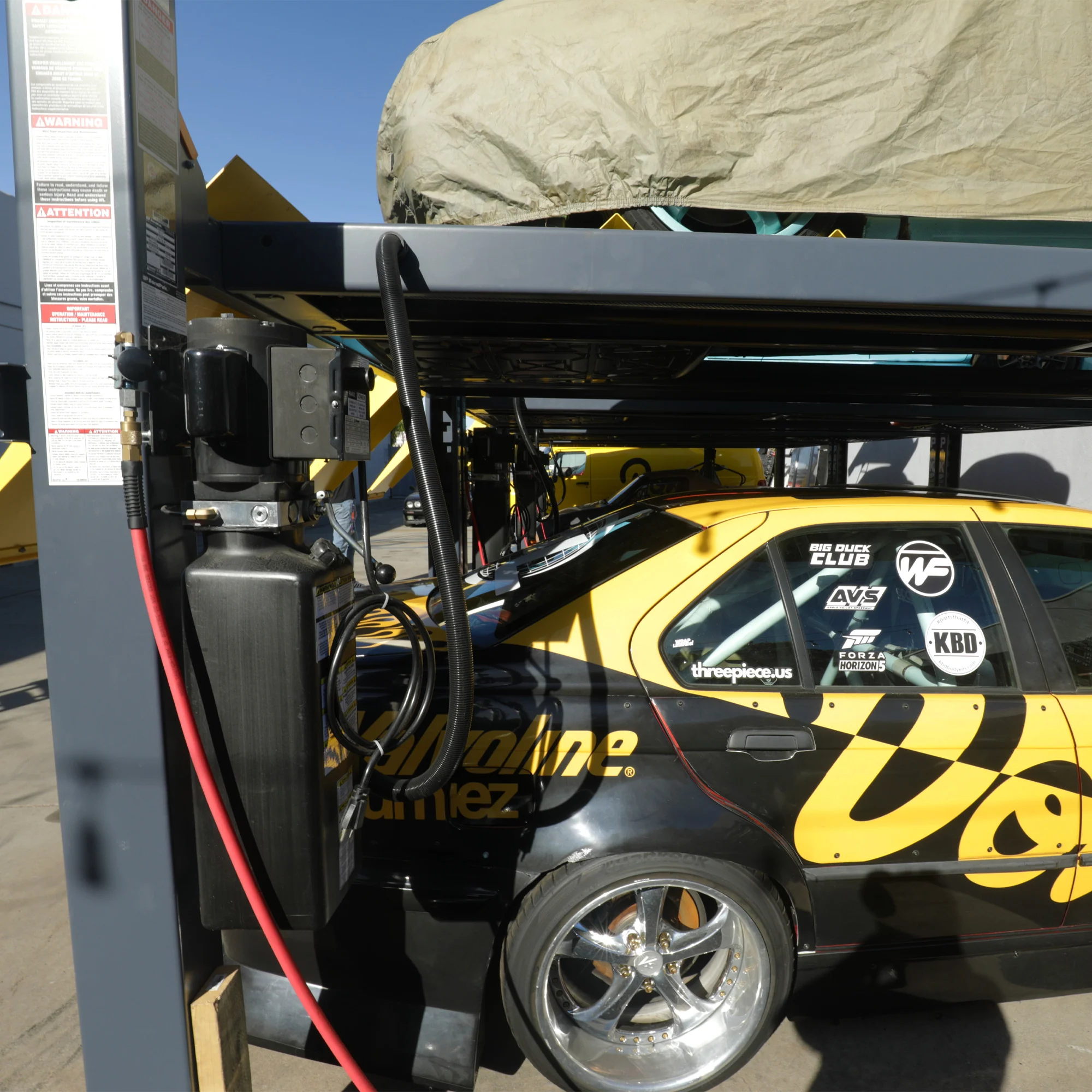

Under-runway hydraulic cylinder arrangement
Cable sheaves / internal cable routing
Lock ladder and mechanical safety latch
Pneumatic lock release
Optional RJ45-series bridge-jack arrangement where shown

Ideal for

Tighter mechanical workshops, enthusiast garages, collector storage and mixed parking/service bays needing 4,082 kg capacity without the width of a standard HD-9.

Specifications

Specifications

Details

Capacity
4,082 kg
Configuration
Narrow standard-height four-post
Overall width
2,546 mm
Overall length
5,080 mm
Drive-through clearance
1,943 mm

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HD-9ST
BendPak SKU
5175860
Rated lifting capacity
4,082 kg
Configuration
4,082 kg
Minimum runway height
114 mm
Maximum rise
1,778 mm
Maximum lifting height
1,892 mm
Time to full rise
45 seconds
Overall width
2,546 mm
Outside length
4,420 mm
Overall length
5,080 mm
Column height
2,235 mm
Width between columns
2,280 mm
Drive-through clearance
1,943 mm
Runway width
483 mm
Runway length
4,166 mm
Width between runways
953 mm
Minimum wheelbase / rated-capacity reference
2,921 mm at rated capacity
Locking
12 positions; 102 mm spacing
Power unit
2 HP on current manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
Narrow-width HD-9 platform for tighter bays

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Four-post hoist structure with four columns, crossbeams and model-specific runways.
  • Electric-hydraulic lifting system with the model-specific under-runway hydraulic cylinder and cable equalisation arrangement.
  • Multi-position mechanical safety locks, adjustable lock ladders and secondary slack-cable safety protection where specified for the exact model.
  • Push-button pneumatic safety-lock release system where specified for the exact model.
  • Approach ramps / wheel stops and runway accessory rails as supplied with the Australian configuration.

Options

  • Compatible rolling bridge jack(s) for wheel-off service, subject to exact model capacity and Australian availability.
  • Drip trays, rolling drain pan, jack platform and/or solid deck accessories where compatible with the exact model.
  • Portable wheel/caster kit on compatible HD-series models only.
  • Drive-through or alternative approach-ramp configuration where approved for the exact model.

Workshop fit

BendPak HD-9ST is rated to 4,082 kg. Key published dimensions in this brief include overall width 2,546 mm, overall length 5,080 mm, runway length 4,166 mm, width between columns 2,280 mm, drive-through clearance 1,943 mm and maximum lifting height 1,892 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raised vehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability.

Frequently asked questions

How narrow is the HD-9ST?
The current manufacturer specification lists 2,546 mm overall width and 1,943 mm drive-through clearance.
The lift is rated to 4,082 kg, but actual suitability also depends on vehicle width, wheelbase, axle loads, approach clearance and correct runway positioning.
A compatible rolling bridge jack can be added for wheel-off work. The exact jack model and capacity must be confirmed for the Australian-supplied lift.
Yes. The four-post runway layout can support parking/storage applications when used within the manufacturer requirements and site clearances.
Iron Lift should confirm slab/foundation, electrical supply, workshop air for the pneumatic lock release, unloading access and installation clearances before supply.
