BendPak HDS27

12,247 kg commercial four-post truck hoist for fleet, municipal, transport and heavy-vehicle workshops requiring a wide drive-on service platform.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak HDS27

12,247 kg Heavy-Duty Commercial Four-Post Truck Hoist

12,247 kg commercial four-post truck hoist for fleet, municipal, transport and heavy-vehicle workshops requiring a wide drive-on service platform.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
12,247 kg
Rated capacity
Heavy-duty commercial standard-length four-post
Configuration
1,765 mm
Maximum lifting height
2,769 mm
Drive-through clearance

Product overview

The BendPak HDS27 moves Iron Lift into true commercial truck and fleet lifting. With a 12,247 kg rating, 559 mm runways and a 2,769 mm drive-through, the platform is designed for substantially larger and heavier vehicles than ordinary workshop four-post lifts. The heavy-duty cable and sheave system, mechanical safety locks, pneumatic release and robust base structure are intended for regular commercial service. Compatible rolling bridge jacks can expand the lift into wheel, brake and axle work. For fleet, council, transport and industrial workshops, the HDS27 provides a standard-length heavy platform before stepping to the extended HDS27X.

Key features

  • 12,247 kg rated lifting capacity
  • Commercial heavy-vehicle four-post configuration
  • 3,899 mm overall width
  • 2,769 mm drive-through clearance
  • 6,490 mm current manufacturer runway length
  • 559 mm wide runways
  • Heavy-duty cable/sheave and hydraulic system
  • Multi-position spring-loaded safety locks
  • Secondary slack-cable safety protection
  • Compatible rolling bridge jacks for heavy wheel-off service

Detail photography

Heavy commercial columns/base plates
Wide heavy-duty runways and crossbeams

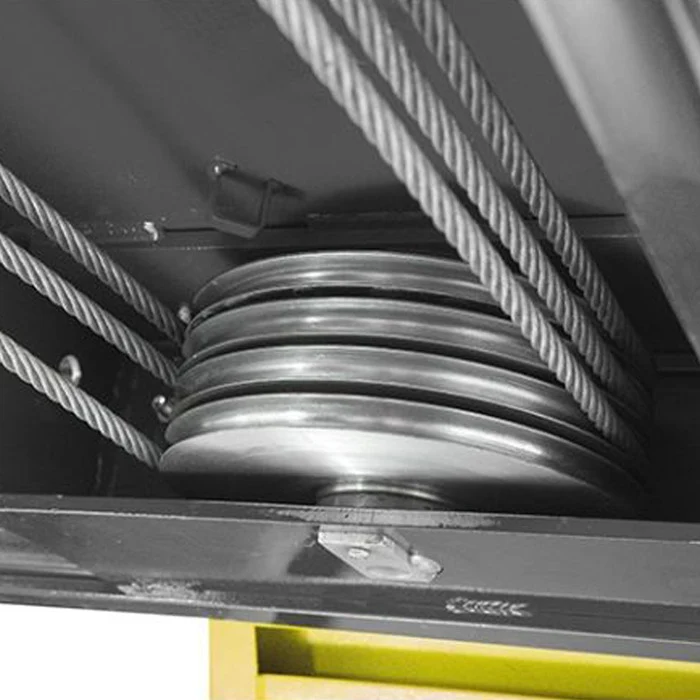

Large cable sheaves / galvanized lifting cables
Under-runway hydraulic cylinder and flow control

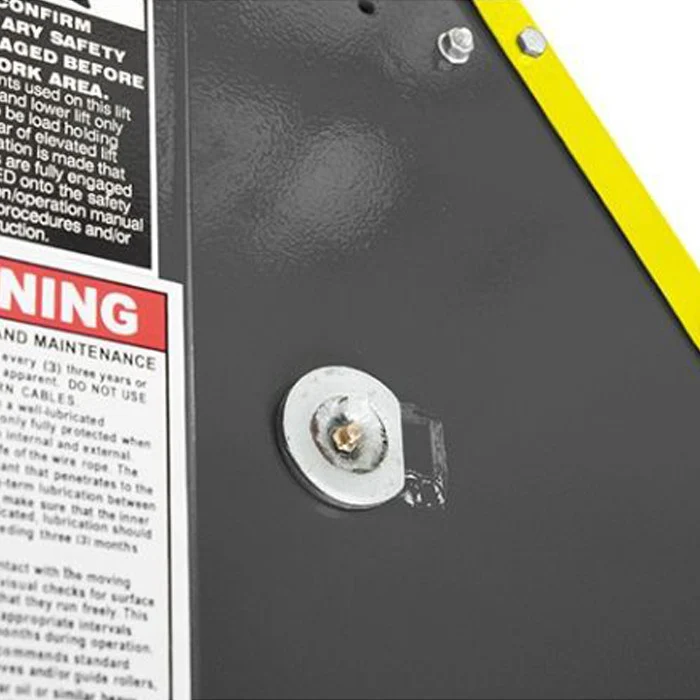

Mechanical lock systems
Pneumatic lock release

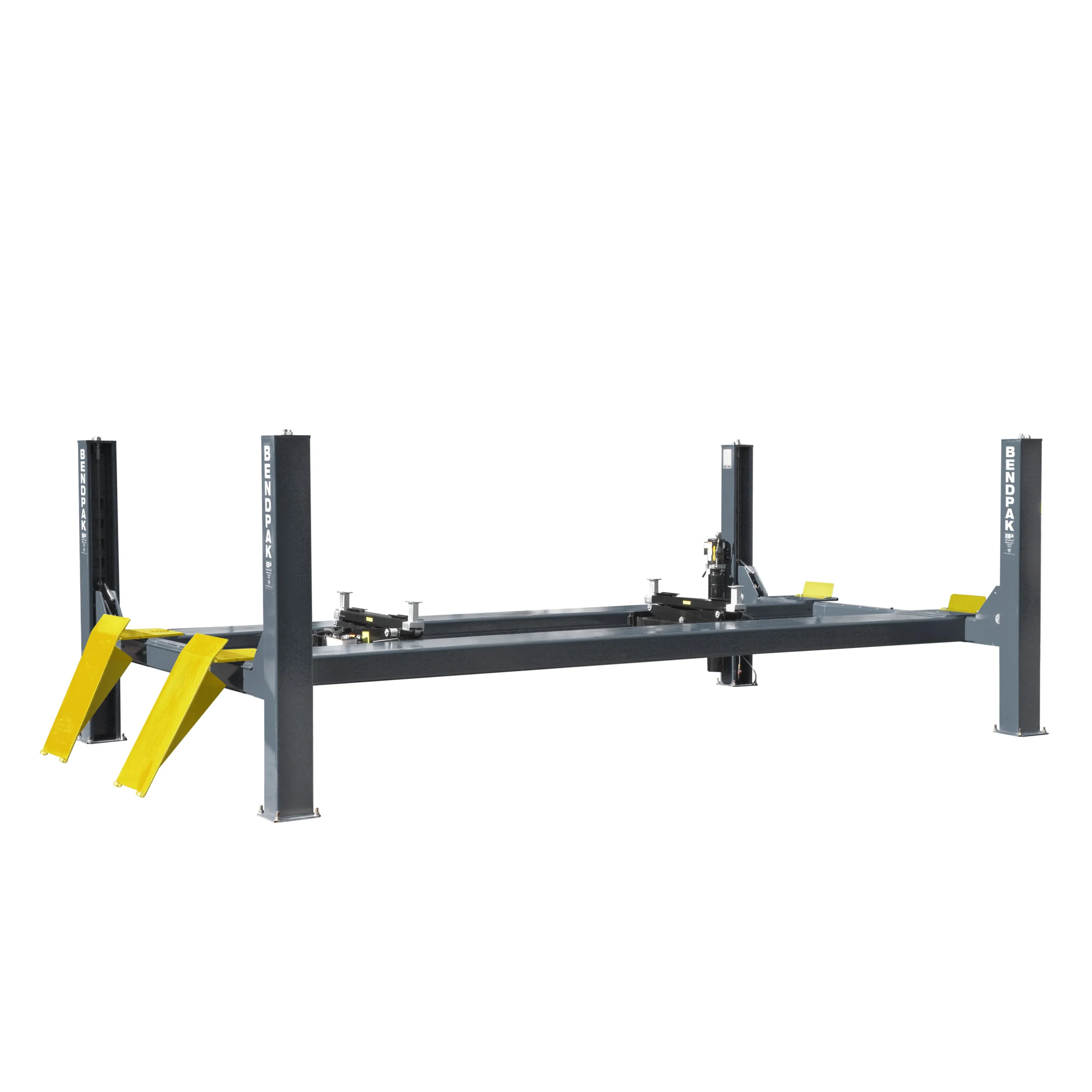

Heavy-duty rolling bridge jack / adapter configuration where shown

Ideal for

Truck and bus workshops, transport fleets, local government, logistics, mining/industrial support and commercial service operations maintaining heavy vehicles within the published load and dimensional envelope.

Specifications

Specifications

Details

Capacity
12,247 kg
Configuration
Heavy-duty commercial standard-length four-post
Overall width
3,899 mm
Overall length
7,944 mm
Drive-through clearance
2,769 mm

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HDS27
BendPak SKU
5175162
Rated lifting capacity
12,247 kg
Configuration
12,247 kg
Minimum runway height
241 mm
Maximum rise
1,556 mm
Maximum lifting height
1,765 mm
Time to full rise
75 seconds on current Genesis listing; current BendPak geometry to control if values differ
Overall width
3,899 mm
Outside length
6,528 mm
Overall length
7,944 mm
Column height
2,318 mm
Width between columns
3,391 mm
Drive-through clearance
2,769 mm
Runway width
559 mm
Runway length
6,490 mm
Width between runways
1,016-1,149 mm
Minimum wheelbase / rated-capacity reference
4,699 mm at rated capacity
Locking
13 positions; 102 mm spacing
Power unit
2 HP on current BendPak manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
12.247 t commercial truck/fleet platform; Genesis and current BendPak technical values differ in several rows

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Heavy-duty four-post structure with columns, crossbeams, wide runways and base plates for the exact model.
  • Single hydraulic under-runway cylinder, cable equalisation system and model-specific heavy-duty sheaves/cables.
  • Multi-position spring-loaded mechanical safety locks, adjustable lock ladders and secondary slack-cable protection.
  • Pneumatic safety-lock release and protected internal routing of the principal lifting/safety components where specified.
  • Approach ramps / rear wheel stops and runway rails for compatible heavy-duty accessories.

Options

  • Compatible heavy-duty rolling bridge jack(s), correctly capacity-matched to the exact lift and vehicle application.
  • Truck/frame adapter sets for compatible rolling jacks where required.
  • Drive-through ramp configuration and model-compatible runway accessories where available.
  • Airline kit / workshop air supply for pneumatic lock release and rolling-jack operation where required.

Workshop fit

BendPak HDS27 is rated to 12,247 kg. Key published dimensions in this brief include overall width 3,899 mm, overall length 7,944 mm, runway length 6,490 mm, width between columns 3,391 mm, drive-through clearance 2,769 mm and maximum lifting height 1,765 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raisedvehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability. AUSTRALIAN CONFIGURATION CHECK: Do not present this model as locally stocked, immediately available or technically final for Australia until Michael/Genesis confirms the exact supplied revision/configuration. The page may be built in staging so the catalogue is ready.

Frequently asked questions

What is the HDS27 lifting capacity?
The current BendPak manufacturer rating is 12,247 kg.
It is aimed at commercial trucks, buses, municipal vehicles and other heavy fleet equipment that fit the published runway, wheelbase, axle-load and clearance limits.
Compatible heavy-duty rolling bridge jacks can provide wheel-off access. The bridge-jack capacity, adapters and air supply must be matched to the vehicle and lift.
The current Genesis page contains several older/different values. This brief uses the current BendPak manufacturer geometry and requires final Australian configuration confirmation before publication.
A lift of this size requires careful checking of building/bay dimensions, foundations, vehicle axle loads, services, compressed air, electrical supply, unloading/assembly access and the current installation manual.
