BendPak MDS-6LP

2,722 kg open-centre mid-rise scissor lift with four hydraulic cylinders, pneumatic lock release and adjustable platform spacing for professional service bays.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak MDS-6LP

2,722 kg Open-Centre Mid-Rise Scissor Lift

2,722 kg open-centre mid-rise scissor lift with four hydraulic cylinders, pneumatic lock release and adjustable platform spacing for professional service bays.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
2,722 kg
Rated capacity
Open-centre mid-rise
Configuration
1,118 mm
Maximum lifting height
127 mm
Lowered / installation profile

Product overview

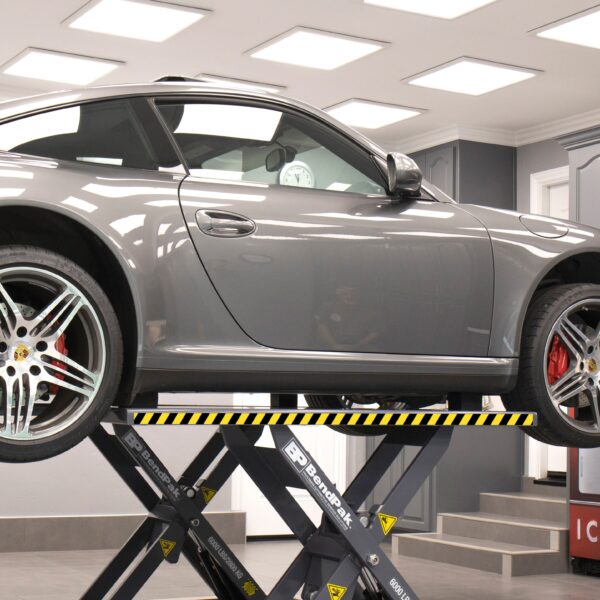

The BendPak MDS-6LP is a fixed mid-rise scissor lift for workshops that want more working height than a low-rise lift while keeping the centre of the vehicle comparatively accessible. Twin platform assemblies sit either side of the centreline, creating useful access for wheel, brake, suspension and inspection work. Four hydraulic cylinders and a flow-divider arrangement support controlled platform movement, while pneumatic lock release lets the operator disengage the mechanical safety system from the control position. The adjustable platform spacing helps the installation suit different vehicle tracks and workshop layouts.

Key features

  • 2,722 kg rated lifting capacity
  • Open-centre mid-rise platform layout
  • 1,118 mm published maximum lifting height
  • Four hydraulic cylinders for balanced platform movement
  • Automatic solid-steel safety locks
  • Push-button pneumatic lock release
  • Four published locking heights
  • Adjustable width between platforms: 1,016-1,168 mm
  • Low 127 mm surface-mount profile
  • Compatible MDS extended-ramp accessory available on current BendPak range

Detail photography

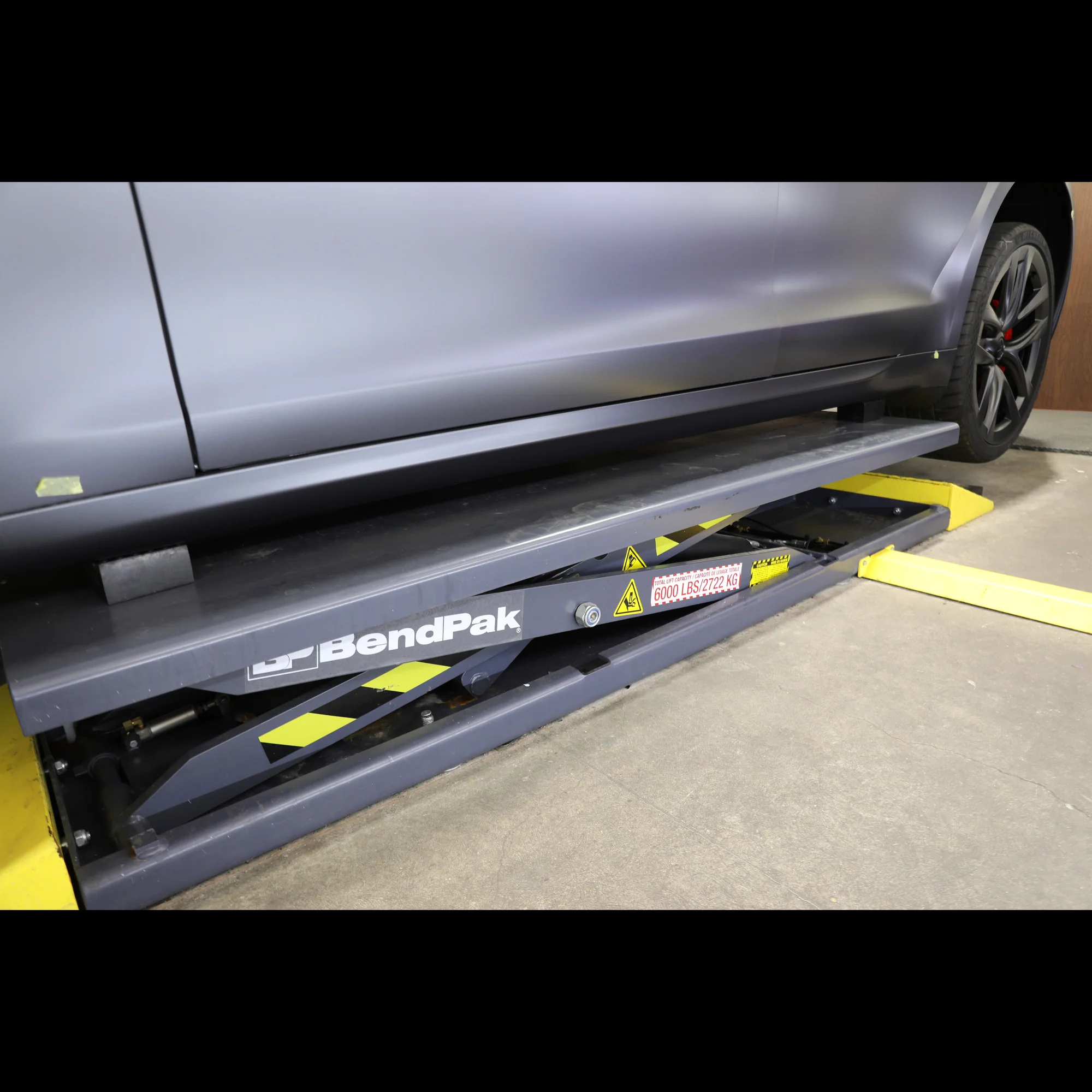

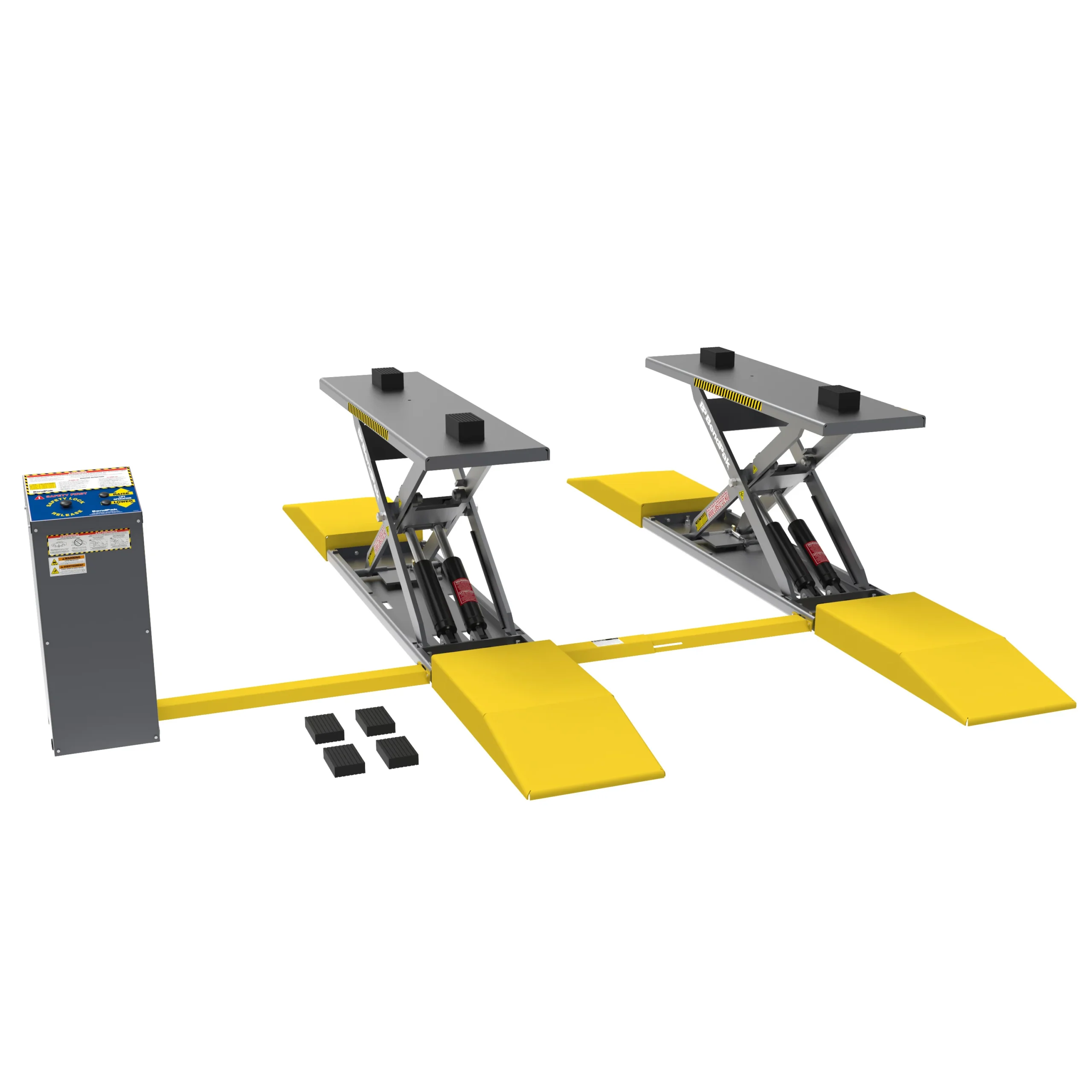

Open-centre platform arrangement

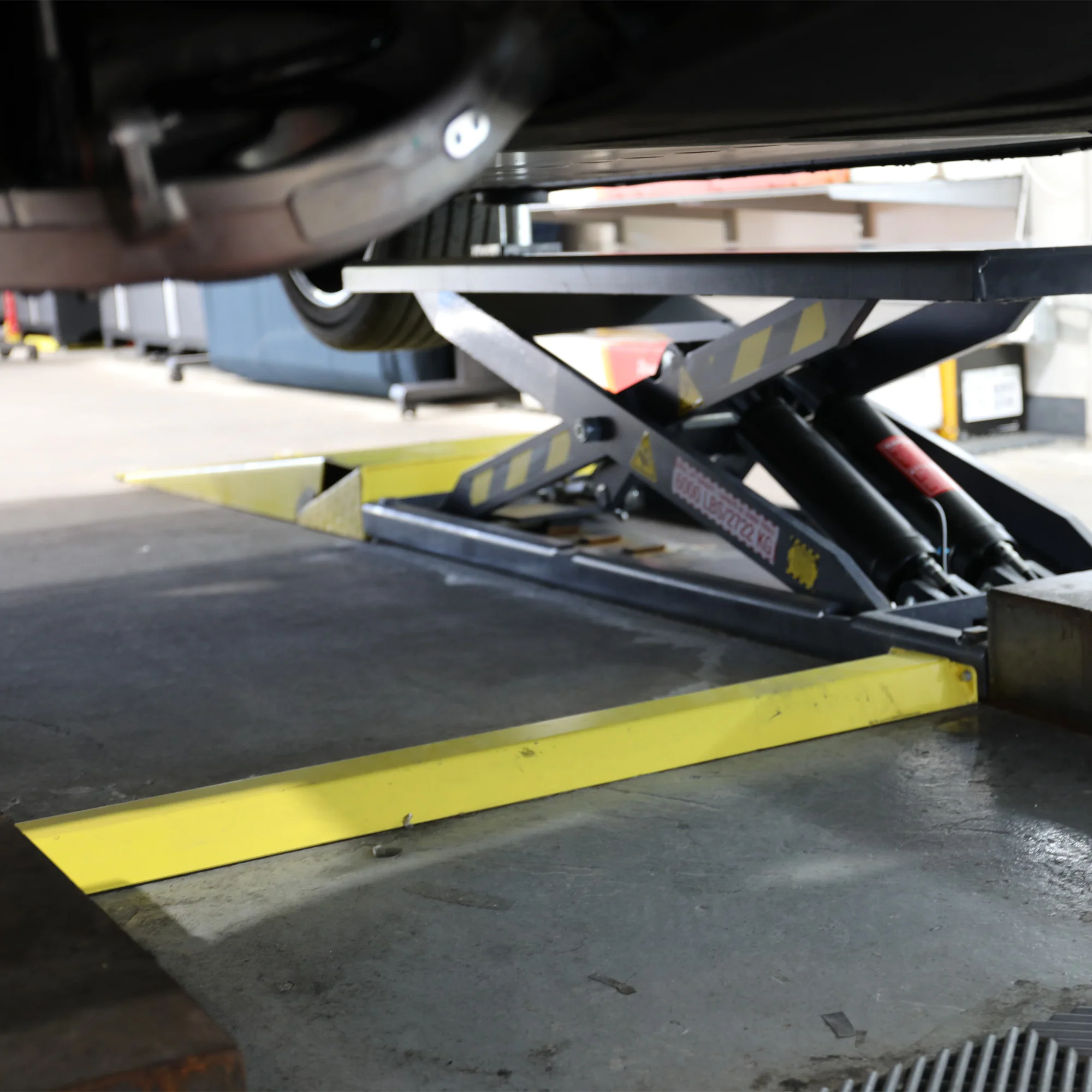

Four-cylinder hydraulic layout
Mechanical safety-lock bars

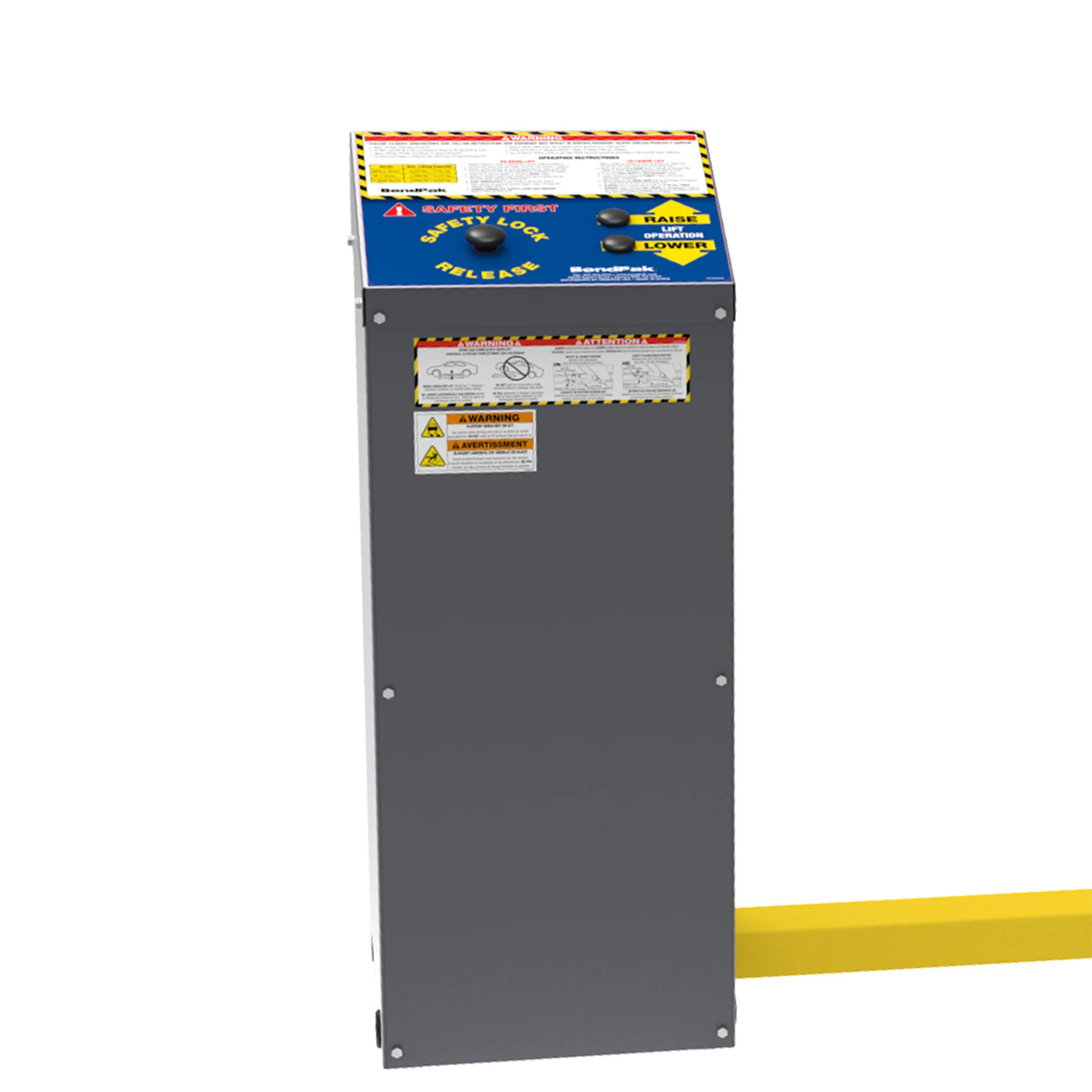

Pneumatic lock-release cylinders and control

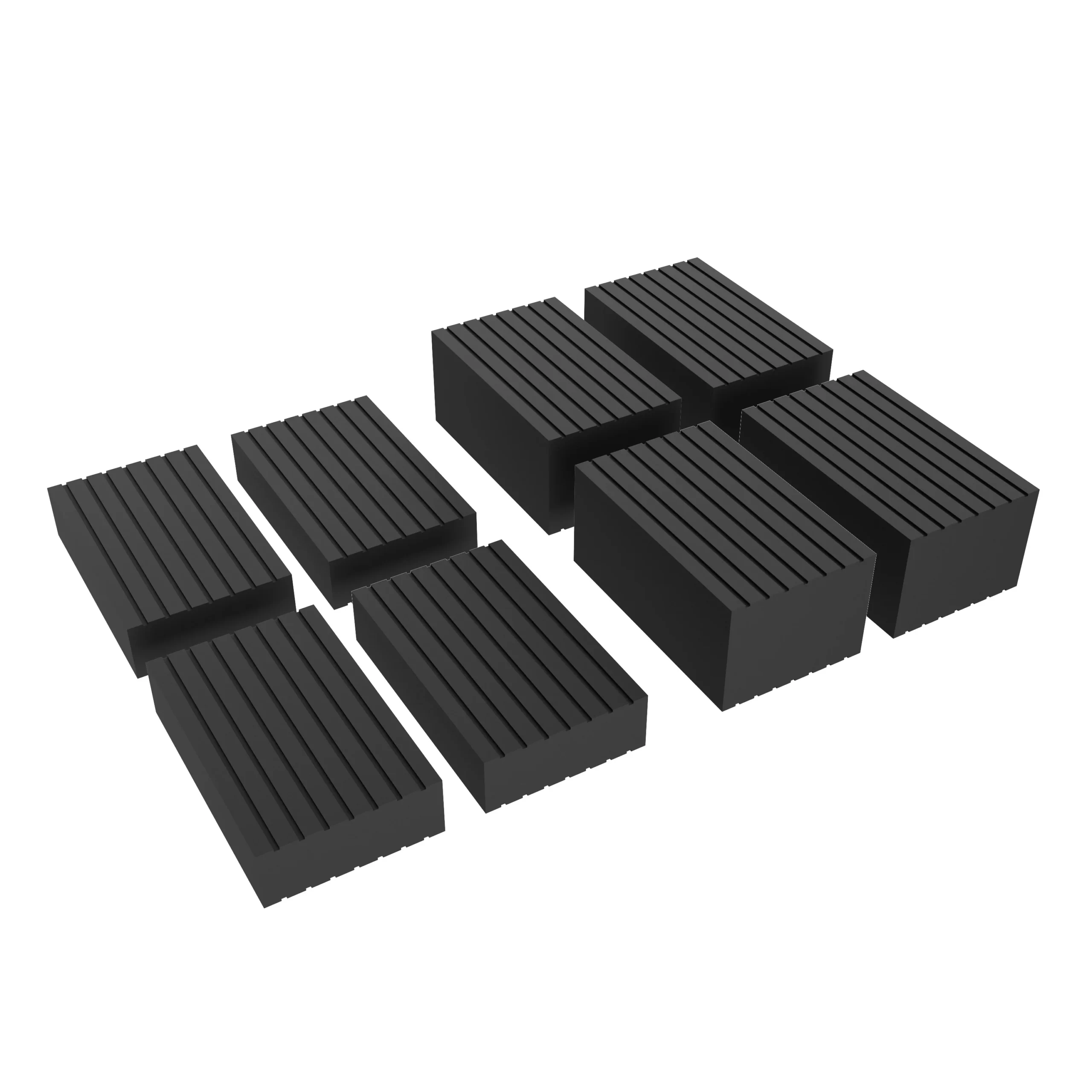

Platform/contact surfaces and vehicle blocks
Adjustable platform spacing
Approach ramp arrangement
Zerk grease points / pivot areas where shown

Ideal for

Tyre and suspension workshops, mechanical service bays, detailing/bodywork facilities, dealership service departments and workshops wanting a fixed mid-rise lift with improved access through the centre of the vehicle.

Specifications

Specifications

Details

Capacity
2,722 kg
Configuration
Open-centre mid-rise scissor lift
Rise class
Mid-rise
Maximum lifting height
1,118 mm
Installation type
Surface-mount

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak MDS-6LP
BendPak SKU
5175226
Rated lifting capacity
2,722 kg
Rise class
2,722 kg
Configuration
Open-centre mid-rise scissor lift
Installation type
Surface-mount
Maximum lifting height
1,118 mm
Maximum height with blocks / adapters
1,168 mm
Lowered / floor profile
127 mm
Published lifting time
35 seconds
Published locking positions
610 / 762 / 889 / 991 mm
Platform / pad dimensions
Approx. 1,702 x 483 mm per platform
Overall / working length
Approx. 2,352 mm overall
Platform spacing / width reference
Width between platforms 1,016-1,168 mm
Width between platforms
1,016-1,168 mm
Motor
1.5 HP
Electrical configuration
Current US page: 208-230 V, 60 Hz, 1-phase. Confirm Australiansupplied voltage/frequency before publication.
Air / pneumatic requirement
Pneumatic lock release; current BendPak material specifies minimum 50 psi / 10 CFM air source for lock-release system.
Shipping / supplied-revision reference
Approx. 735 kg on current manufacturer page; verify Australian supplied revision.
Australian publication rule
Confirm exact Genesis/Iron Lift Australian supplied revision, electrical configuration, manuals and availability before live publication.

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Twin MDS-6LP platform/scissor assemblies.
  • Four-cylinder hydraulic lifting system with flow-divider arrangement.
  • Mechanical safety-lock bars with multiple working positions.
  • Pneumatic lock-release system and control arrangement.
  • Vehicle contact blocks/pads supplied with the exact Australian configuration.

Options

  • BendPak MDS extended ramp set where confirmed compatible and required.
  • Additional approved vehicle blocks/adapters for compatible applications.
  • Replacement hydraulic, pneumatic, lock and pivot service parts.
  • Installation/commissioning including air, electrical and recessed/floor planning where applicable.

Workshop fit

BendPak MDS-6LP is rated to 2,722 kg and is a open-centre mid-rise scissor lift. Published maximum lift is 1,118 mm; installation profile is surface-mount. Confirm vehicle mass and weight distribution, manufacturer-approved lifting points, ground clearance, track/wheelbase or pad reach, workshop bay dimensions, overhead clearance at full lift, electrical and pneumatic services, and the exact slab/foundation/recess requirements before supply or installation. Rated capacity alone does not establish vehicle suitability. For flush-mount products, the site recess/pit must be built to the exact supplied manual/revision – never from a generic scissor-lift drawing.

Frequently asked questions

What is the advantage of the open-centre layout?
It leaves more access through the middle of the vehicle than a solid-platform lift, which is useful for inspections and many service tasks.
The current BendPak manufacturer page lists 1,118 mm maximum lifting height, or about 1,168 mm with the listed blocks. The Australian supplied revision should be confirmed before publication.
Yes for the pneumatic safety-lock release system. Current BendPak material specifies a minimum 50 psi / 10 CFM air source; final site requirements should be confirmed at installation.
It has longer platforms than many compact mid-rise lifts, but vehicle suitability still depends on the actual lift-point spread, track, mass and weight distribution. The MDS-6EXT is the more extended option in this family.
Yes. Iron Lift can quote installation/commissioning, servicing, repairs and spare parts subject to the actual site and location.
