BendPak SP-7XEF

Flush-mounted 3,175 kg full-rise scissor lift delivering near two-post working height without permanent side columns in the service bay.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak SP-7XEF

3,175 kg Flush-Mount Full-Rise Scissor Lift

Flush-mounted 3,175 kg full-rise scissor lift delivering near two-post working height without permanent side columns in the service bay.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
3,175 kg
Rated capacity
Flush full-rise
Configuration
1,791 mm
Maximum lifting height
Flush-mount
Lowered / installation profile

Product overview

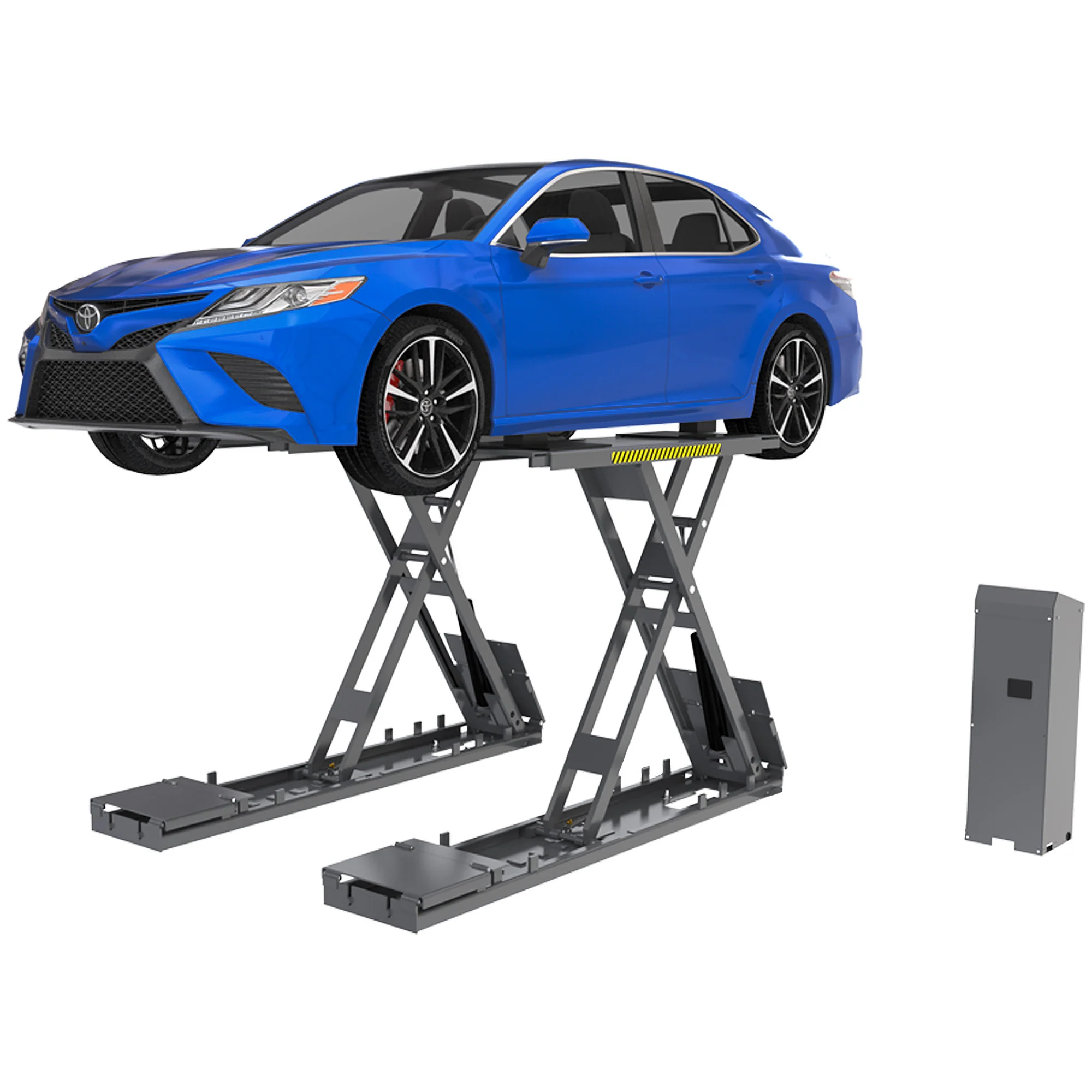

The BendPak SP-7XEF brings full-rise working height into a recessed scissor-lift format that sits flush with the workshop floor when lowered. With no tall side columns, technicians retain open access around doors and vehicle sides while the open-centre arrangement supports substantial underbody access. A 1,791 mm published lifting height brings the vehicle to a practical standing service position, and pneumatic safety locks provide mechanical support at working height. For premium workshop fit-outs where floor appearance, side access and full-rise capability all matter, the SP-7XEF is one of the strongest scissor options in the BendPak range.

Key features

  • 3,175 kg rated lifting capacity
  • Full-rise 1,791 mm published lifting height
  • Recessed flush-mount installation
  • Open-centre vehicle access without side columns
  • Dual hydraulic-cylinder design
  • Pneumatic mechanical safety locks
  • Two published locking positions
  • Heavy formed base/scissor structure
  • Zerk-fitted pivot points for serviceability
  • Compatible BendPak SP-7X arm kit available as an option

Detail photography

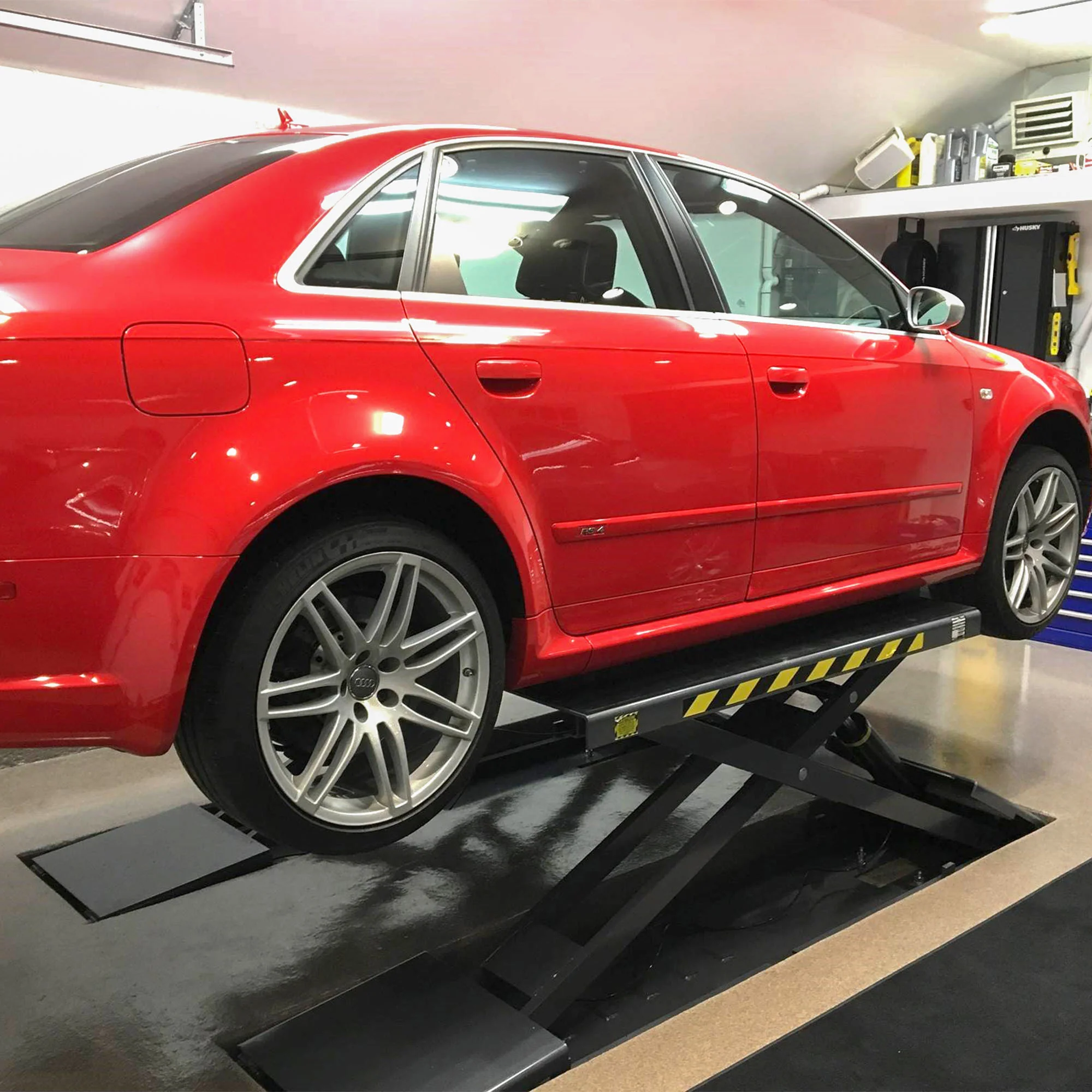

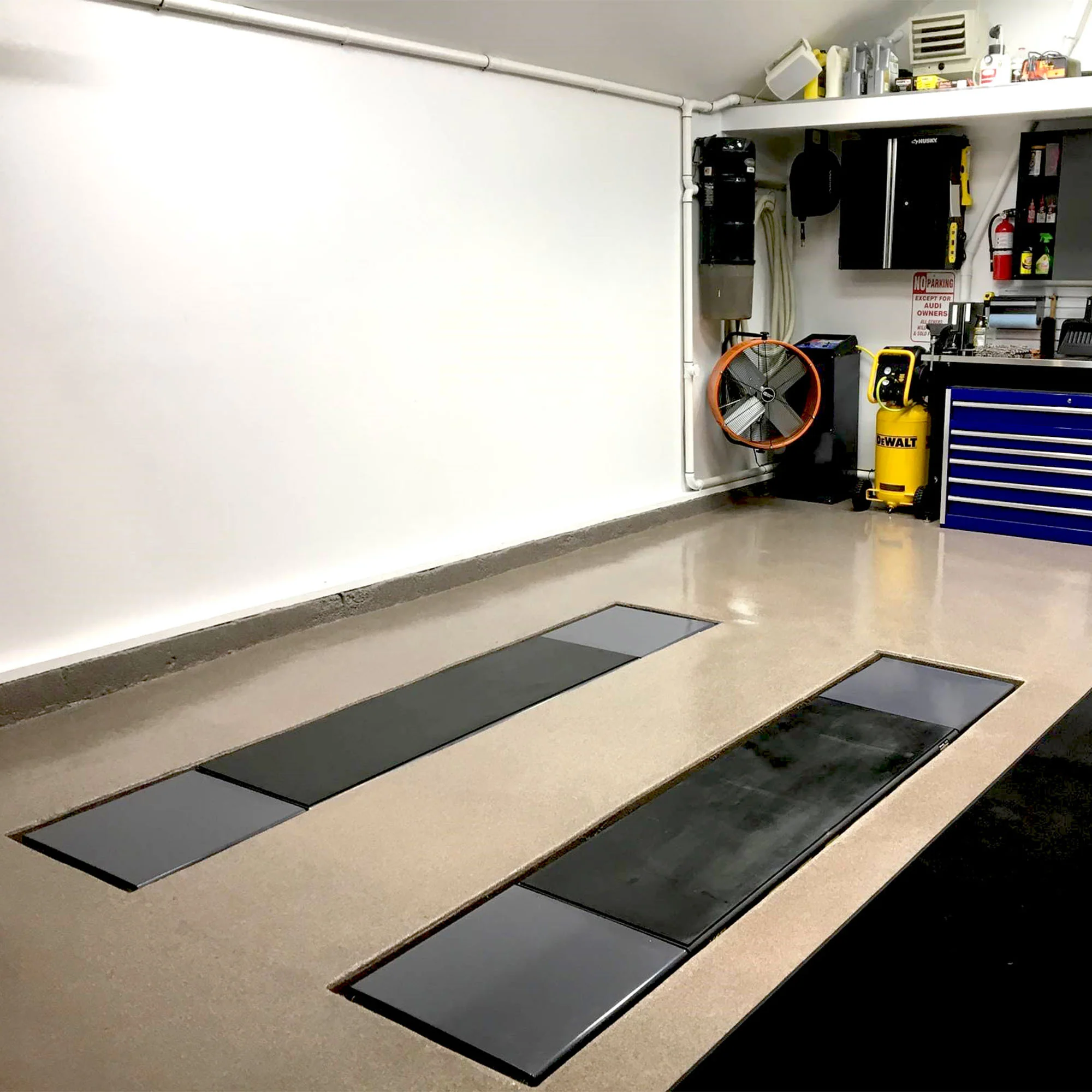

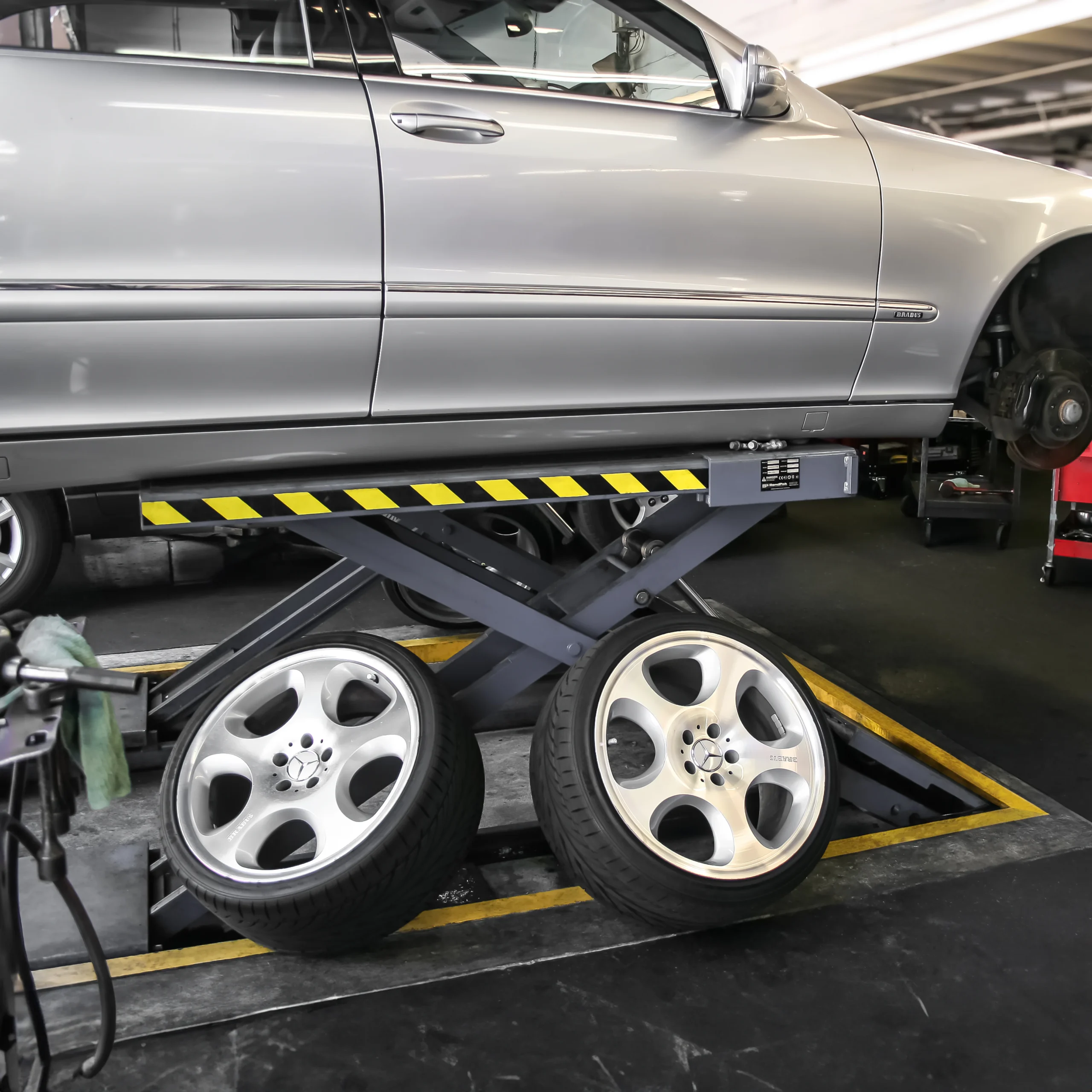

Flush floor installation / recessed pit arrangement

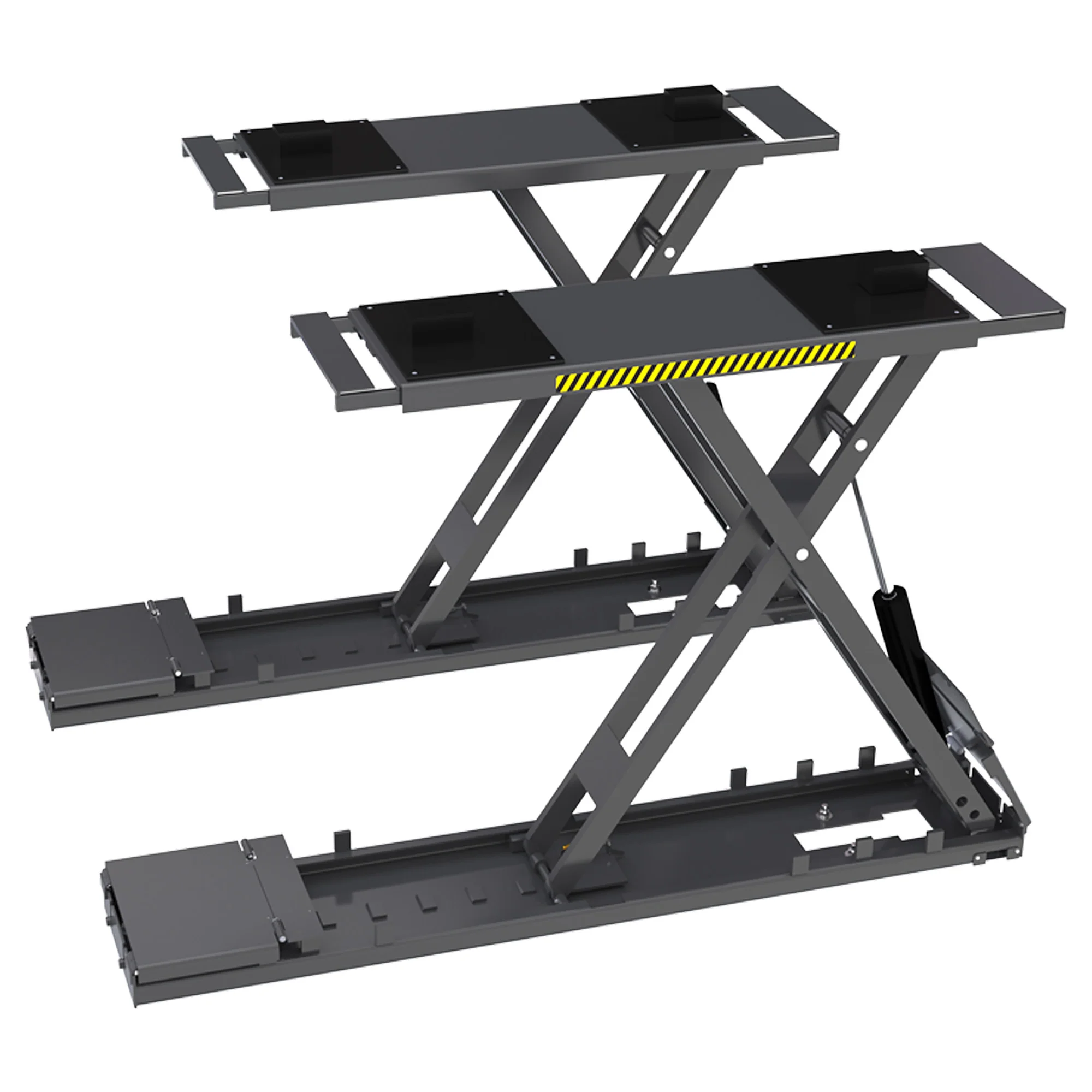

Full-rise scissor geometry

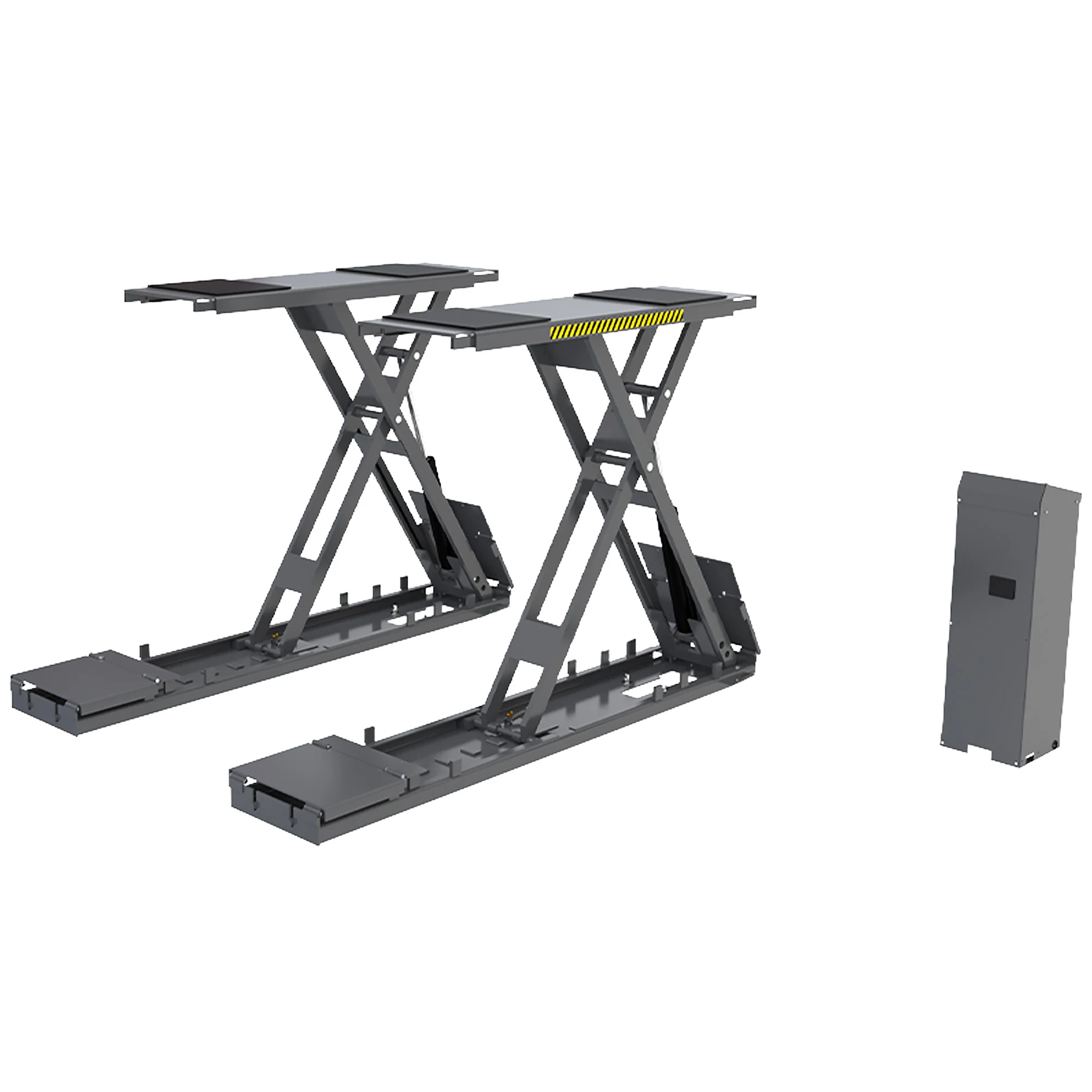

Twin platform and open-centre layout
Hydraulic cylinder arrangement
Pneumatic safety locks and release
Hardened pivot pins / grease fittings
Control console
Optional SP-7X lift-arm kit setup

Ideal for

High-end mechanical workshops, dealerships, performance shops, service centres and new fit-outs wanting full standing-height lifting with clean floor integration and unobstructed access around the sides of the vehicle.

Specifications

Specifications

Details

Capacity
3,175 kg
Configuration
Flush-mount full-rise open-centre scissor lift
Rise class
Full-rise
Maximum lifting height
1,791 mm
Installation type
Recessed / flush-mount

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak SP-7XEF
BendPak SKU
5175425
Rated lifting capacity
3,175 kg
Rise class
3,175 kg
Configuration
Flush-mount full-rise open-centre scissor lift
Installation type
Recessed / flush-mount
Maximum lifting height
1,791 mm
Maximum height with blocks / adapters
Vehicle contact pads / optional arm kit alter pick-up height; follow exact manual rather than adding to published platform rise
Lowered / floor profile
Flush with finished floor when correctly recessed; physical pit/recess dimensions per installation manual
Published lifting time
60 seconds
Published locking positions
622 mm / 1,772 mm published lock positions
Platform / pad dimensions
Approx. 1,588 x 552 mm per platform
Overall / working length
Approx. 2,692 mm overall platform/lift length
Platform spacing / width reference
Width between platforms approx. 965 mm
Width between platforms
965 mm
Motor
1.5 HP
Electrical configuration
Current US page: 208-240 V, 50/60 Hz, 1-phase. Confirm Australiansupplied electrical configuration before publication.
Air / pneumatic requirement
Pneumatic safety locks/release; confirm Australian workshop-air requirement from exact manual/configuration.
Shipping / supplied-revision reference
Approx. 1,031 kg on current manufacturer page; verify Australian supplied revision.
Australian publication rule
Confirm exact Genesis/Iron Lift Australian supplied revision, electrical configuration, manuals and availability before live publication.

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • SP-7XEF twin full-rise scissor/platform assemblies.
  • Hydraulic lifting cylinders and power/control unit for the exact supplied model.
  • Pneumatic mechanical safety-lock system.
  • Vehicle contact pads/ramp elements supplied with the exact Australian configuration.
  • Model-specific installation, operation and safety documentation.

Options

  • BendPak SP-7X lift-arm kit where compatible with the intended vehicles.
  • Approved vehicle contact pads/adapters and model-specific accessory sets.
  • Replacement hydraulic, pneumatic, lock and pivot service components.
  • Recess/pit design review, installation, commissioning and operator handover.

Workshop fit

BendPak SP-7XEF is rated to 3,175 kg and is a flush-mount full-rise open-centre scissor lift. Published maximum lift is 1,791 mm; installation profile is recessed / flush-mount. Confirm vehicle mass and weight distribution, manufacturer-approved lifting points, ground clearance, track/wheelbase or pad reach, workshop bay dimensions, overhead clearance at full lift, electrical and pneumatic services, and the exact slab/foundation/recess requirements before supply or installation. Rated capacity alone does not establish vehicle suitability. For flush-mount products, the site recess/pit must be built to the exact supplied manual/revision – never from a generic scissor-lift drawing.

Frequently asked questions

Is the SP-7XEF a full-rise lift?
Yes. The current BendPak manufacturer page lists a maximum lifting height of 1,791 mm, providing substantially more working height than the mid-rise MDS range.
The SP-7XEF is the flush-mount recessed version, while SP-7XE is designed for surface mounting.
Yes. The flush-mount design requires a correctly engineered/recessed installation. Pit dimensions, drainage/floor details and structural requirements must follow the exact installation manual and site design.
The current Genesis page title is SP-7XEF, but its visible table appears to contain 9,000-lb low-rise data. The Iron Lift brief therefore uses the current BendPak manufacturer SP-7XEF specifications and flags the discrepancy for confirmation.
Yes. This model should be treated as a planned installation project, with Iron Lift reviewing the site, recess, services, access and supplied configuration before commissioning.
