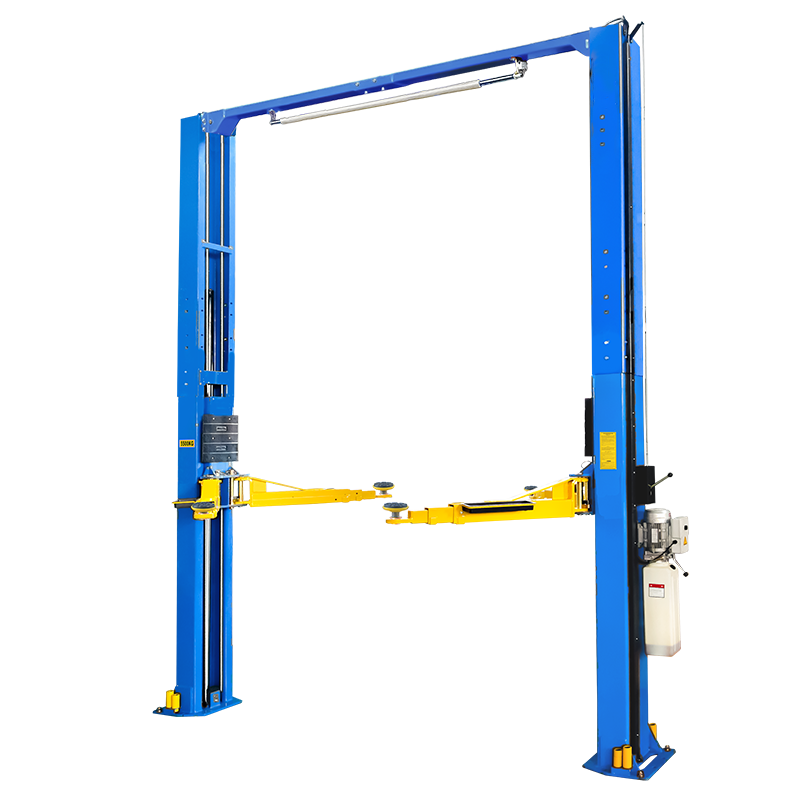

Iron Lift FORGE 55HD

5,500 kg heavy-duty clear-floor two-post hoist with 3,137 mm between columns, three height settings and four threestage arms for demanding workshop use.

Clear-floor two-post

Iron Lift FORGE 55HD

5,500 kg Clear-Floor Two-Post Hoist

5,500 kg heavy-duty clear-floor two-post hoist with 3,137 mm between columns, three height settings and four threestage arms for demanding workshop use.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
5,500 kg
Rated capacity
1,842-1,876 mm
Maximum lifting height
3,829 mm
Overall width
2,787 mm
Drive-through clearance

Product overview

The Iron Lift FORGE 55HD combines 5,500 kg lifting capacity with a wide, tall clear-floor structure for workshops servicing heavier vans, fleet vehicles and light trucks within a two-post format. The 3,137 mm spacing between columns gives a generous working envelope, while three overhead-height settings allow the structure to be matched to the workshop building. Four three-stage arms provide reach across different lifting-point positions. Heavy-duty rubber pads, saddle adapters and both 3-inch and 6-inch extensions are included, giving the workshop more flexibility when moving between different chassis and lifting-point heights.

Key features

Detail photography

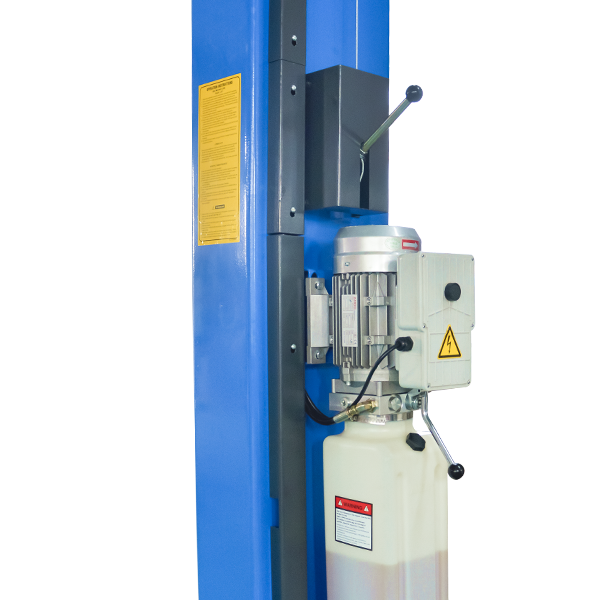

Single-point safety lock release

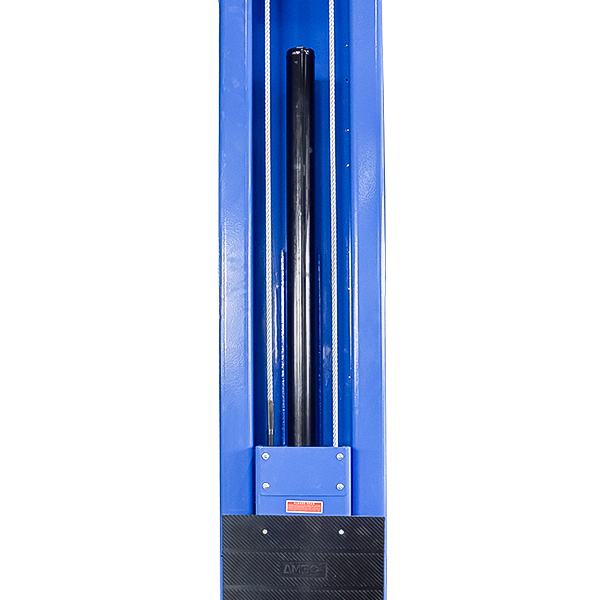

Direct-drive hydraulic cylinder Direct-drive hydraulic cylinder

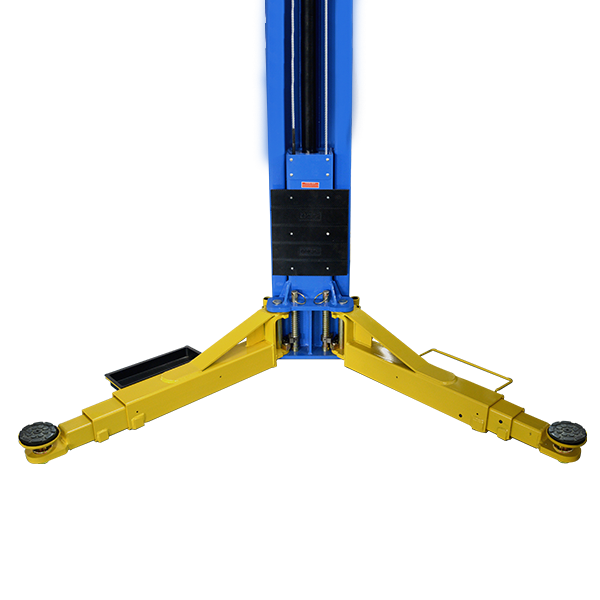

Super-asymmetric arm set

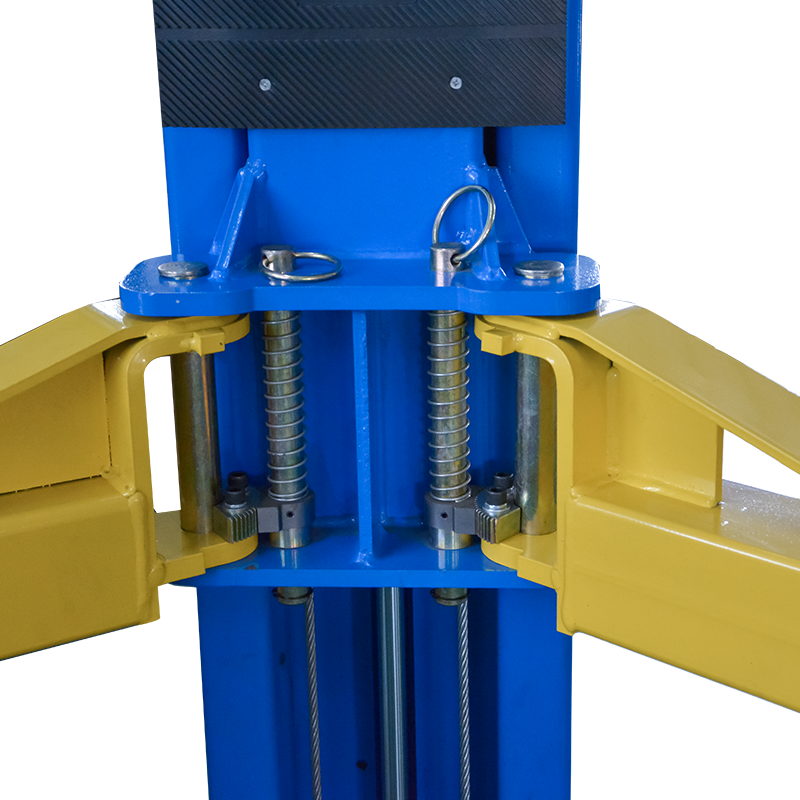

Automatic arm restraints

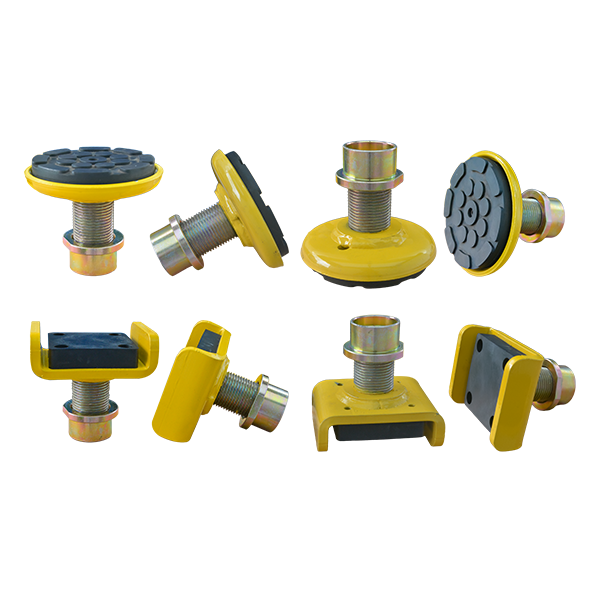

Double-screw pad and 3″ adapters
Optional saddle / frame adapter

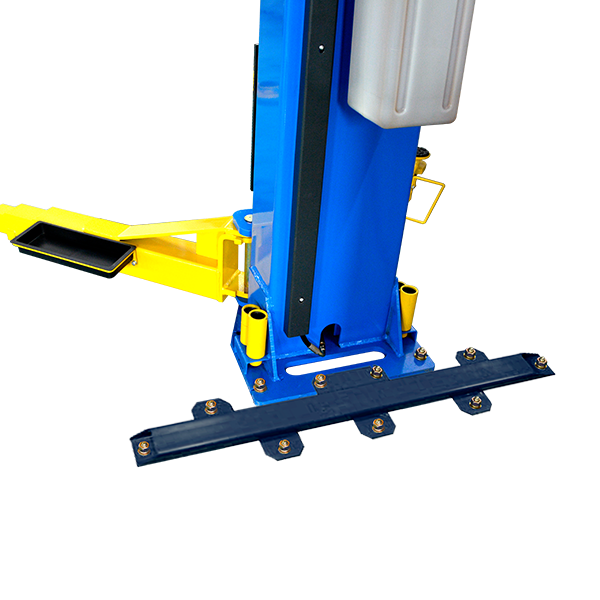

Toe guards and tool trays
Carriage and slider detail
Iron Lift FORGE 68HD

Ideal for

Commercial vehicle workshops, fleet maintenance operations, 4WD specialists and service facilities handling heavier vans and light trucks that remain suitable for a two-post chassis-contact lift.

Specifications

Specifications

Details

Capacity
5,500 kg
Configuration
Heavy-duty clear-floor two-post, direct-drive
Overall height
4,420 / 4,725 / 5,030 mm
Overall width
3,829 mm
Drive-through clearance
2,787 mm
Motor
3.0 HP

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
5,500 kg
Configuration
Heavy-duty clear-floor two-post
Lifting time
Approx. 69 seconds
Maximum lifting height – without extension adapter
Approx. 69 seconds
Maximum lifting height – with extension adapters
2,071-2,105 mm
Maximum lock height – without extension adapter
1,792-1,826 mm
Maximum lock height – with extension adapters
2,021-2,055 mm
Minimum pad height
115 mm
Overall height
4,420 / 4,725 / 5,030 mm
Overall width
3,829 mm
Drive-through clearance
2,787 mm
Width between columns
3,137 mm
Arm configuration
Four three-stage arms
Gross weight
Approx. 1,088 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

Overall height can be configured at 4,420 mm, 4,725 mm or 5,030 mm, so ceiling and overhead-service clearances must be checked carefully. Overall width is 3,829 mm, drive-through clearance is 2,787 mm and width between columns is 3,137 mm. Minimum pad height is 115 mm. Confirm the vehicle chassis lifting points, weight distribution, arm reach, adapter choice, slab and anchoring, electrical supply and unloading access before installation.

Frequently asked questions

What type of workshop is the FORGE 55HD intended for?
It is aimed at workshops servicing heavier vans, fleet vehicles and light trucks that are suitable for a two-post lift and require up to 5,500 kg rated capacity.
Three overall-height settings are listed: 4,420 mm, 4,725 mm and 5,030 mm.
Heavy-duty rubber pads, saddle adapters and both 3-inch and 6-inch extensions are listed as standard.
Yes. An extra-long three-stage arm kit is listed as an option. It should only be selected after checking the target vehicles and lifting points.
No. Vehicle mass is only one limit. Weight distribution, approved lifting points, dimensions and arm reach must all be suitable.
