Iron Lift MONARCH 40

4,000 kg four-post workshop hoist with adjustable runway spacing, a compact 3,208 mm overall width and clear drive-on access for everyday service work.

Clear-floor two-post

Iron Lift MONARCH 40

4,000 kg General-Service Four-Post Hoist

4,000 kg four-post workshop hoist with adjustable runway spacing, a compact 3,208 mm overall width and clear drive-on access for everyday service work.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,000 kg
Rated capacity
1,890 mm
Maximum lifting height
3,208 mm
Overall width
3,208 mm
Drive-through clearance

Product overview

The Iron Lift MONARCH 40 is the entry point to the MONARCH professional four-post range. It combines a 4,000 kg rated capacity with drive-on convenience and an open centre area that keeps routine inspection and underbody work straightforward. Its 2,852 mm width between columns and stepless runway-width adjustment give workshops useful flexibility across different vehicle tracks. The 170 mm minimum runway height supports practical vehicle entry, while the 1,890 mm maximum lifting height provides a comfortable working range for day-to-day servicing. The MONARCH 40 is aimed at workshops that want a dedicated four-post service bay without stepping into the larger footprint or higher capacity of the heavy-duty models.

Key features

Detail photography

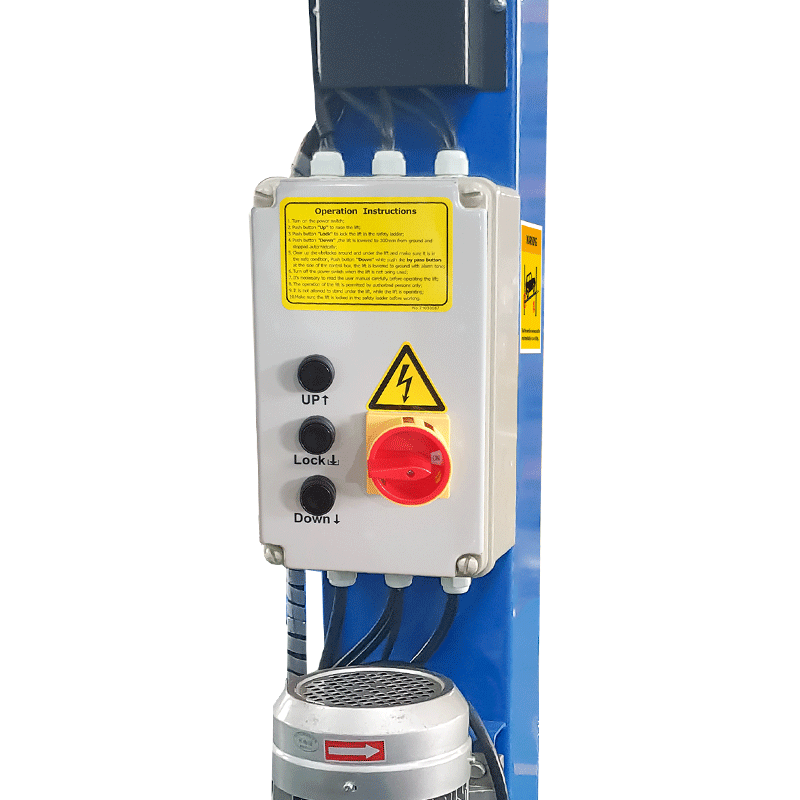

UP / LOCK / DOWN control unit

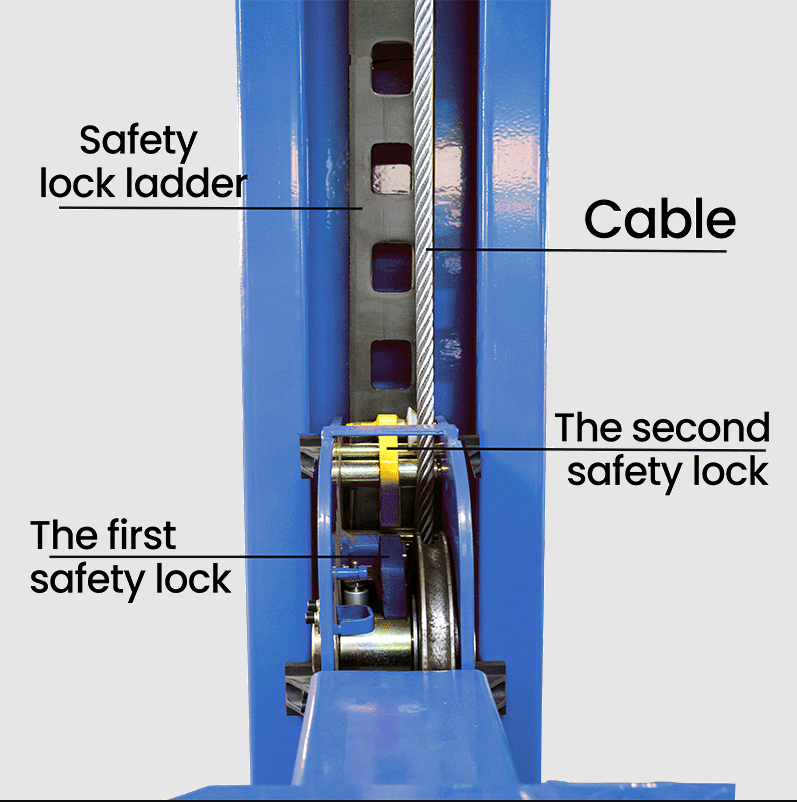

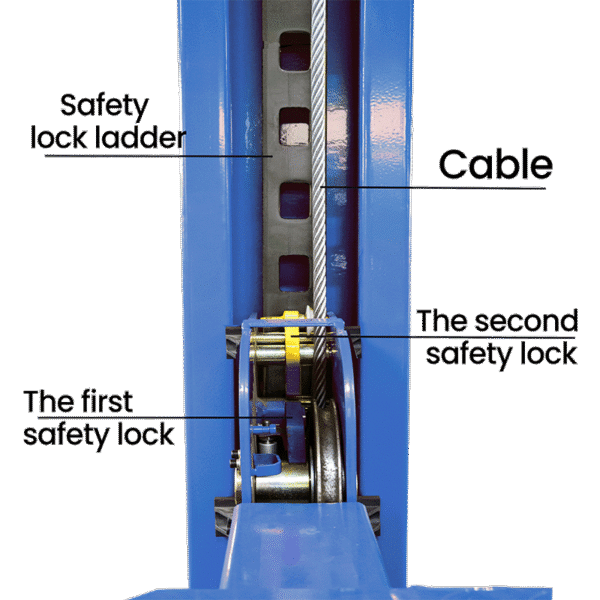

Mechanical safety-lock system and air-release detail

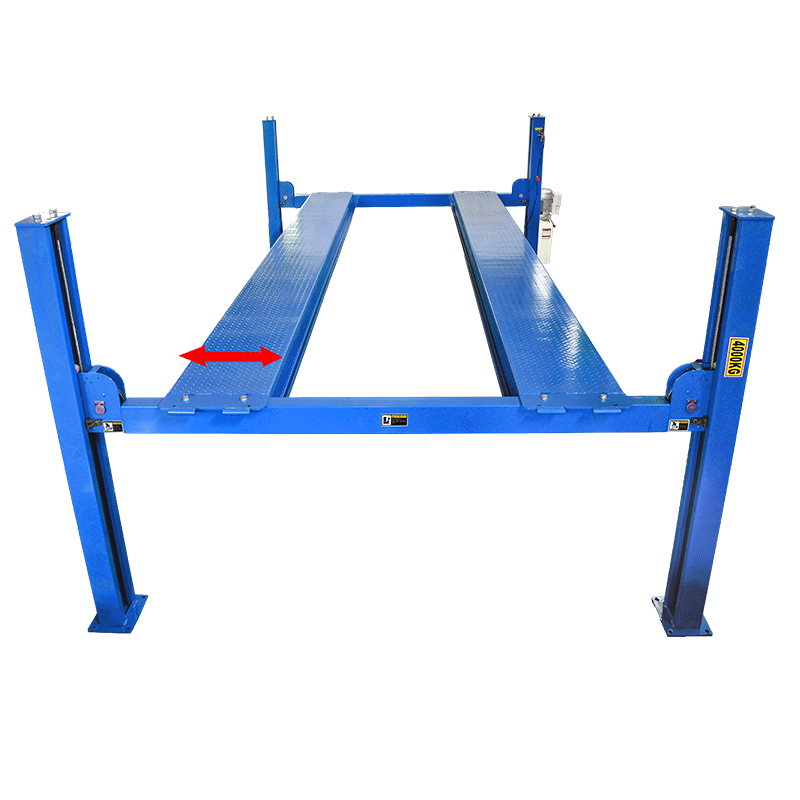

Runway/platform surface and runway-adjustment detail

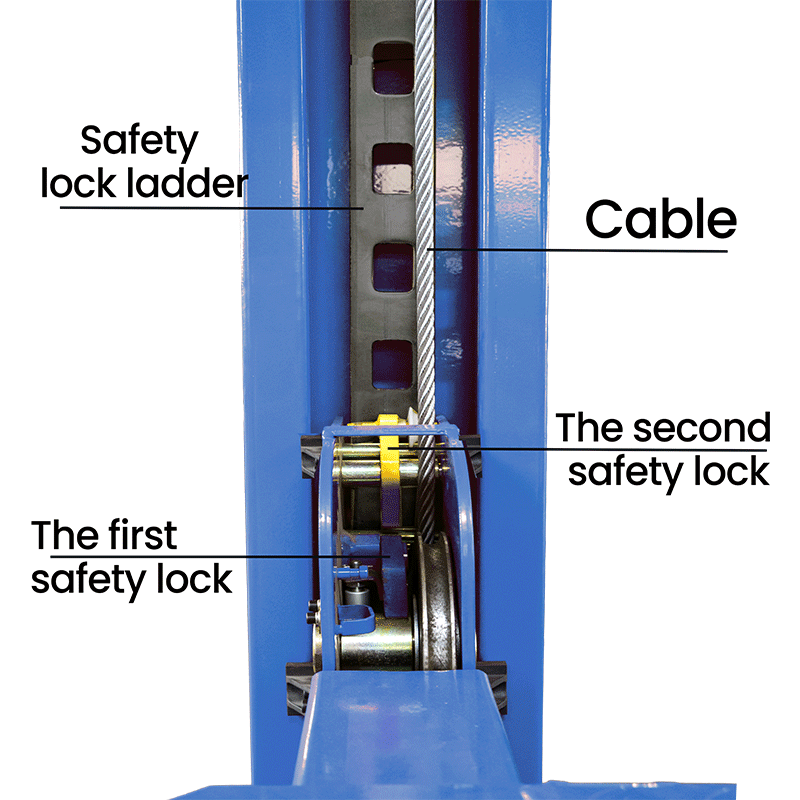

Crossbeam, cable and secondary safety detail
Hydraulic power unit / lifting-system detail
Rolling-jack rail / wheel-free service accessory interface where shown

Ideal for

General mechanical workshops, inspection bays, fleet service facilities, tyre and suspension workshops and workshop fit-outs needing a versatile 4,000 kg drive-on service hoist.

Specifications

Specifications

Details

Capacity
4,000 kg
Configuration
General-service four-post
Overall height
2,185 mm
Overall width
3,208 mm
Drive-through clearance
2,498 mm
Motor
3.0 HP

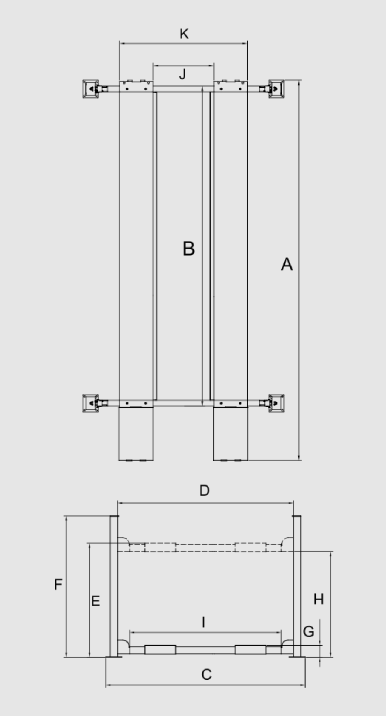

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
4,000 kg
Lifting time
45 sec
Overall length including ramps
5,512 mm
Outside edge of crossbeams
5,512 mm
Overall width
3,208 mm
Width between columns
2,852 mm
Maximum lifting height
1,890 mm
Maximum lock height
1,810 mm
Overall height
2,185 mm
Minimum runway height
170 mm
Maximum underneath height
1,750 mm
Maximum underneath lock height
1,670 mm
Drive-through clearance
2,498 mm
Width between runways
900-1,292 mm adjustable; nominal 1,100 mm
Outside edge of runways
1,916-2,308 mm adjustable; nominal 2,116 mm
Gross weight
Approx. 911 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

Allow for a 3,208 mm overall width, 5,512 mm overall length including ramps and 2,185 mm column height. Confirm vehicle track width against the adjustable runway range, overall vehicle mass, axle loading, wheelbase, workshop access, slab and anchoring requirements, power supply and compressed-air availability before installation. Rated capacity alone does not determine vehicle suitability.

Frequently asked questions

What makes MONARCH 40 a good general workshop four-post?
It combines 4,000 kg capacity with adjustable runway spacing and a relatively compact footprint, making it a practical drive-on service platform for mixed workshop work.
Yes. The source specification gives a stepless adjustable width between runways from 900 mm to 1,292 mm.
Optional rolling jacks can be added for wheel-free brake, tyre and suspension work.

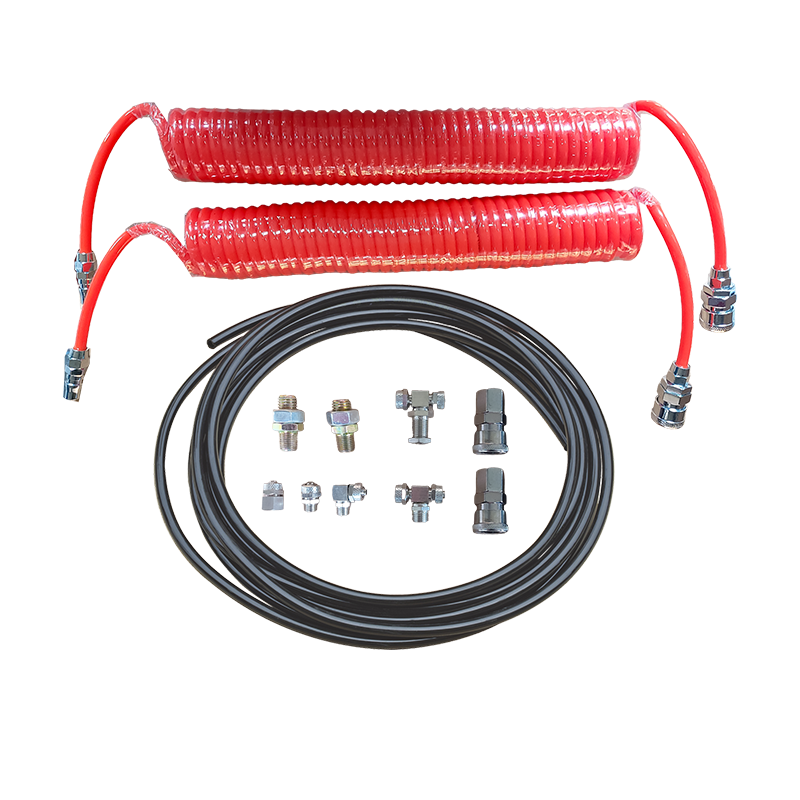

The standard safety-lock release is air operated, and the optional rolling-jack air-line kit also requires a suitable compressed-air supply.
Yes. Installation and commissioning can be quoted after the site, slab, electrical supply, air supply and access conditions are checked.
