Iron Lift MONARCH 55A

5,500 kg heavy-duty alignment four-post hoist with 4,822 mm runways and adjustable platform spacing for cars, vans and heavier commercial vehicles.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
Iron Lift MONARCH 55A
Iron Lift MONARCH 55A

Clear-floor two-post

Iron Lift MONARCH 55A

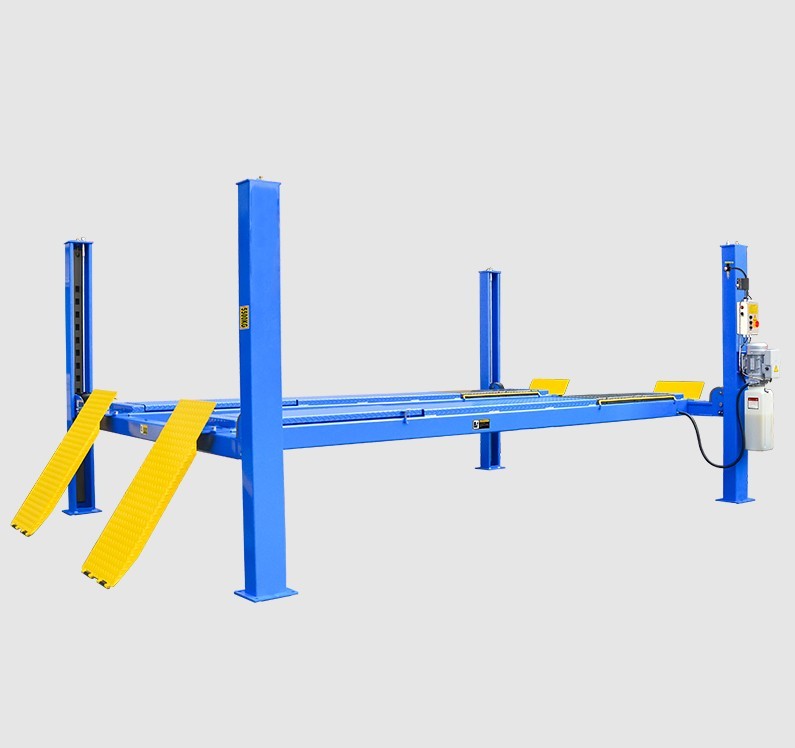

5,500 kg Heavy-duty Alignment Four-Post Hoist

5,500 kg heavy-duty alignment four-post hoist with 4,822 mm
runways and adjustable platform spacing for cars, vans and heavier commercial vehicles.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
5,500 kg
Rated capacity
4,822 mm
Runway length
1,940 mm
Maximum lifting height
2,498 mm
Drive-through clearance

Product overview

The Iron Lift MONARCH 55A extends the MONARCH alignment range to 5,500 kg. It is built for workshops that need alignment capability across a wider mix of vehicle weights, including heavier vans and light-commercial vehicles. Its 4,822 mm runways provide more wheelbase coverage than the 4,000 and 4,500 kg alignment models, while the adjustable 965-1,292 mm runway spacing retains flexibility for different vehicle tracks. The published four-wheel alignment range reaches 4,224 mm. MONARCH 55A is a strong mid-heavy alignment platform for fleet, tyre, suspension and commercial service workshops that need more capacity without moving to the larger 6.5 tonne extended alignment system.

Key features

  • 5,500 kg rated lifting capacity
  • Heavy-duty alignment four-post configuration
  • 4,822 mm runway length
  • Adjustable runway spacing from 965 mm to 1,292 mm
  • Alignment wheelbase coverage up to 4,224 mm for four-wheel alignment
  • Adjustable turnplate pockets
  • Integrated non-slip diamond runways
  • Mechanical safety locks with air-operated release
  • Primary safety locks and cable-slack protection
  • Optional 2,800 kg rolling jacks

Detail photography

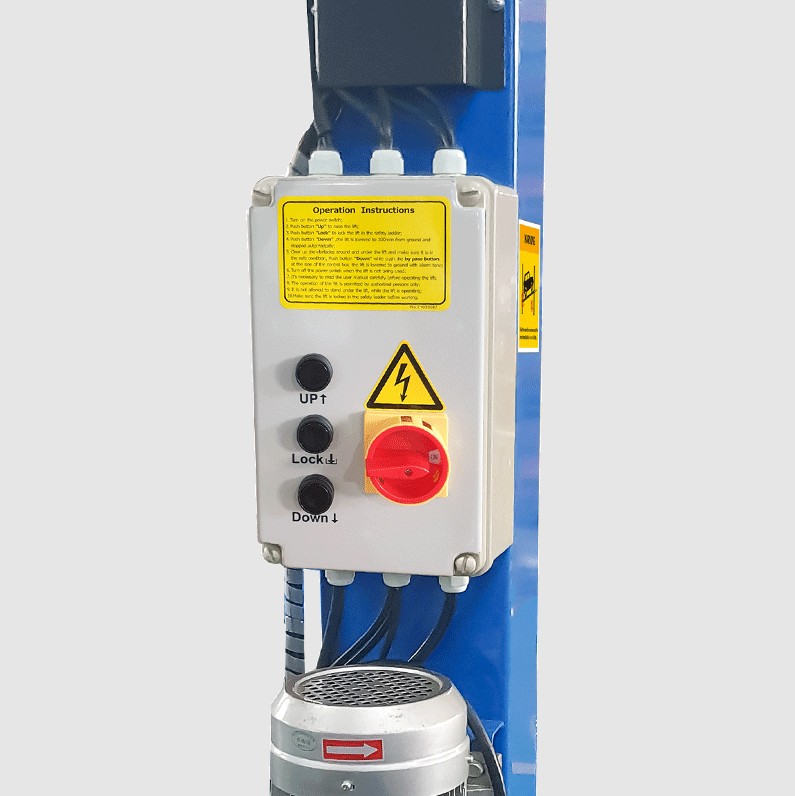

UP / LOCK / DOWN control unit
Mechanical safety-lock system and air-release detail

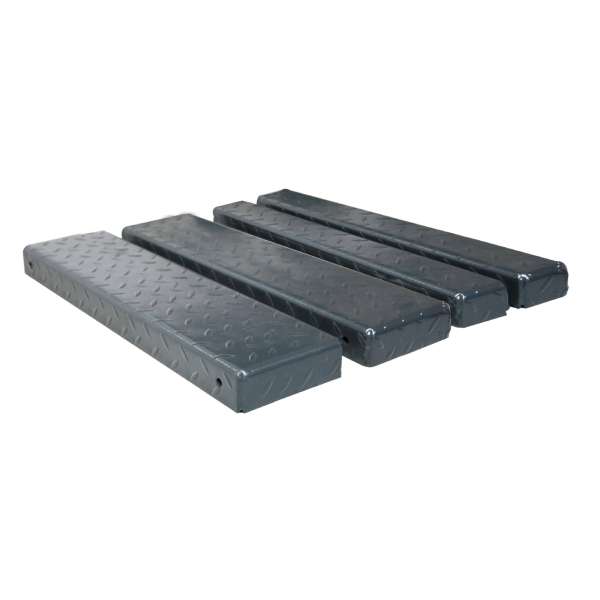

Runway/platform surface and runway-adjustment detail
Crossbeam, cable and secondary safety detail
Hydraulic power unit / lifting-system detail

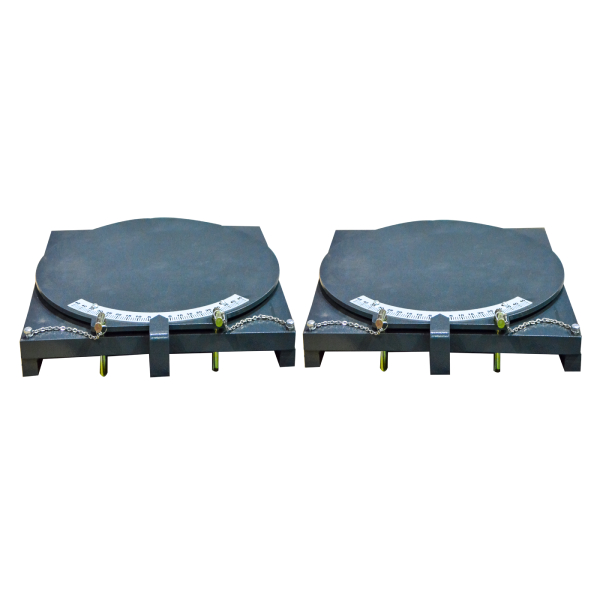

Adjustable turnplate pocket / turnplate area
Rear slip-plate / alignment runway detail where shown
Heavy-duty runway / crossbeam construction detail

Ideal for

Fleet alignment facilities, truck and van service workshops, tyre and suspension specialists, dealerships and mixed commercial workshops needing 5.5 tonne alignment capacity.

Specifications

Specifications

Details

Capacity
5,500 kg
Configuration
Heavy-duty alignment four-post
Overall height
2,185 mm
Overall width
3,208 mm
Drive-through clearance
2,498 mm
Motor
3.0 HP

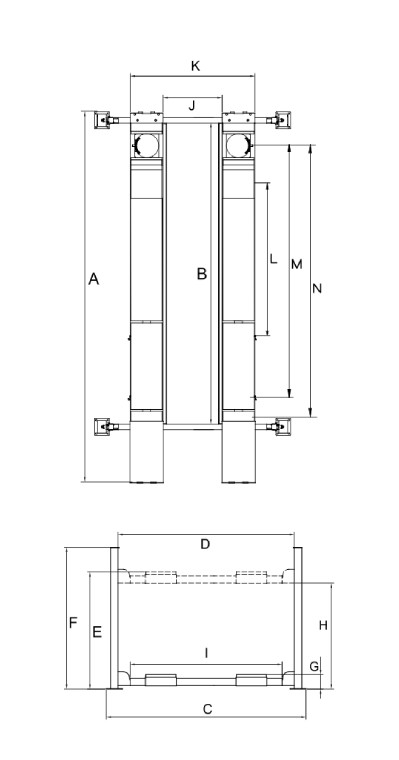

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
5,500 kg
Lifting time
63 sec
Overall length including ramps
6,092 mm
Runway length
6,092 mm
Overall width
3,208 mm
Width between columns
2,852 mm
Maximum lifting height
1,940 mm
Maximum lock height
1,860 mm
Overall height
2,185 mm
Minimum runway height
220 mm
Maximum underneath height
1,750 mm
Maximum underneath lock height
1,670 mm
Drive-through clearance
2,498 mm
Width between runways
965-1,292 mm adjustable; nominal 1,100 mm
Outside edge of runways
1,981-2,308 mm adjustable; nominal 2,116 mm
Minimum four-wheel alignment wheelbase
2,076 mm
Maximum four-wheel alignment wheelbase
4,224 mm
Maximum two-wheel alignment wheelbase
4,258 mm
Gross weight
Approx. 1,343 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Heavy-duty alignment four-post structure and 4,822 mm runways
  • Adjustable turnplate pockets / blocks
  • Integrated non-slip diamond runway surfaces
  • Electric UP / LOCK / DOWN controls
  • Mechanical safety locks with air-operated release

Options

  • 660 mm platform extension kit - source kit 41203
  • Adjustable blocks for extension kit - source kit 40905
  • Turnplate set - source kit 40101
  • Air-line kit for rolling-jack use - source kit 40102

Workshop fit

Check the intended commercial vehicles against the 5,500 kg total capacity, axle loads, wheelbase and track-width envelope. The published four-wheel alignment range is 2,076-4,224 mm. Allow for 6,092 mm overall length including ramps and sufficient working room around the alignment machine. Confirm slab/anchoring, electrical and air requirements plus delivery access before installation.

Frequently asked questions

What does MONARCH 55A add over MONARCH 45A?
It increases capacity to 5,500 kg and extends the alignment runway/wheelbase envelope for heavier and longer vehicles.
4,224 mm.
Yes. The published range is 965 mm to 1,292 mm.
Yes. Compatible 2,800 kg manual and pneumatic-hydraulic rolling jacks are listed.
No. Capacity is only one part of suitability; axle loading, wheelbase, track width, tyre position and alignment geometry all need to be checked.
