BendPak 9APF

4,082 kg open-top two-post hoist for workshops that need professional lifting capability without an overhead beam across the bay.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

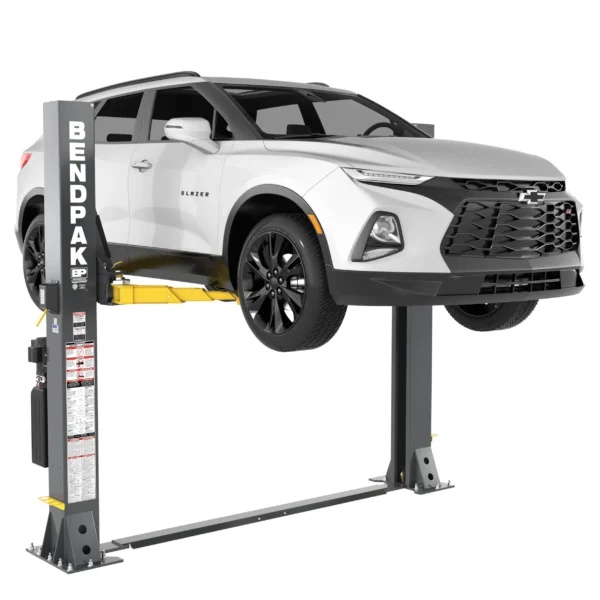

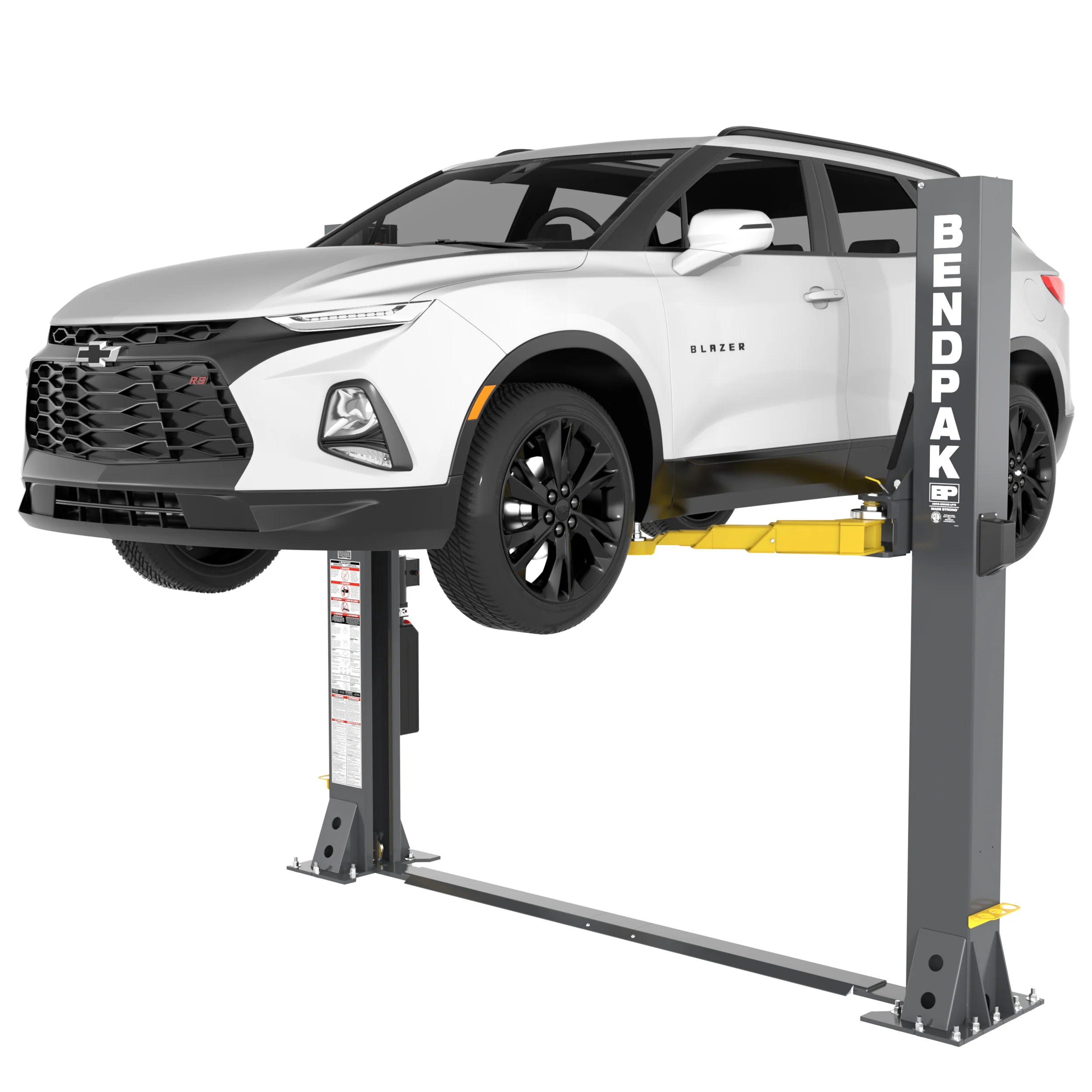

BendPak 9APF

4,082 kg Low-Ceiling Floorplate Two-Post Hoist

4,082 kg open-top two-post hoist for workshops that need professional lifting capability without an overhead beam across the bay.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,082 kg
Rated capacity
Floorplate / open-top two-post
Configuration
3,124 mm
Overall height
2,311 mm or 2,565 mm
Drive-through clearance

Product overview

The BendPak 9APF is a floorplate two-post hoist aimed at workshops where ceiling height or overhead obstructions make a conventional clearfloor top beam impractical. Its open-top layout leaves the area above the vehicle unobstructed, while the low floorplate protects the hydraulic and equalisation routing between the columns. Triple-telescoping AP-series arms and Bi-Metric positioning support a broad vehicle mix, including low passenger vehicles, SUVs, utes and light trucks, subject to rated capacity, arm reach and approved lifting points.

Key features

  • 4,082 kg rated lifting capacity
  • Open-top design with no overhead beam across the vehicle
  • Low 38 mm floorplate protecting lines and cables
  • Triple-telescoping AP-series lifting arms

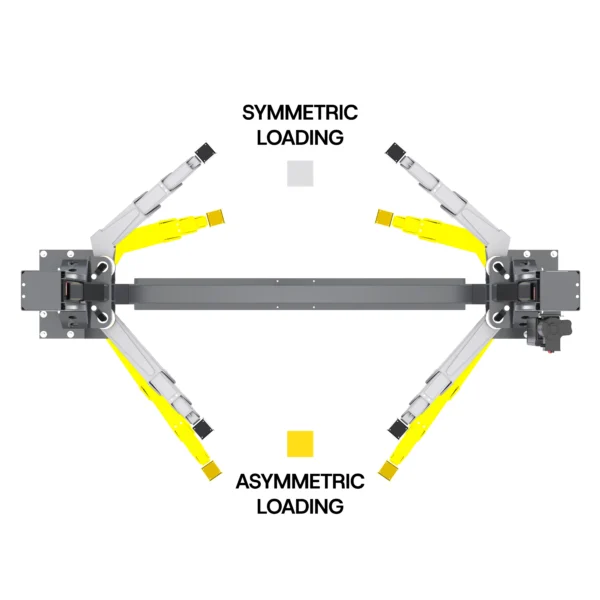

  • Symmetric or asymmetric Bi-Metric vehicle positioning
  • Automatic swing-arm restraints
  • Dual hydraulic cylinders
  • Multiple mechanical safety-lock positions with single-point release
  • Adjustable narrow/wide column installation
  • Minimum pad height of 114 mm

Detail photography

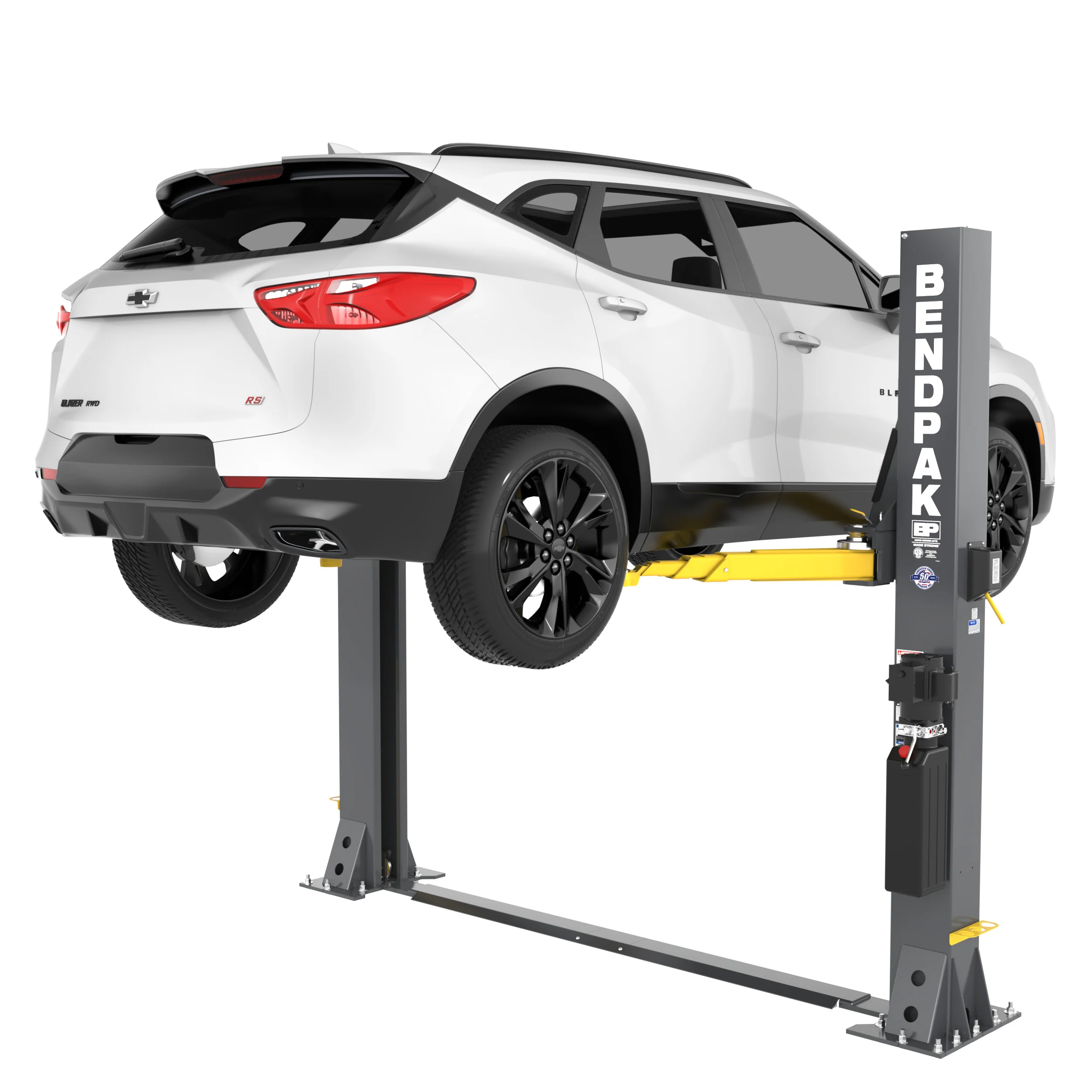

Open-top column arrangement
38 mm floorplate and protected line routing
Triple-telescoping arms

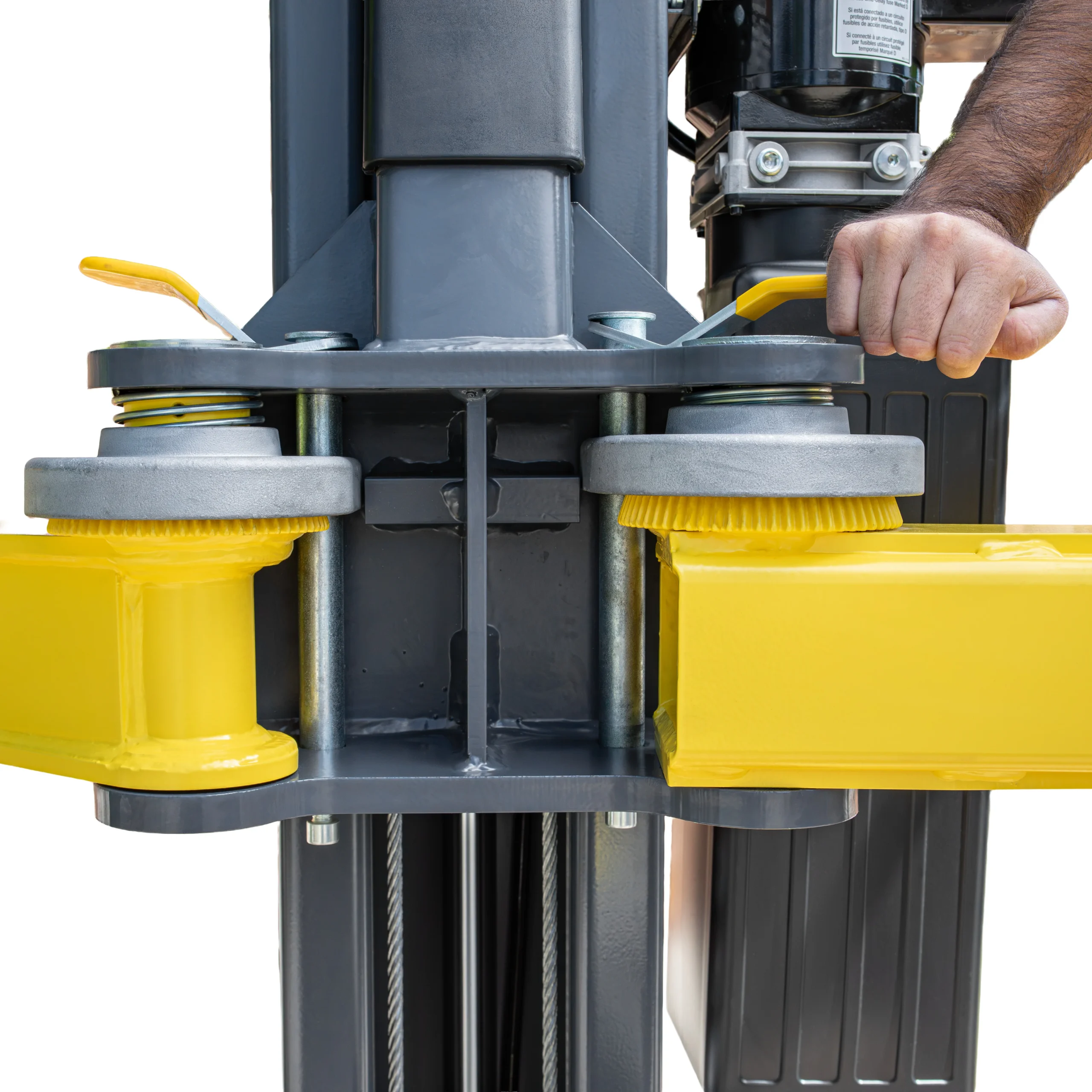

ASARS arm-restraint mechanism

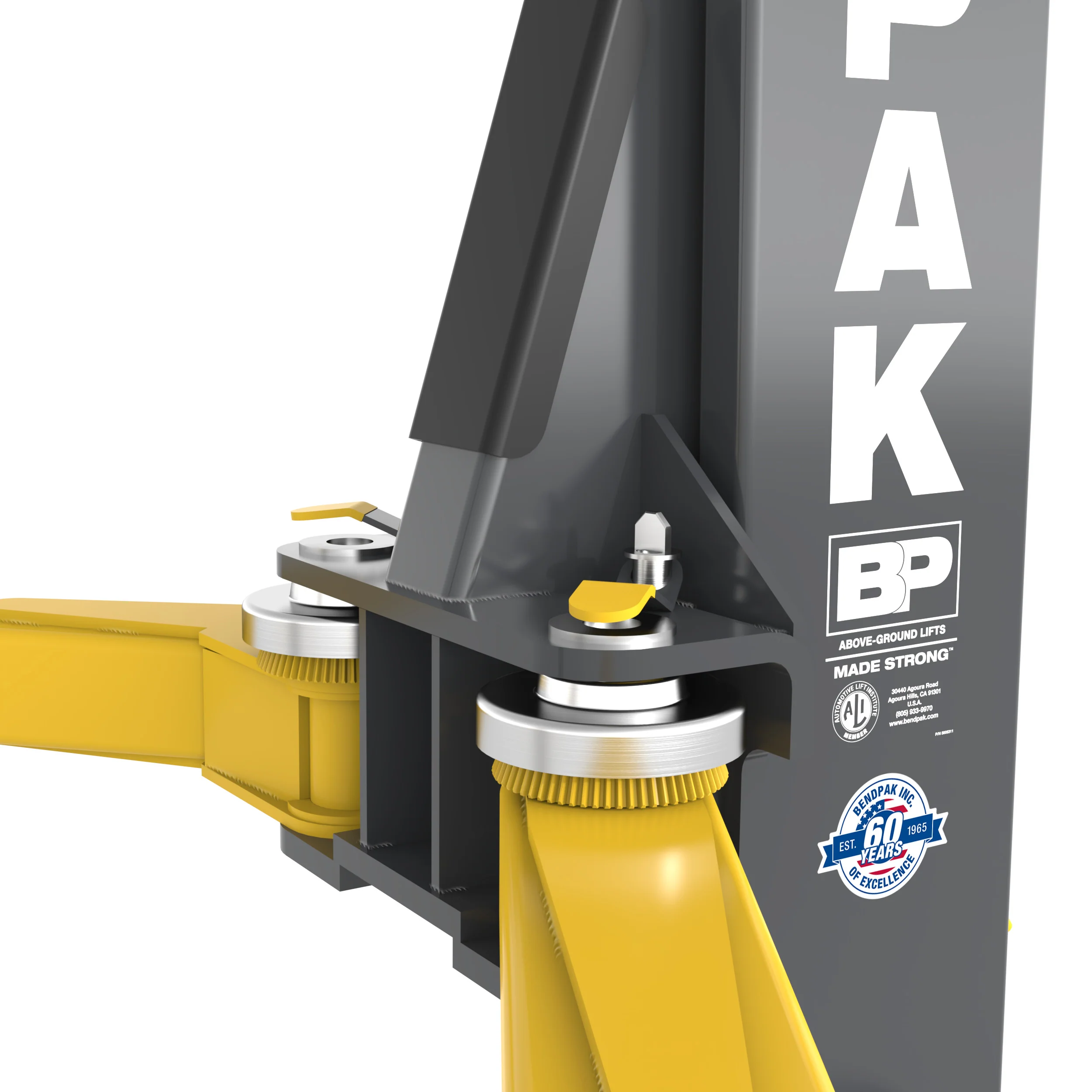

Adjustable screw-in pads

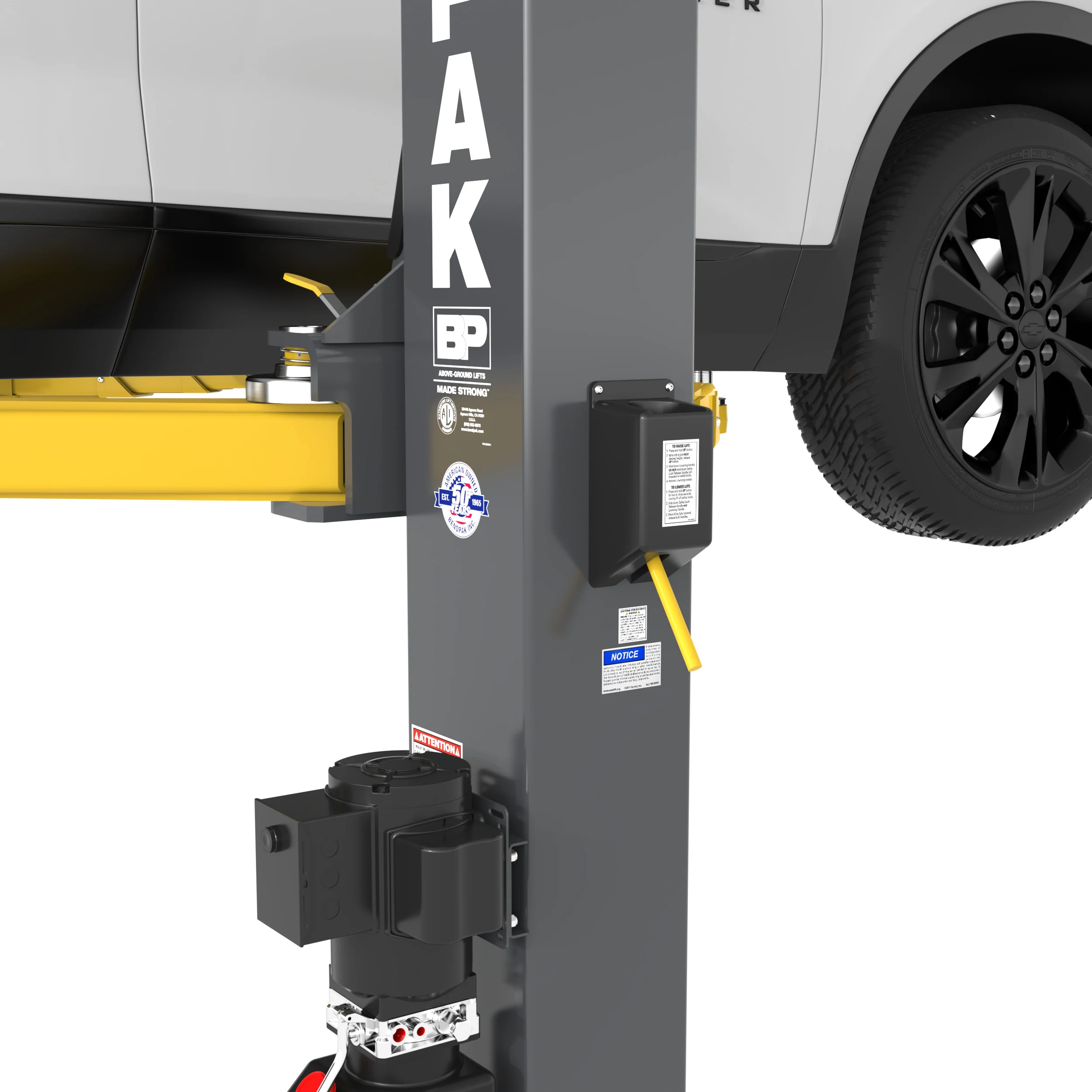

Safety-lock and hydraulic-cylinder details

Ideal for

Workshops with lower ceilings, overhead doors/services, roof-rack vehicles or mixed-height vehicle fleets that still require a permanent professional two-post bay.

Specifications

Specifications

Details

Capacity
4,082 kg
Configuration
Floorplate / open-top two-post
Overall height
3,124 mm
Overall width
3,454 mm or 3,708 mm
Drive-through clearance
2,311 mm or 2,565 mm

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak 9APF
BendPak SKU
5175617
Rated lifting capacity
4,082 kg
Maximum load per arm
4,082 kg
Configuration
Floorplate / open-top two-post
Rise
1,778 mm
Published lifting height
1,867 mm with pad
Minimum pad / lifting height
114 mm
Time to full rise
60 seconds
Overall height
3,124 mm
Overall width
3,454 mm or 3,708 mm
Width between / inside columns
2,750 mm or 3,004 mm
Drive-through clearance
2,311 mm or 2,565 mm
Front arm reach
565-1,207 mm
Rear arm reach
749-1,448 mm
Power unit
5 HP; Australian voltage/frequency to be confirmed before publication
Model-specific note
Floorplate 38 mm high x 241 mm wide

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Two-post floorplate hoist structure, columns and base plates for the exact model.
  • Model-specific lifting-arm assemblies and vehicle-contact pads/adapters supplied with the Australian package.
  • Hydraulic lifting system, power unit, equalisation system and safety-lock system.
  • Automatic Swing Arm Restraint System (ASARS) where specified for the exact model.
  • Protective floorplate/cover across the bay for hydraulic and equalisation routing.

Options

  • Compatible truck/van height adapters and frame-contact accessories approved for the exact model.
  • Pinch-weld pads/pucks, frame cradle pads and replacement contact-pad options where compatible.
  • Wheel spotting accessories and compatible workshop accessories where required.
  • Air/electric workstation or other column-mounted service accessories where compatible.

Workshop fit

BendPak 9APF is rated to 4,082 kg. Key published workshop dimensions in this brief include overall height 3,124 mm, overall width 3,454 mm or 3,708 mm, inside-column width 2,750 mm or 3,004 mm and drive-through clearance 2,311 mm or 2,565 mm. Confirm actual vehicle mass, individual arm loading, centre of gravity/weight distribution, manufacturer lifting points, arm reach, required pads/adapters, vehicle height, bay width, ceiling and overhead services, electrical supply, slab condition/strength/anchoring requirements, unloading access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability.

Frequently asked questions

Why choose a floorplate two-post hoist?
A floorplate model removes the overhead crossbeam, which can help where ceiling height or overhead services restrict a clearfloor installation.
The rated lifting capacity is 4,082 kg, with a published maximum of 1,021 kg per arm. Vehicle suitability still depends on correct lifting points and weight distribution.
The current published minimum height with pad is approximately 114 mm.
Yes. The manufacturer publishes two overall-width and drive-through configurations.
Iron Lift can quote installation, commissioning, servicing and parts support subject to site, location and supplier arrangements.
