Iron Lift FORGE 40A

4,000 kg clear-floor two-post hoist with flexible vehicle positioning for mixed workshop use, including cars, SUVs and light commercial vehicles.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

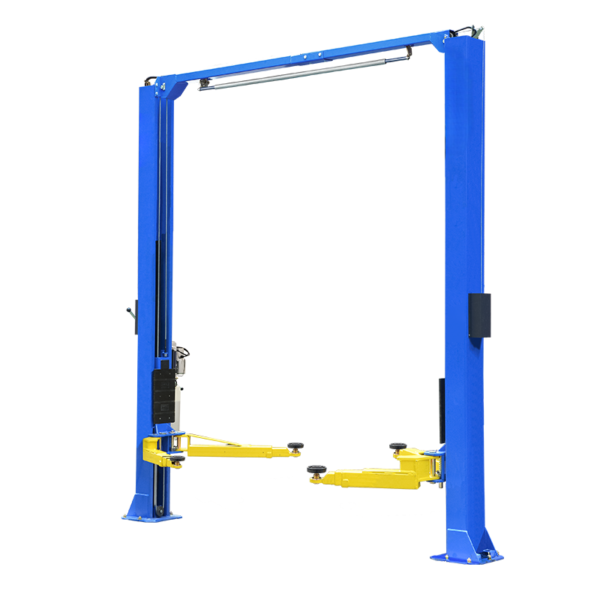

Iron Lift FORGE 40A

4,000 kg Clear-Floor Two-Post Hoist

4,000 kg clear-floor two-post hoist with flexible vehicle positioning for mixed workshop use, including cars, SUVs and light commercial vehicles.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,000 kg
Rated capacity
1,815-1,863 mm
Maximum lifting height
3,428 mm
Overall width
2,528 mm
Drive-through clearance

Product overview

The Iron Lift FORGE 40A is an everyday 4,000 kg two-post hoist built around flexibility in a busy general workshop. Its clearfloor layout keeps the centre of the bay open, while the arm geometry allows the vehicle to be positioned in either a conventional symmetric layout or an offset arrangement that can improve door access. For day-to-day servicing, the FORGE 40A combines a single-point lock release, direct-drive hydraulic lifting, automatic arm restraints and an overhead safety shut-off. Two installation-height settings give the installer some flexibility to suit the available building height without changing the basic working layout.

Key features

  • 4,000 kg rated lifting capacity
  • Clear-floor overhead layout with no base plate across the working bay
  • Flexible arm geometry for symmetric or offset vehicle positioning
  • Two overall-height settings to suit different workshop ceilings
  • Single-point manual safety-lock release from one column
  • Dual direct-drive hydraulic cylinders
  • Overhead safety shut-off
  • Automatic arm restraints
  • 90 mm minimum pad height
  • Toe guards and tool trays supplied as standard

Detail photography

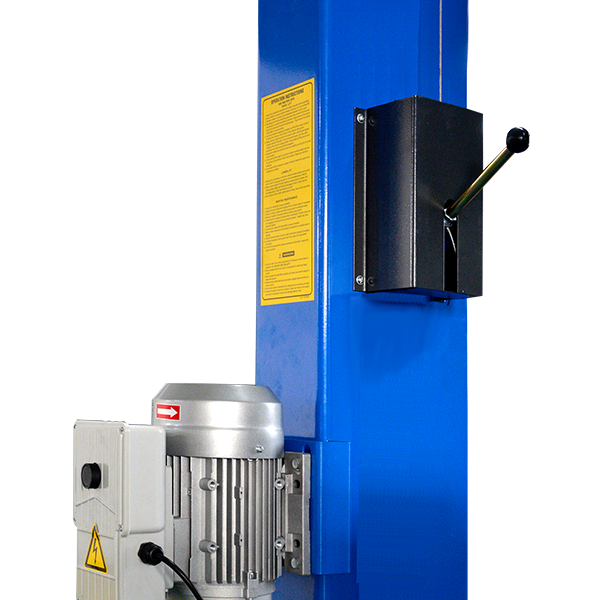

Single-point safety lock release

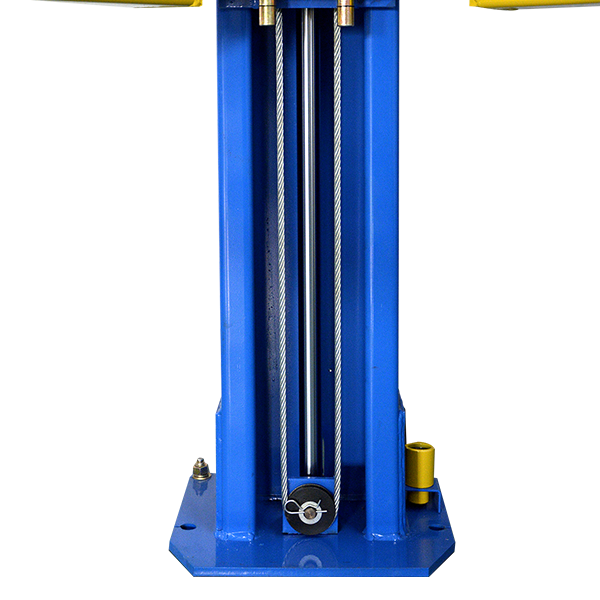

Direct-drive hydraulic cylinder Direct-drive hydraulic cylinder
Super-asymmetric arm set
Automatic arm restraints
Double-screw pad and 3″ adapters

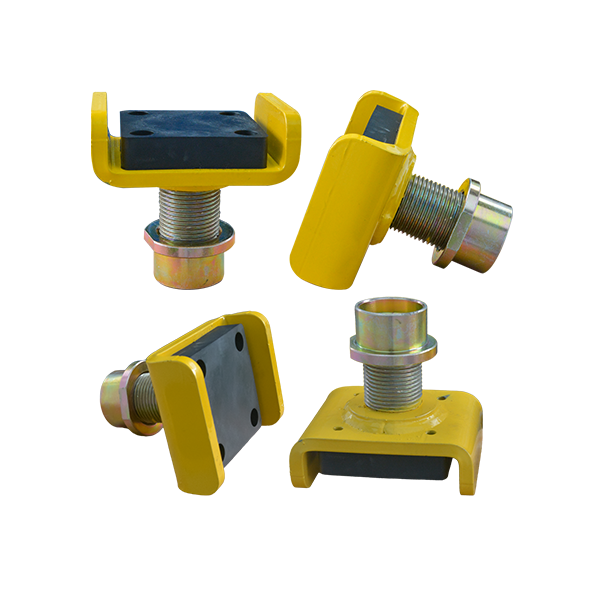

Optional saddle / frame adapter

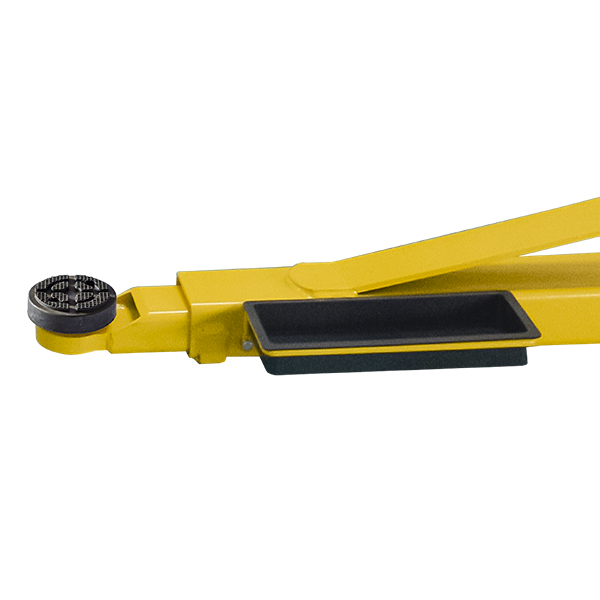

Toe guards and tool trays
Carriage and slider detail
Optional saddle adapter where shown

Ideal for

General mechanical workshops, tyre and suspension businesses, fleet light-vehicle workshops and service bays that need a versatile 4-tonne clear-floor two-post hoist for a mixed stream of passenger vehicles, SUVs, 4WDs and light commercial vehicles.

Specifications

Specifications

Details

Capacity
4,000 kg
Configuration
Clear-floor two-post, direct-drive
Overall height
3,620 mm or 3,823 mm
Overall width
3,428 mm
Drive-through clearance
2,528 mm
Motor
3.0 HP

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
4,000 kg
Configuration
Clear-floor two-post
Lifting time
Approx. 57 seconds
Maximum lifting height – without extension adapter
Approx. 57 seconds
Maximum lifting height – with 3-inch extension adapter
1,891-1,939 mm
Maximum lock height – without extension adapter
1,768-1,816 mm
Maximum lock height – with 3-inch extension adapter
1,844-1,892 mm
Minimum pad height
90 mm
Overall height
3,620 mm or 3,823 mm
Overall width
3,428 mm
Drive-through clearance
2,528 mm
Width between columns
2,850 mm
Arm configuration
Flexible symmetric / asymmetric positioning
Gross weight
Approx. 677 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Clear-floor two-post structure with overhead beam
  • Vehicle-positioning arm set and automatic arm restraints
  • Dual direct-drive hydraulic cylinders and power unit
  • Single-point manual lock release and overhead safety shut-off
  • Double-screw rubber pads with 3-inch extension adapters

Options

  • Saddle / frame adapter kit - source kit 21108
  • 6-inch extension adapter - source part 1102504001-01
  • Width-extension kit - source kit 20906 (confirm site dimensions before ordering)
  • Installation and commissioning quoted to suit the actual site

Workshop fit

Allow for either 3,620 mm or 3,823 mm overall hoist height plus clearance from doors, lighting and overhead services. Overall width is 3,428 mm, drive-through clearance is 2,528 mm and width between columns is 2,850 mm. Minimum pad height is 90 mm. Confirm vehicle mass, weight distribution, approved lifting points, arm reach/adapters, slab and anchoring requirements, electrical supply and unloading access before installation. Rated capacity by itself does not establish vehicle suitability.

Frequently asked questions

What is the main advantage of the FORGE 40A?
It is designed as a flexible general-workshop hoist, with a clear floor and arm positioning that can accommodate different vehicle loading positions while keeping good access around the vehicle.
Yes. The published overall-height settings are 3,620 mm and 3,823 mm. The final installation must still allow for the building, services and vehicle height.
It has a 4,000 kg rating, but suitability depends on the actual vehicle weight, weight distribution, lifting points and arm reach. These should be checked before purchase.
A 3-inch extension adapter is supplied with the standard lifting pad arrangement. A 6-inch adapter is listed as an option.
Yes. Installation and commissioning can be quoted once the slab, electrical supply, bay dimensions and access have been checked.
