Iron Lift FORGE 80HD

8,000 kg heavy-duty clear-floor two-post hoist with reinforced structure, long carriages and three height settings for the largest vehicles in the FORGE range.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

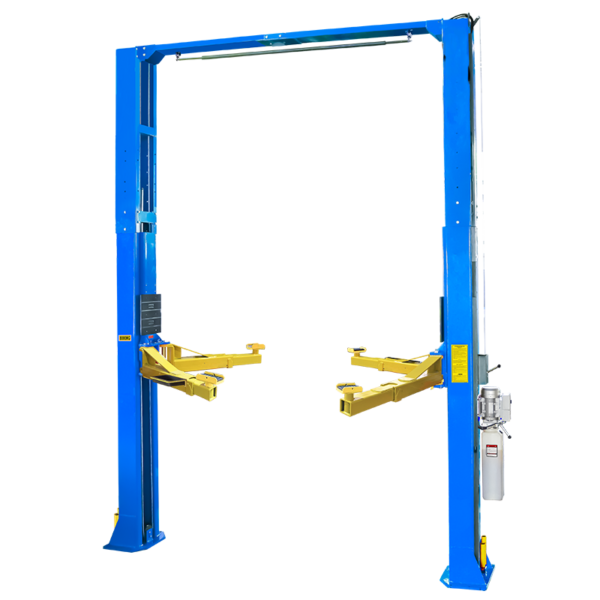

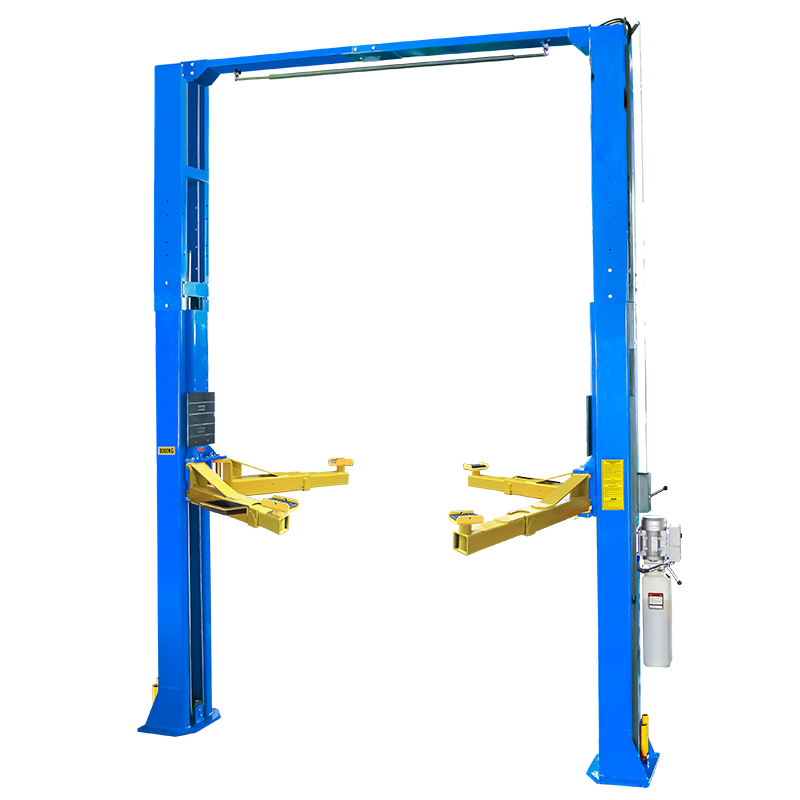

Iron Lift FORGE 80HD
Iron Lift FORGE 80HD

Clear-floor two-post

Iron Lift FORGE 80HD

8,000 kg Clear-Floor Two-Post Hoist

8,000 kg heavy-duty clear-floor two-post hoist with
reinforced structure, long carriages and three height
settings for the largest vehicles in the FORGE range.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
8,000 kg
Rated capacity
1,902-1,936 mm
Maximum lifting height
3,859 mm
Overall width
2,805 mm
Drive-through clearance

Product overview

The Iron Lift FORGE 80HD is the highest-capacity two-post in this FORGE batch, rated to 8,000 kg for demanding fleet, transport and industrial workshops. Its reinforced structure, long carriages and 3,137 mm spacing between columns are intended for larger commercial vehicles that remain suitable for a chassis-contact two-post lift. Three overall-height settings allow the overhead structure to be configured to the building. Four rugged two-stage arms, heavy-duty rubber pads, saddle adapters and 3-inch and 6-inch extensions provide a robust contact system for approved lifting points across a range of larger vehicles.

Key features

  • 8,000 kg rated lifting capacity
  • Reinforced heavy-duty clear-floor structure
  • Long carriage design
  • 3,137 mm width between columns
  • Three overall-height settings: 4,420 / 4,725 / 5,030 mm
  • Four rugged two-stage lifting arms
  • Single-point manual safety-lock release
  • Dual direct-drive hydraulic cylinders

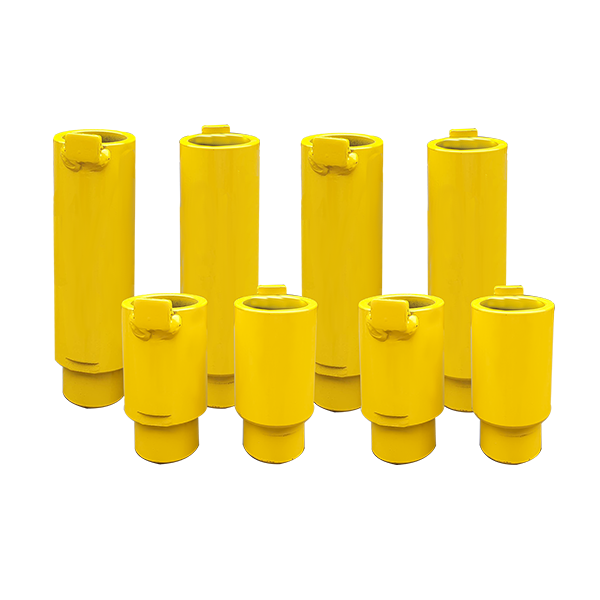

  • Heavy-duty rubber pads, saddle adapters and 3-inch / 6-inch extensions supplied
  • Automatic arm restraints, toe guards and tool trays

Detail photography

Single-point safety lock release

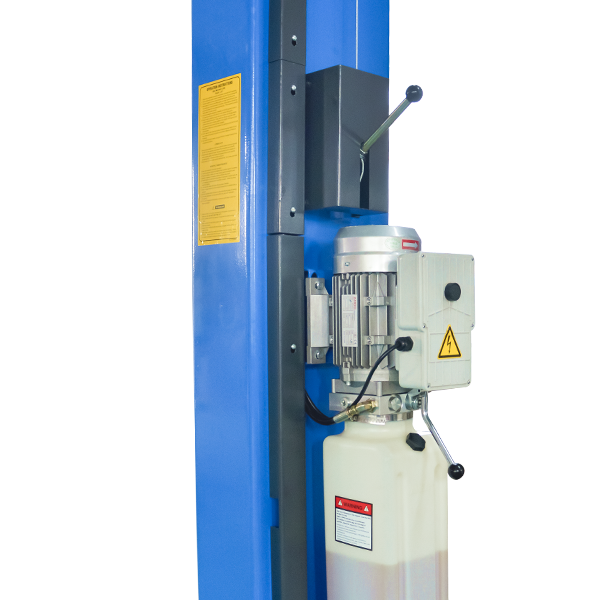

Direct-drive hydraulic cylinder Direct-drive hydraulic cylinder

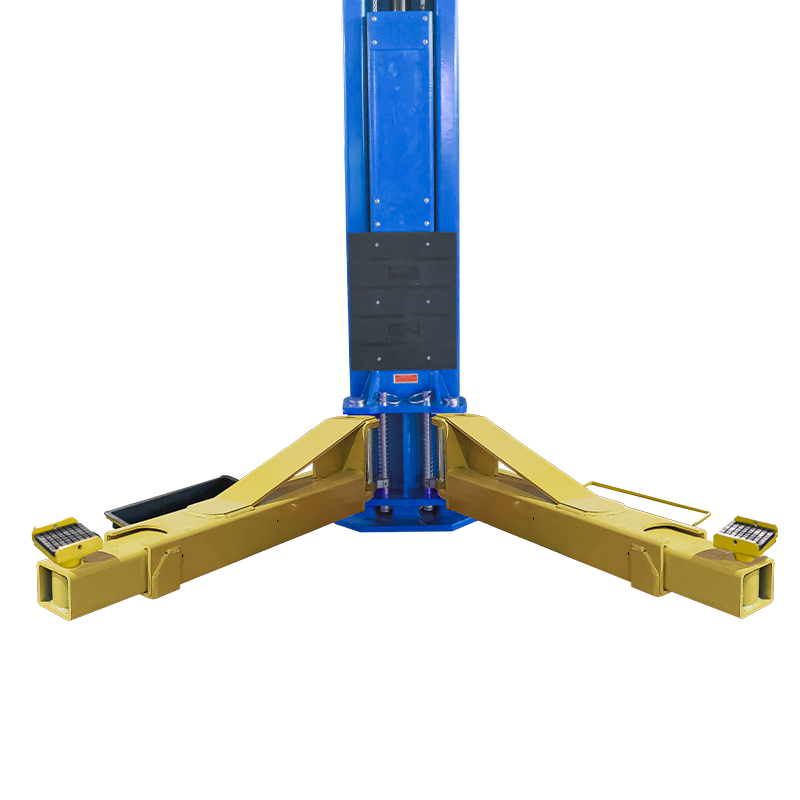

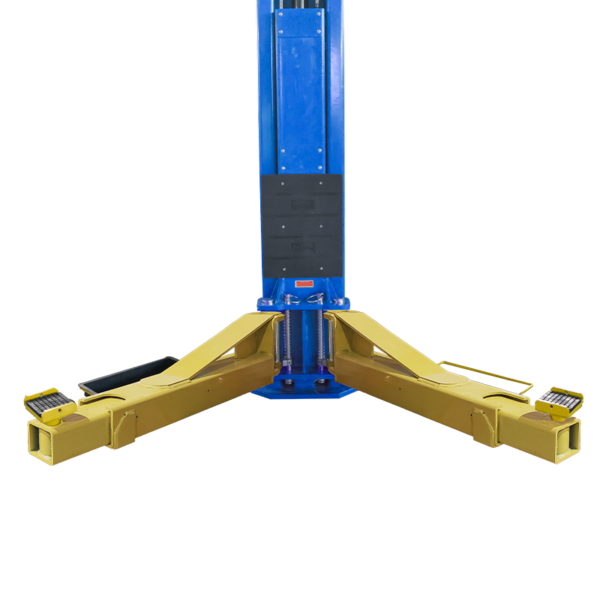

Super-asymmetric arm set

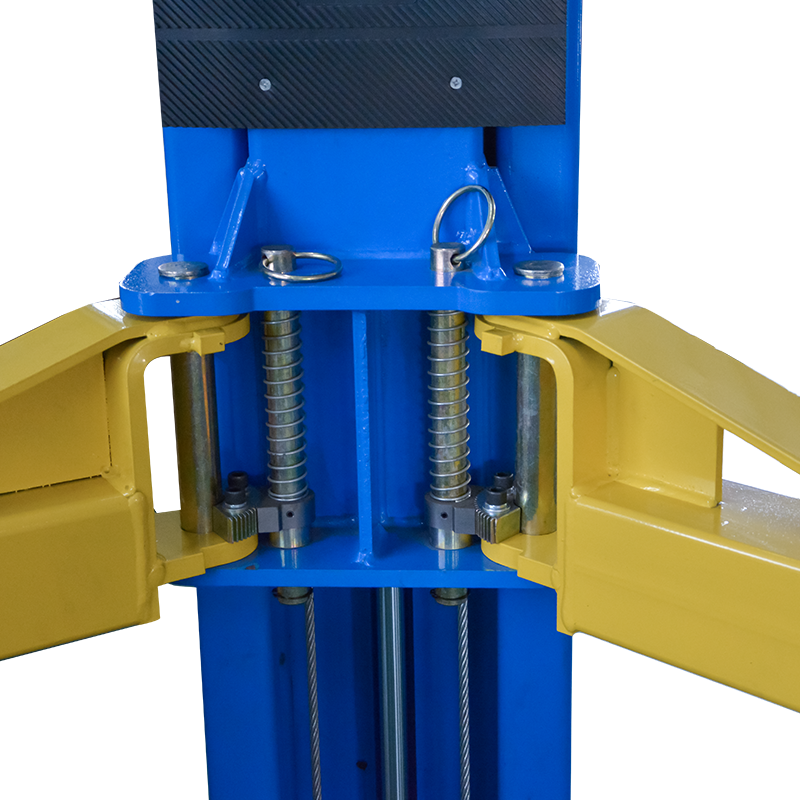

Automatic arm restraints

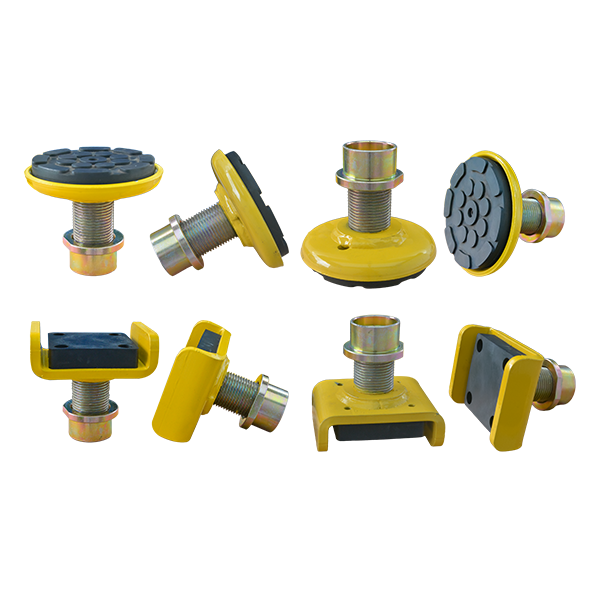

Double-screw pad and 3″ adapters

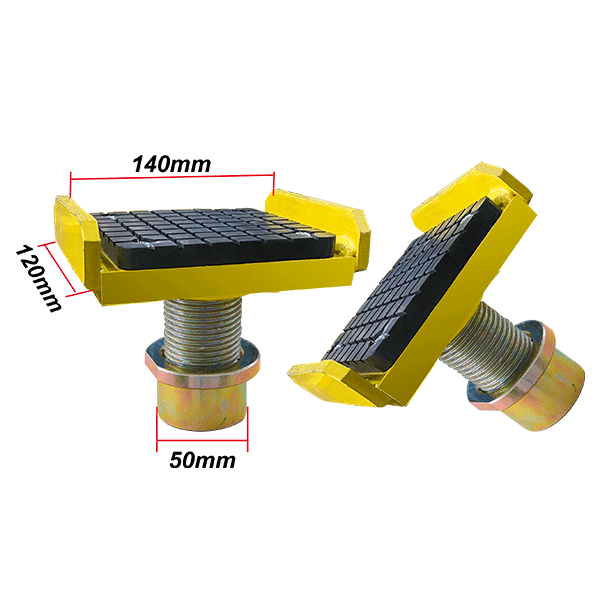

Optional saddle / frame adapter
Toe guards and tool trays

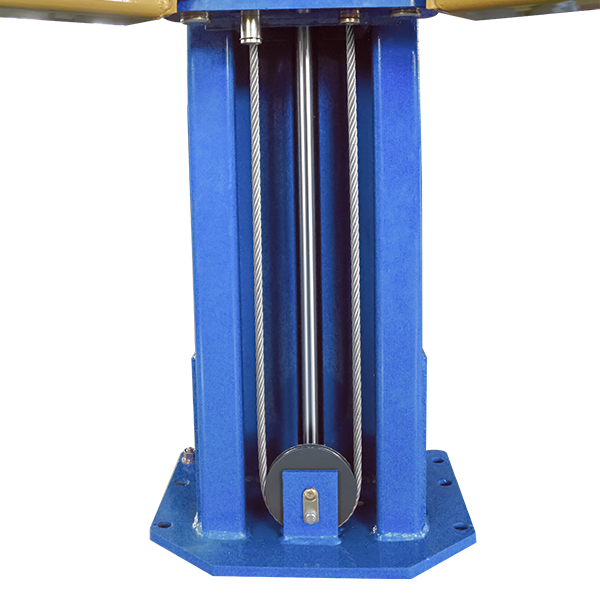

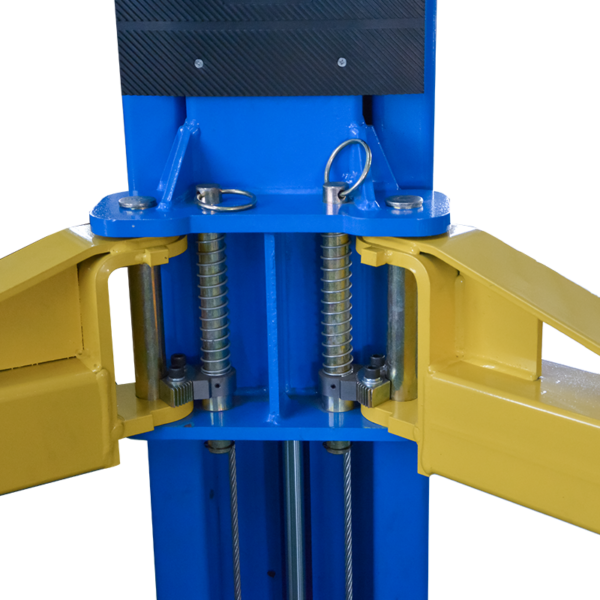

Carriage and slider detail
Iron Lift FORGE 80HD
Iron Lift FORGE 80HD

Ideal for

Heavy fleet, transport, mining-support and industrial workshops servicing large vans, trucks and heavier commercial vehicles that are confirmed as suitable for the hoist’s chassis-contact lifting points and working envelope.

Specifications

Specifications

Details

Capacity
8,000 kg
Configuration
Reinforced heavy-duty clear-floor two-post, direct-drive
Overall height
4,420 / 4,725 / 5,030 mm
Overall width
3,859 mm
Drive-through clearance
2,805 mm
Motor
3.0 HP

Factory dimension drawing

Iron Lift FORGE 80HD Diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
8,000 kg
Configuration
Reinforced heavy-duty clear-floor two-post
Lifting time
Approx. 84 seconds
Maximum lifting height – without extension adapter
Approx. 84 seconds
Maximum lifting height – with extension adapters
2,131-2,165 mm
Maximum lock height – without extension adapter
1,852-1,886 mm
Maximum lock height – with extension adapters
2,081-2,115 mm
Minimum pad height
175 mm
Overall height
4,420 / 4,725 / 5,030 mm
Overall width
3,859 mm
Drive-through clearance
2,805 mm
Width between columns
3,137 mm
Arm configuration
Four rugged two-stage arms
Gross weight
Approx. 1,318 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Reinforced heavy-duty clear-floor two-post structure with overhead beam
  • Four rugged two-stage lifting arms
  • Long carriages, dual direct-drive hydraulic cylinders and power unit
  • Single-point manual lock release and overhead safety shut-off
  • Heavy-duty single-screw rubber pads

Options

  • Heavy-duty extra-wide saddle adapter - source kit 21109
  • Installation and commissioning quoted to suit the actual site

Workshop fit

This is the largest-capacity hoist in this FORGE two-post batch and requires careful site and vehicle assessment. Overall width is 3,859 mm, drive-through clearance is 2,805 mm and width between columns is 3,137 mm. Overall height can be 4,420 mm, 4,725 mm or 5,030 mm. Minimum pad height is 175 mm. Confirm the exact vehicle lifting points, front/rear weight distribution, arm reach, pad/saddle choice, slab design and anchoring, power supply and unloading access before ordering.

Frequently asked questions

Is the FORGE 80HD the highest-capacity two-post in this batch?
Yes. It is rated to 8,000 kg
It uses a reinforced heavy-duty layout with long carriages, rugged two-stage arms and a wide column arrangement designed around the higher-capacity working range.
Heavy-duty rubber pads, saddle adapters and both 3-inch and 6-inch extension adapters are listed as standard.
Overall width is 3,859 mm, with 3,137 mm between columns and 2,805 mm drive-through clearance.
No. The 8,000 kg rating is not a blanket vehicle approval. Chassis lifting points, weight distribution, geometry and arm reach must all be suitable and the workshop slab/site must meet installation requirements.
