Iron Lift X-RISE 32P

3,200 kg portable mid-rise scissor hoist with a 118 mm lowered height, 1,070 mm maximum lift and fast 23- second rise for flexible quick-service bays.

Clear-floor two-post

Iron Lift X-RISE 32P

3,200 kg Portable Mid-Rise Scissor Hoist

3,200 kg portable mid-rise scissor hoist with a 118 mm lowered height, 1,070 mm maximum lift and a fast 23- second rise for flexible quick-service bays.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
3,200 kg
Rated capacity
1,070 mm
Maximum lifting height

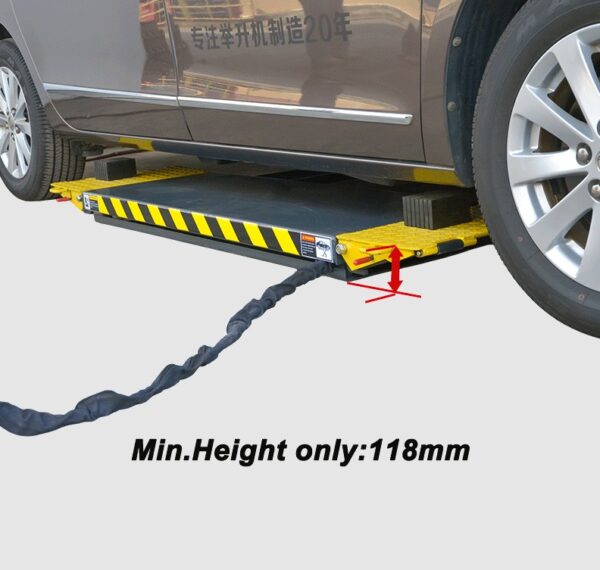

118 mm
Minimum height
23 seconds
Lifting time

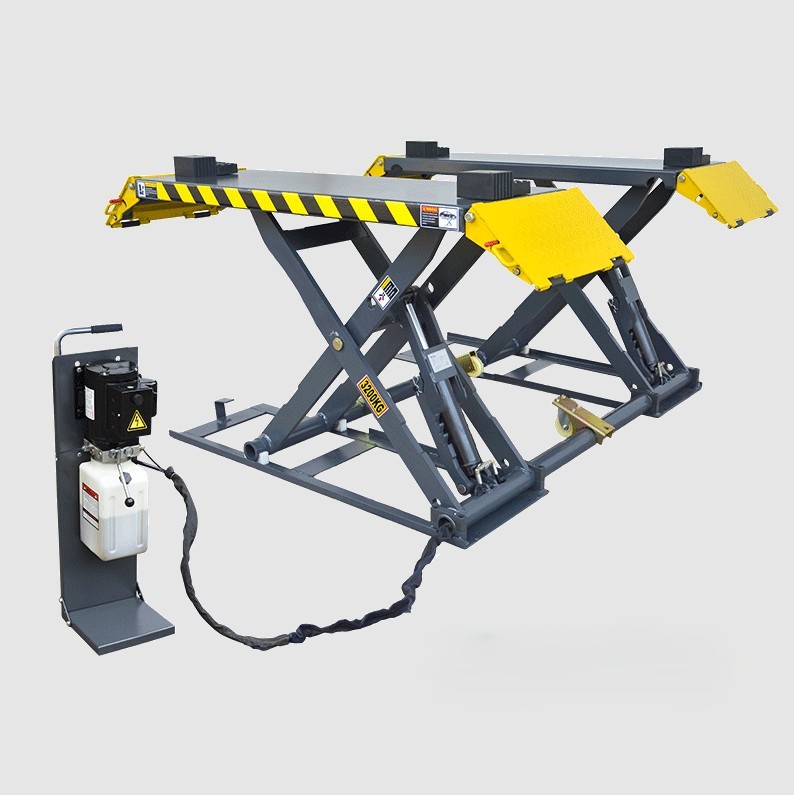

Product overview

The Iron Lift X-RISE 32P is a portable mid-rise scissor hoist designed for workshops that need wheel-free access without dedicating a permanent bay to a fixed lift. Its compact 118 mm lowered height helps accommodate a wide range of passenger vehicles while the 1,070 mm maximum lifting height places brakes, wheels, suspension and lower-body areas at a practical working level. A portable frame, detachable power-unit stand and telescoping pull rod allow the hoist to be repositioned between suitable service areas. Flexible drive-in ramps also serve as platform extensions, increasing useful support length when required. The automatic mechanical lock system releases without an external compressed-air supply, simplifying workshop placement. Dual torsion bars support platform synchronisation, while 38 mm and 70 mm rubber pads are supplied for different contact-height requirements.

Key features

Detail photography

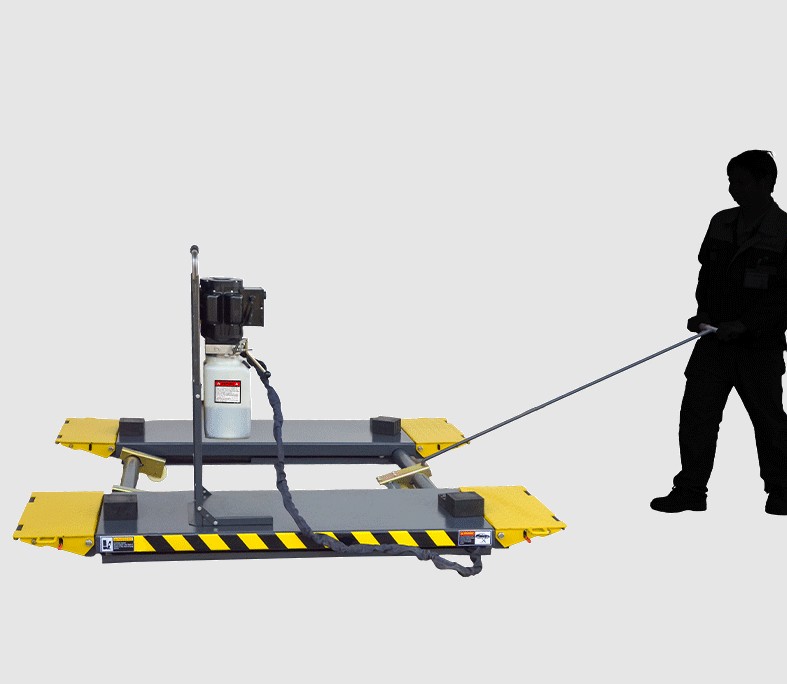

Portable chassis and movement arrangement
Auto-release mechanical locking system
Detachable power-unit stand and pull rod

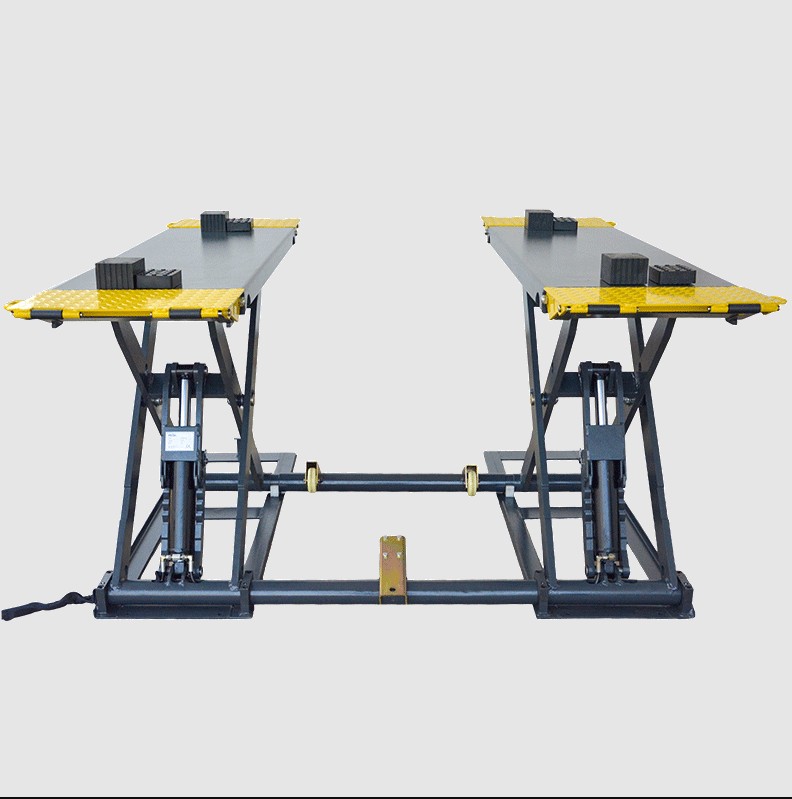

Dual torsion-bar synchronisation detail
Drive-in ramp / platform-extension arrangement
38 mm and 70 mm rubber lifting pads

Ideal for

Tyre and brake workshops, general mechanical repairers, body shops, detailing or inspection bays, and multi-bay workshops that need a movable wheel-free service lift rather than a permanently fixed hoist.

Specifications

Specifications

Details

Capacity
3,200 kg
Configuration
Portable mid-rise scissor
Maximum lifting height
1,070 mm
Minimum height
118 mm
Overall width
1,952 mm
Motor
3.0 HP

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
3,200 kg (7,000 lb)
Configuration
Portable mid-rise scissor
Lifting time
23 seconds
Maximum lifting height
23 seconds
Maximum lock height
1,010 mm
Minimum height
118 mm
Platform / runway length
1,472 mm
Overall length including ramps
2,045 mm
Overall width / outside platform width
1,952 mm
Width between platforms
800 mm
Alignment range
Not applicable
Auxiliary scissor
Not applicable
Gross weight
523 kg
Motor
3.0 HP
Control / safety
Auto-release mechanical locks; no external air source required
Standard pads
38 mm and 70 mm rubber pads
Published factory options
No named accessory kit listed on current source page

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

Confirm vehicle mass, lifting-point locations, ground clearance, contact-point spread and underbody configuration before use. The hoist is 1,952 mm overall width and 2,045 mm overall length, with a 118 mm minimum height. Because it is portable, also confirm a level, suitable operating surface and safe movement/storage area for the lift and power unit. Rated capacity alone does not establish vehicle suitability.

Frequently asked questions

What type of work is X-RISE 32P intended for?
It is aimed at wheel-free quick service such as tyre, brake, suspension, body and general under-vehicle work where a midrise height is appropriate.
No. The source specifies auto-release mechanical locks that eliminate the need for an external air source.
Yes. Portability is a key feature, but the lift must only be moved, positioned and operated in accordance with the approved operating instructions and on a suitable surface.
The published minimum height is 118 mm. Actual vehicle access still depends on ground clearance and underbody geometry.
Yes. Provide the vehicle make/model, mass, lifting-point layout and workshop details so the intended use can be checked against the published lift dimensions.

Related Pages

Two-Post Hoists

Installation

Servicing & Repairs

Spare Parts

Request a Quote

Documents

brochure

manual

dimension drawing

Request a vehicle hoist quote

Tell us the vehicles you service, lifting-point spread, ground clearance, workshop layout and location and we will help confirm whether the X-RISE 32P is the right portable mid-rise solution.
