BendPak MDS-6LPF

Flush-mounted 2,722 kg open-centre mid-rise scissor lift that keeps the bay floor clear when lowered while retaining useful service height and centre access.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

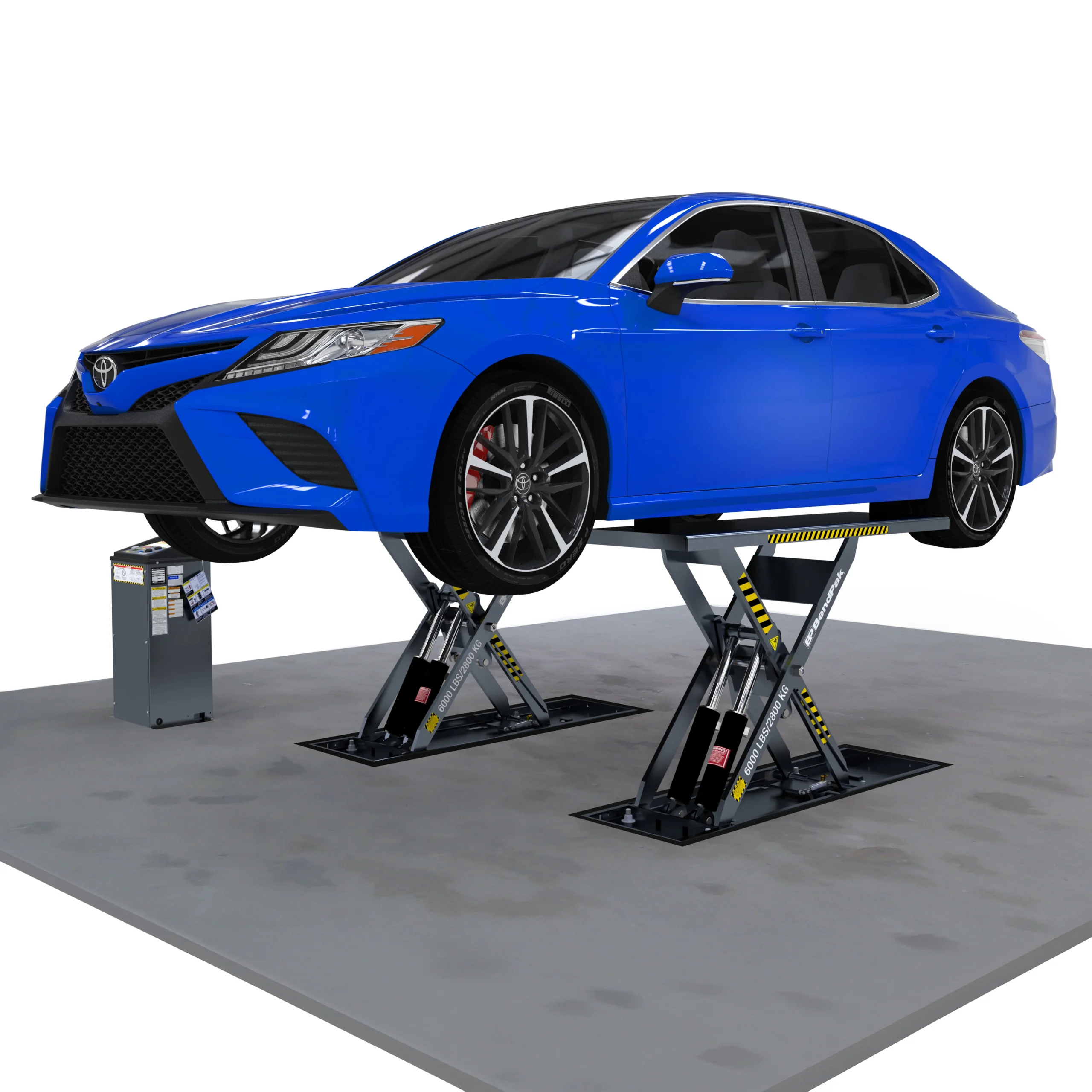

BendPak MDS-6LPF

2,722 kg Flush-Mount Open-Centre Mid-Rise Scissor Lift

Flush-mounted 2,722 kg open-centre mid-rise scissor lift that keeps the bay floor clear when lowered while retaining useful service height and centre access.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
2,722 kg
Rated capacity
Flush mid-rise
Configuration
1,118 mm
Maximum lifting height
Flush-mount
Lowered / installation profile

Product overview

The BendPak MDS-6LPF is the recessed counterpart to the surface-mounted MDS-6LP. It gives a workshop the same general open-centre mid-rise concept while allowing the lifting equipment to sit flush with the finished floor when not in use. Pneumatic assistance helps the lift start from its collapsed position, four hydraulic cylinders support balanced movement, and mechanical locks provide secure working positions. It suits clean new-build or refurbishment projects where a mid-rise platform is wanted without permanently occupying floor height in the bay.

Key features

  • 2,722 kg rated lifting capacity
  • Recessed flush-mount installation
  • Open-centre mid-rise configuration
  • Current manufacturer page lists 1,118 mm maximum lifting height
  • Four hydraulic cylinders with flow-divider arrangement
  • Pneumatic kicker assist from the collapsed position
  • Push-button pneumatic safety-lock release
  • Multiple mechanical locking positions
  • Adjustable 1,016-1,168 mm platform spacing

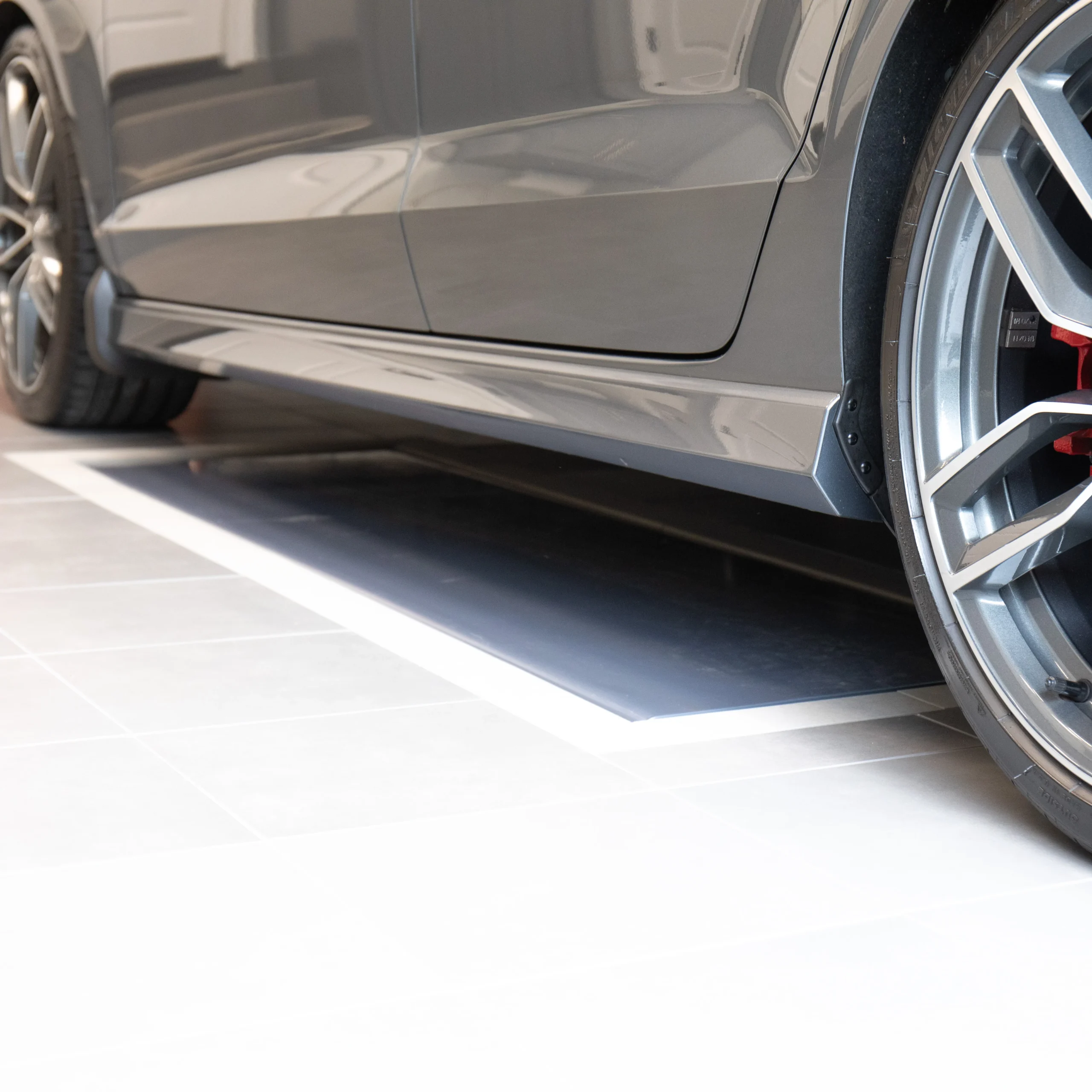

  • Clean floor profile when lowered and correctly recessed

Detail photography

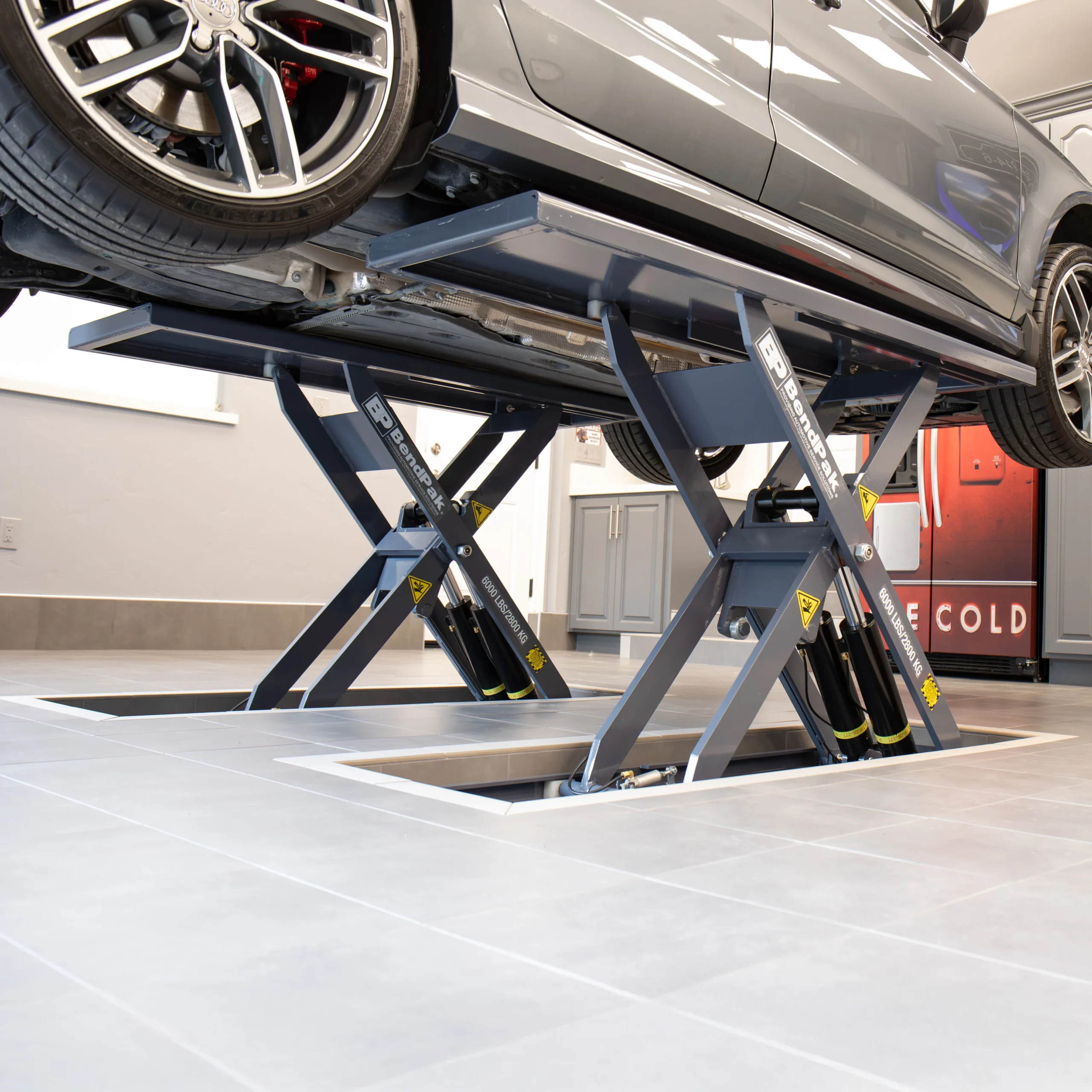

Flush-mount recess / pit arrangement

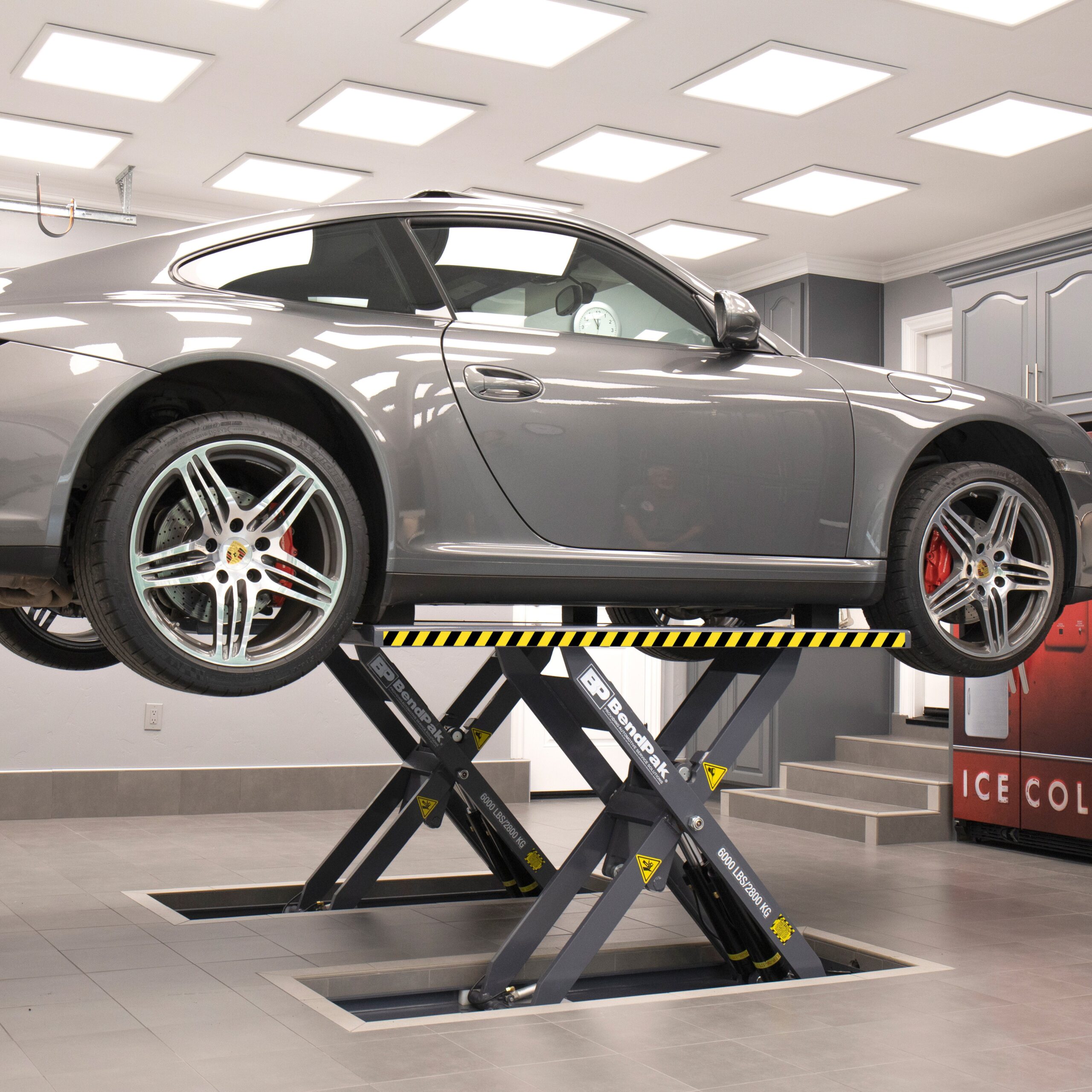

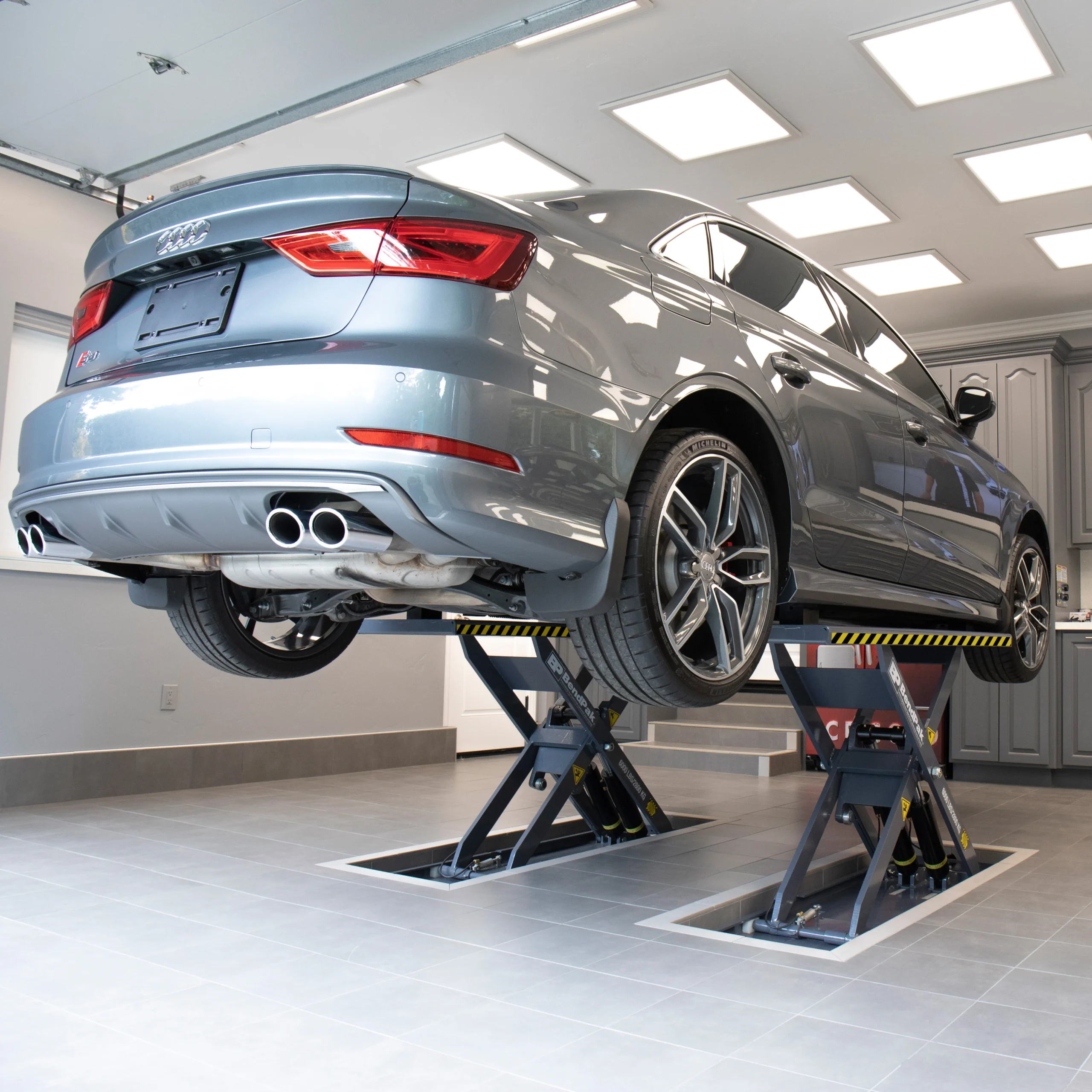

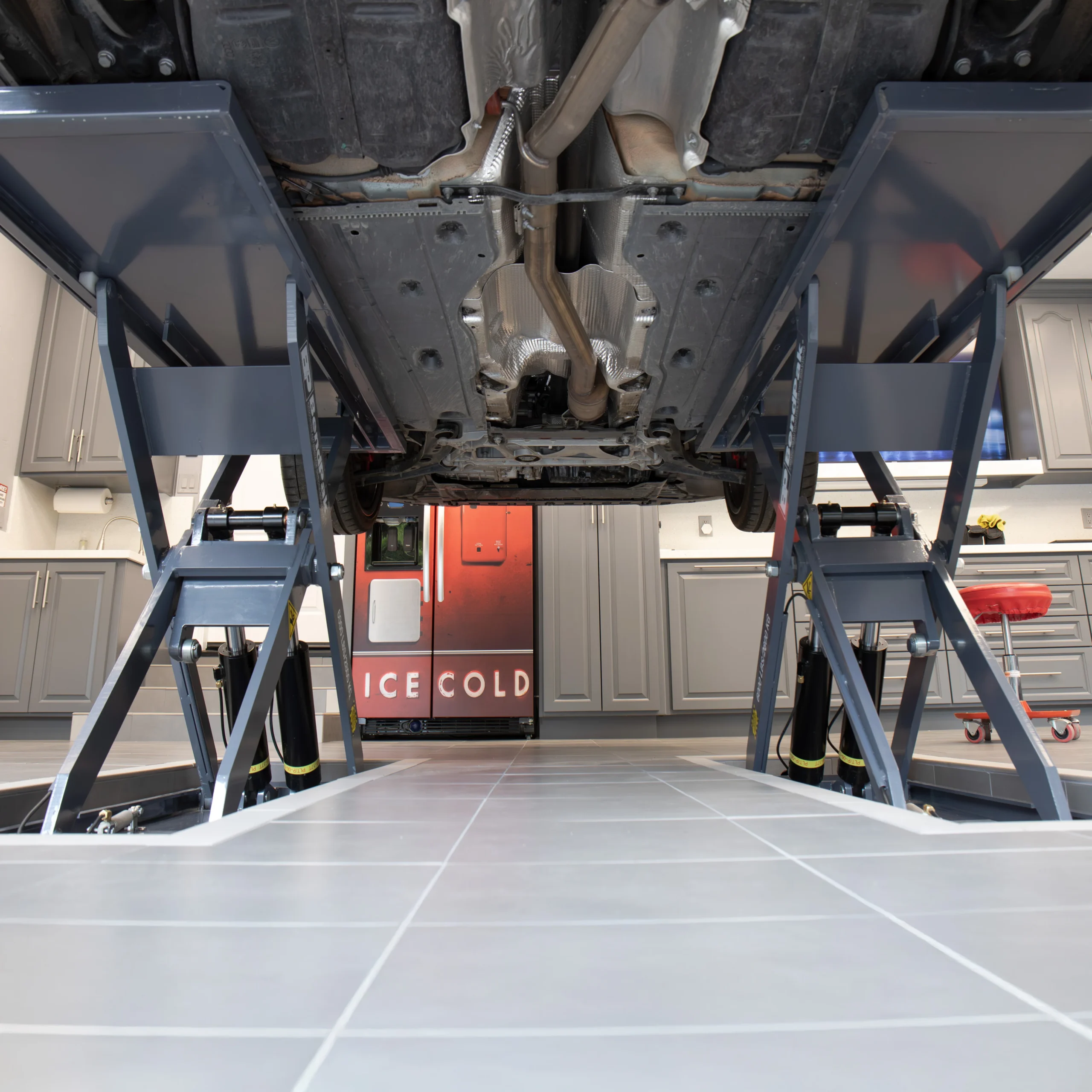

Open-centre twin platform layout
Pneumatic kicker system

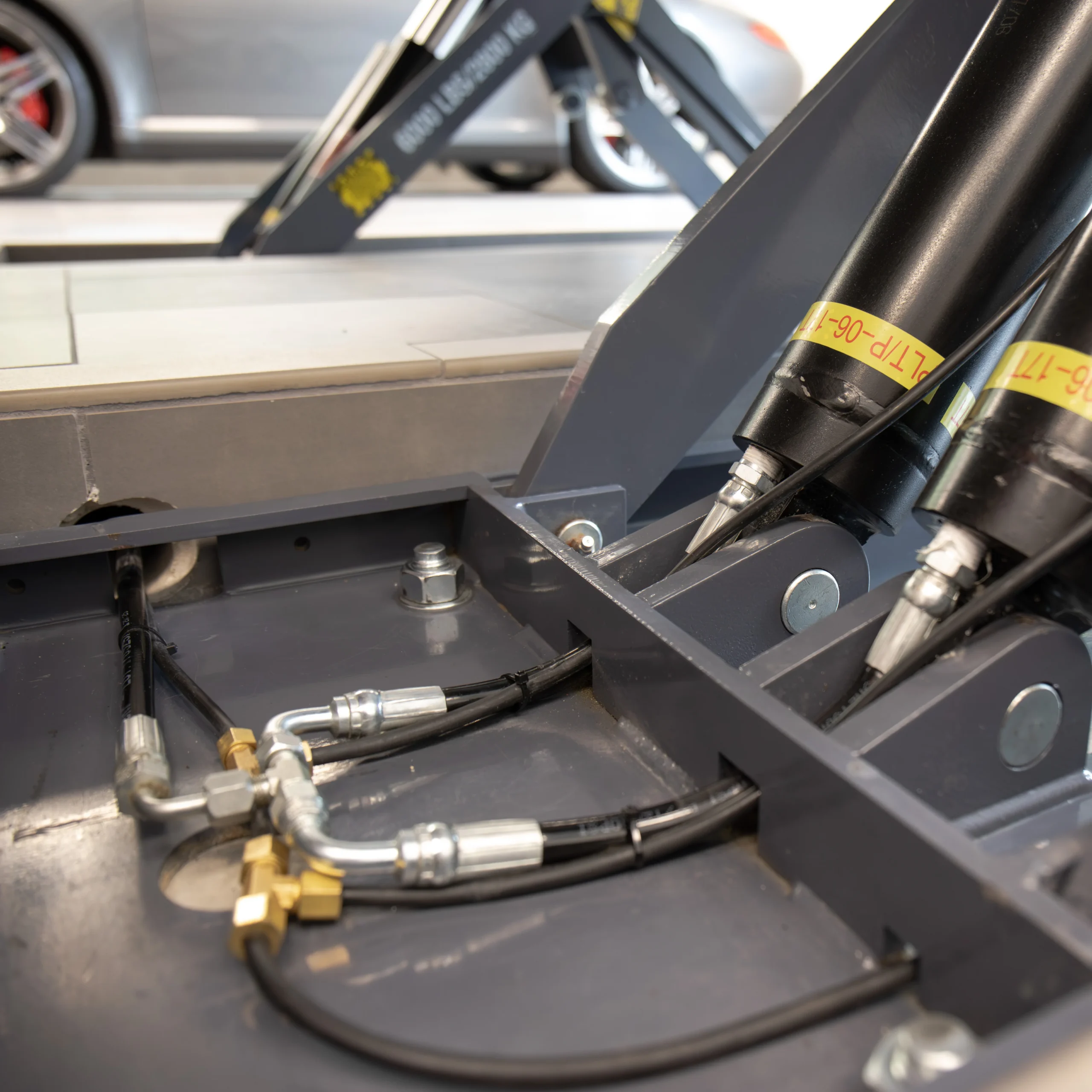

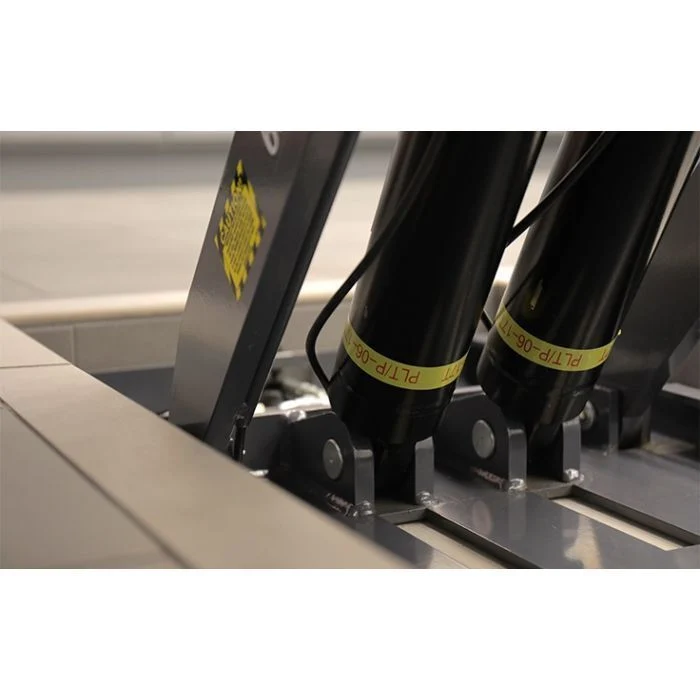

Four-cylinder hydraulics
Mechanical safety locks
Pneumatic lock-release system
Contact blocks/pads
Control/power unit

Ideal for

Premium mechanical workshops, detailing/bodywork facilities, quick-service bays and new fit-outs wanting mid-rise service access while keeping the floor clear when the lift is lowered.

Specifications

Specifications

Details

Capacity
2,722 kg
Configuration
Flush-mount open-centre mid-rise scissor lift
Rise class
Mid-rise
Maximum lifting height
1,118 mm on current manufacturer page
Installation type
Recessed / flush-mount

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak MDS-6LPF
BendPak SKU
5175227
Rated lifting capacity
2,722 kg
Rise class
2,722 kg
Configuration
Flush-mount open-centre mid-rise scissor lift
Installation type
Recessed / flush-mount
Maximum lifting height
1,118 mm on current manufacturer page
Maximum height with blocks / adapters
SOURCE CHECK REQUIRED: current manufacturer page unusually lists 978 mm with blocks, lower than its 1,118 mm unblocked figure. Do not publish this row until BendPak/Genesis confirms the correct value.
Lowered / floor profile
Flush with finished floor when correctly recessed; physical platform depth shown as 127 mm on current page
Published lifting time
35 seconds
Published locking positions
610 / 762 / 889 / 991 mm
Platform / pad dimensions
Approx. 1,702 x 483 mm per platform
Overall / working length
Approx. 1,702 mm lift/platform length
Platform spacing / width reference
Width between platforms 1,016-1,168 mm
Width between platforms
1,016-1,168 mm
Motor
1.5 HP
Electrical configuration
Current US page: 208-230 V, 60 Hz, 1-phase. Confirm Australiansupplied voltage/frequency before publication.
Air / pneumatic requirement
Pneumatic kicker and lock-release systems; confirm exact Australian air requirement from current manual/configuration.
Shipping / supplied-revision reference
Approx. 665 kg on current manufacturer page; verify Australian supplied revision.
Australian publication rule
Confirm exact Genesis/Iron Lift Australian supplied revision, electrical configuration, manuals and availability before live publication.

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Twin recessed MDS-6LPF platform/scissor assemblies.
  • Four-cylinder hydraulic lifting arrangement and power/control system.
  • Pneumatic kicker and pneumatic lock-release components.
  • Mechanical safety-lock system.
  • Vehicle contact blocks/pads supplied with the exact configuration.

Options

  • Approved MDS vehicle blocks/adapters for compatible applications.
  • Model-compatible ramp/approach solutions only where confirmed for the flush-mount version.
  • Replacement hydraulic, pneumatic, pivot and lock components.
  • Recess/pit design review, installation and commissioning.

Workshop fit

BendPak MDS-6LPF is rated to 2,722 kg and is a flush-mount open-centre mid-rise scissor lift. Published maximum lift is 1,118 mm on current manufacturer page; installation profile is recessed / flush-mount. Confirm vehicle mass and weight distribution, manufacturer-approved lifting points, ground clearance, track/wheelbase or pad reach, workshop bay dimensions, overhead clearance at full lift, electrical and pneumatic services, and the exact slab/foundation/recess requirements before supply or installation. Rated capacity alone does not establish vehicle suitability. For flush-mount products, the site recess/pit must be built to the exact supplied manual/revision – never from a generic scissor-lift drawing.

Frequently asked questions

How is MDS-6LPF different from MDS-6LP?
The LPF is designed for a recessed flush-mount installation, while MDS-6LP is surface-mounted.
The current BendPak page lists 1,118 mm. It also lists a contradictory lower height “with blocks”; that inconsistent figure should not be published until confirmed.
Yes, when the lift is installed in the correctly designed recess and finished flush with the surrounding floor.
It uses pneumatic kicker/lock-release systems. The exact Australian air requirement must be confirmed from the current supplied manual/configuration.
An exact current Genesis Australia product page was not located during this research. The page can be staged, but stock/supply claims should wait for Genesis/Iron Lift confirmation.
