Iron Lift X-RISE 45S

4,500 kg full-rise surface-mount scissor hoist with 147 mm minimum height, extendable platforms and combined hydraulic/mechanical locking for professional service bays.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
Iron Lift X-RISE 45S
Iron Lift X-RISE 45S

Clear-floor two-post

Iron Lift X-RISE 45S

4,500 kg Full-Rise Surface-Mount Scissor Hoist

4,500 kg full-rise surface-mount scissor hoist with 147 mm minimum height, extendable platforms and combined hydraulic/mechanical locking for professional service bays.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,500 kg
Rated capacity
1,750 mm
Maximum lifting height
147 mm
Minimum height
1,585-1,985 mm
Platform length

Product overview

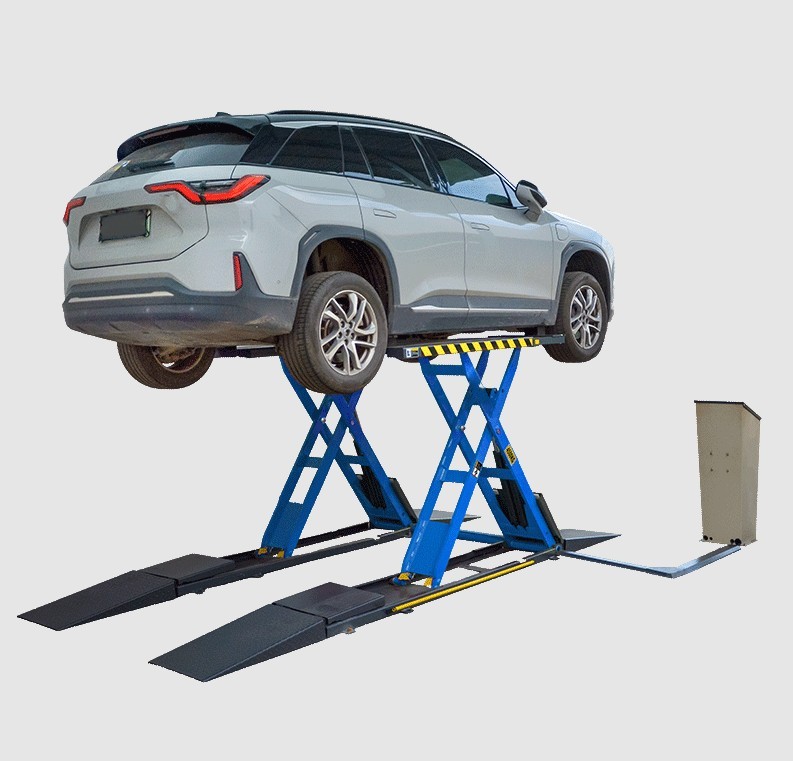

The Iron Lift X-RISE 45S is a heavy-duty surface-mount scissor hoist for workshops wanting 4,500 kg capacity without side columns. Its single-scissor full-rise layout provides open access around the vehicle and uses long extendable platforms to cover a broad range of wheelbases. Two-stage ramps at both ends improve approach for lower-clearance vehicles. Four hydraulic cylinders are arranged in two groups, with a torsion bar supporting platform synchronisation during lifting. A 24 V control cabinet, integrated hydraulic and mechanical locking systems, self-lubricating sliders and bronze bushes create a workshop-focused platform intended for regular professional use.

Key features

  • 4,500 kg rated capacity
  • Full-rise surface-mount single-scissor layout
  • 147 mm minimum height
  • 1,750 mm maximum lifting height
  • Extendable platforms from 1,585 mm to 1,985 mm
  • Two-stage ramps at both ends
  • Four hydraulic cylinders in two groups
  • Torsion bar for platform synchronisation
  • Integrated hydraulic and mechanical locking
  • 24 V control cabinet

Detail photography

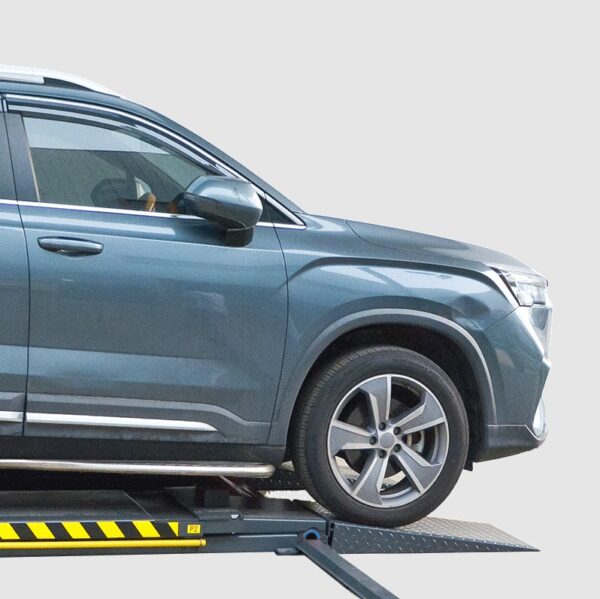

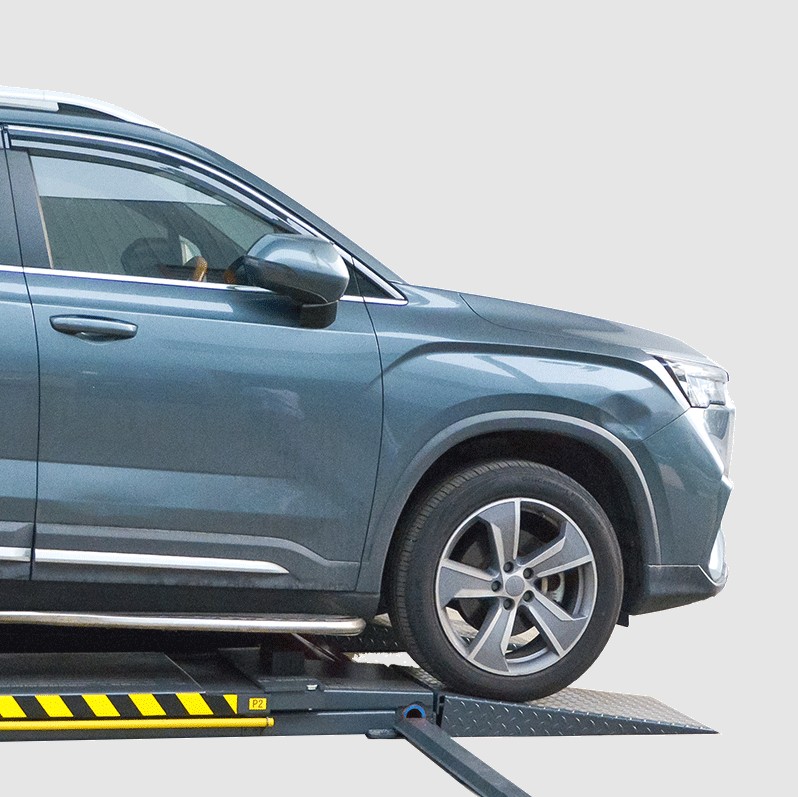

Two-stage approach ramps

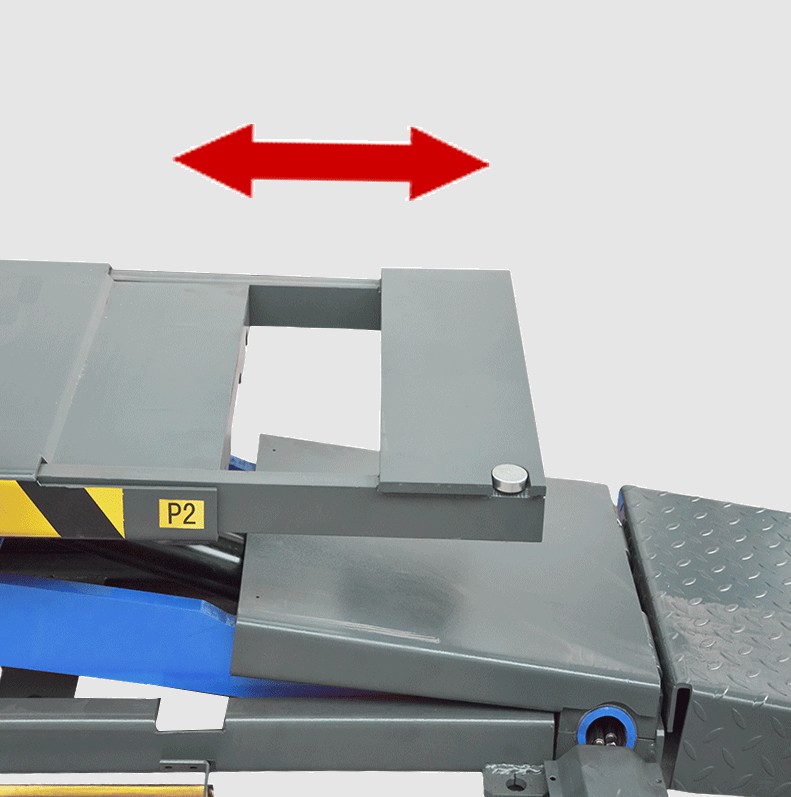

Extendable platform arrangement

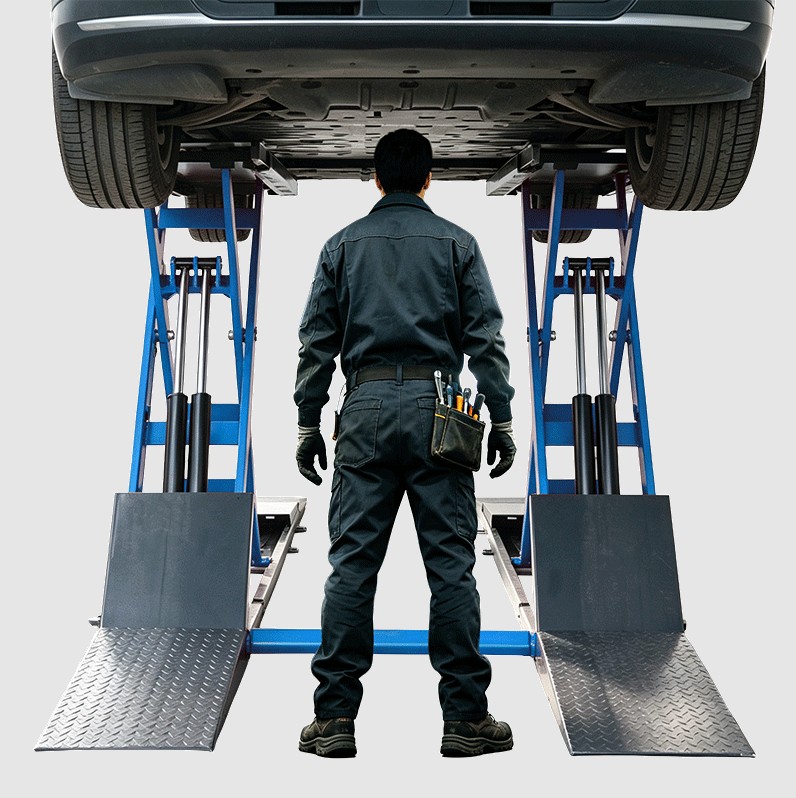

Four-cylinder lifting system

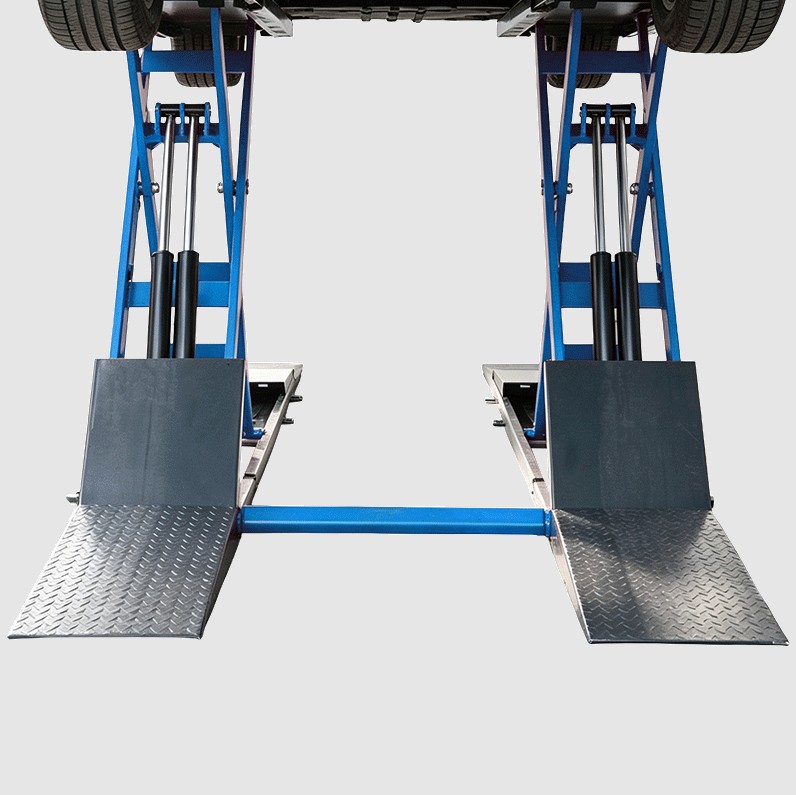

Torsion-bar synchronisation detail
Hydraulic and mechanical locking system

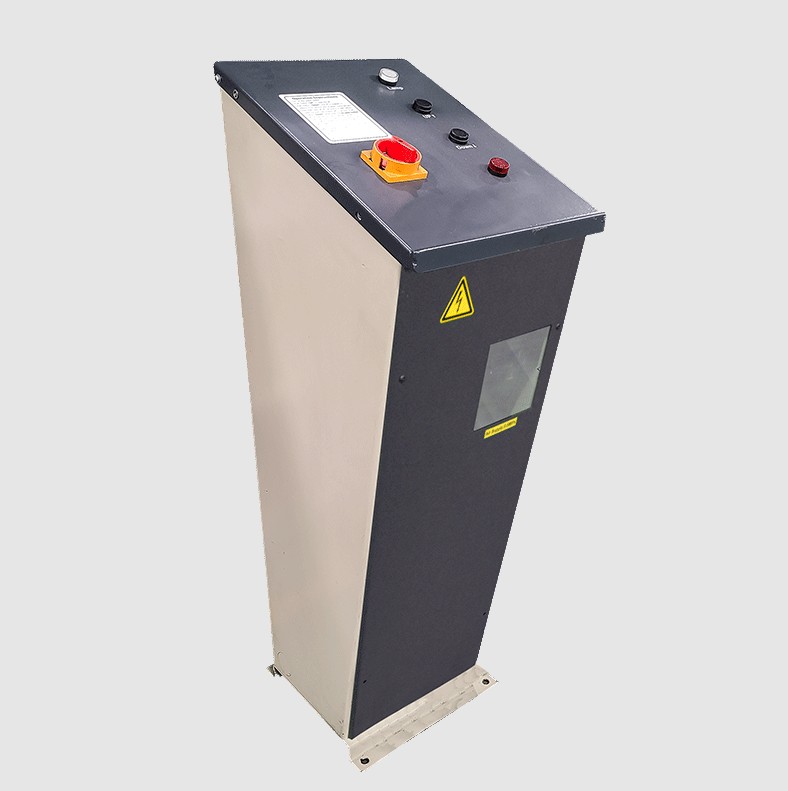

24 V control cabinet
Iron Lift X-RISE 45S
38 mm / 70 mm rubber pads

Ideal for

Professional mechanical workshops, fleet light-vehicle bays, tyre and suspension centres and fit-outs needing a highercapacity surface-mounted scissor hoist with clear side access.

Specifications

Specifications

Details

Capacity
4,500 kg
Configuration
Full-rise surface-mount scissor
Maximum lifting height
1,750 mm
Minimum height
147 mm
Platform length
1,585-1,985 mm
Motor
3.0 HP

Factory dimension drawing

Iron Lift X-RISE 45S Diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
4,500 kg (10,000 lb)
Configuration
Full-rise surface-mount scissor
Lifting time
65 seconds
Maximum lifting height
65 seconds
Maximum lock height
1,725 mm
Minimum height
147 mm
Platform / runway length
1,585-1,985 mm
Overall length including ramps
4,542 mm
Overall width / outside platform width
2,042 mm outside edges of platforms
Width between platforms
858 mm
Alignment range
Not applicable
Auxiliary scissor
Not applicable
Gross weight
1,174 kg
Motor
3.0 HP
Control / safety
24 V cabinet; integrated hydraulic and mechanical locks; torsion-bar synchronisation
Standard pads
38 mm and 70 mm rubber pads
Published factory options
No named accessory kit shown on current source page

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Surface-mount full-rise scissor structure
  • Two-stage approach ramps at both ends
  • Four-cylinder hydraulic lifting system
  • Torsion-bar synchronisation system
  • Integrated hydraulic and mechanical locks

Options

  • No separately named factory accessory kit is shown on the current PEAK SX10 source page. Do not invent accessory items.
  • Installation, freight and commissioning quoted to suit the actual site.

Workshop fit

Overall length including ramps is 4,542 mm and the platforms extend from 1,585 mm to 1,985 mm. Confirm vehicle lifting points, weight distribution, wheelbase/contact spread and approach clearance. The source page does not state a compressed-air requirement for the standard lock arrangement; final utility requirements must be confirmed from the approved installation documentation before connection.

Frequently asked questions

What is the main difference between X-RISE 45S and a flush-mount scissor hoist?
X-RISE 45S is designed for surface mounting, so it does not require the recessed installation used by flush-mount models.
The published platform range is 1,585 mm to 1,985 mm.
The technical table gives a maximum lifting height of 1,750 mm and maximum lock height of 1,725 mm.
The source lists integrated hydraulic and mechanical locks together with the controlled electrical system.
Yes. Installation can be quoted after the workshop floor, access, utilities and vehicle requirements are checked.
