Stertil-Koni ST4175

17,500 kg Ultra Four-Post Platform Lift

17,500 kg heavy-duty four-post platform hoist with crossbeam-free working access, 1,900 mm lift height and multiple platform-length options for trucks, buses and municipal fleets.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
17,500 kg
Capacity
1,900 mm
Lifting height
72 seconds
Lifting time
6-11.5 m
Platform lengths

Product overview

The Stertil-Koni ST4175 is a 17,500 kg heavy-vehicle platform hoist for workshops that want full-length under-vehicle access without a pit or a crossbeam spanning the working area. The platforms lift vertically and the clear centre lets technicians move beneath trucks and buses with fewer floor-level obstructions. Platform lengths from 6 to 11.5 metres allow the lift to be configured around different fleet lengths. A 230 mm drive-on height suits many buses and lower-clearance heavy vehicles, while the eBright control platform manages synchronisation, operating information and service diagnostics. The ST4175 is a project-installed lift rather than a generic off-the-shelf bay. Platform length, spacing, ramp arrangement, installation type, foundation, jacking beams and workshop services should all be resolved as part of site planning.

Key features

Detail photography

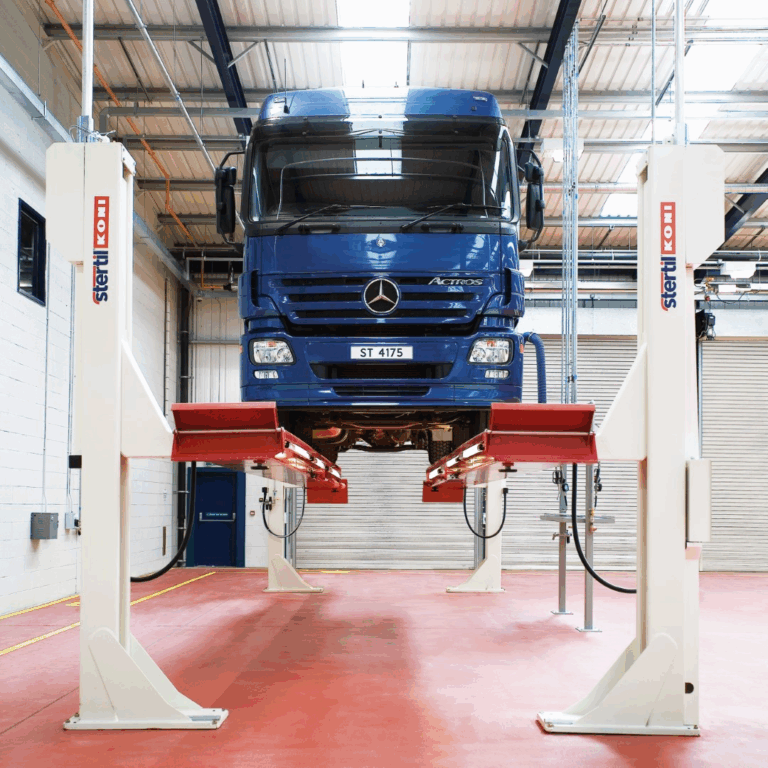

Crossbeam-free platform and clear central working area

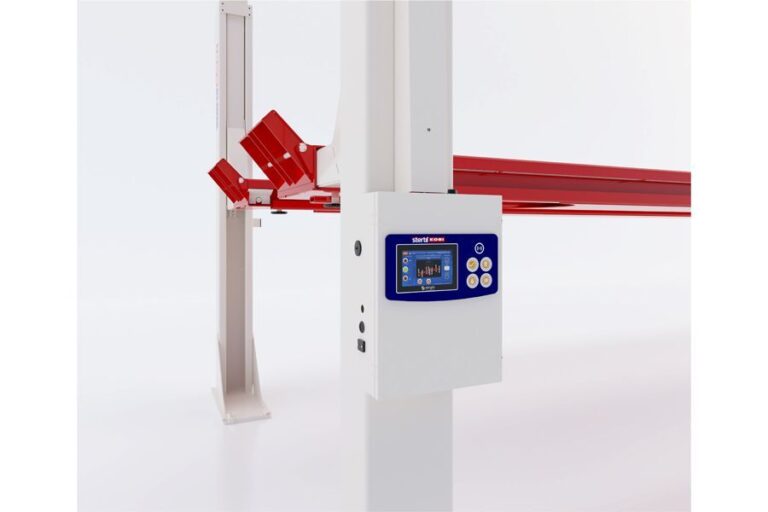

eBright touchscreen control
Platform and lifting-leg construction
Mechanical locking system

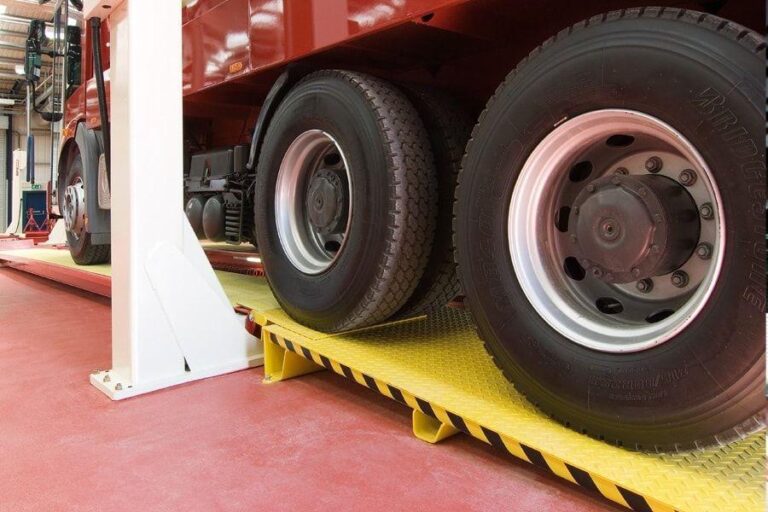

Drive-on ramp arrangement

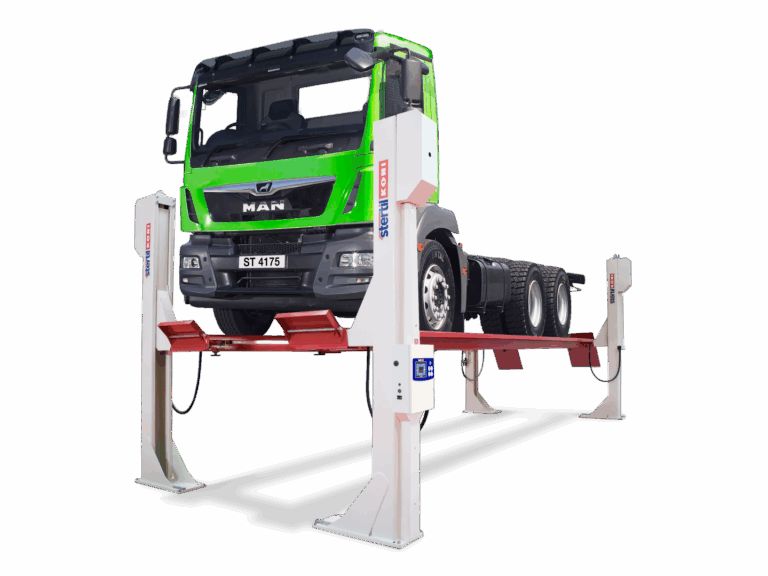

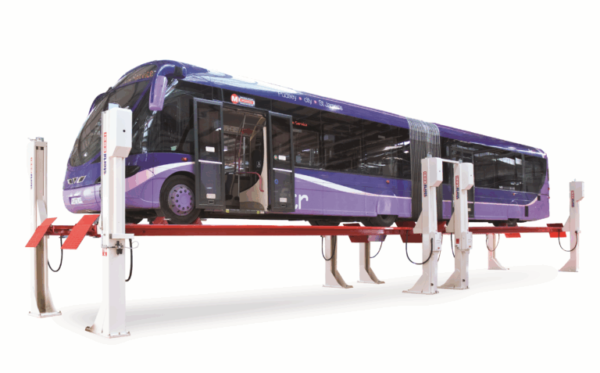

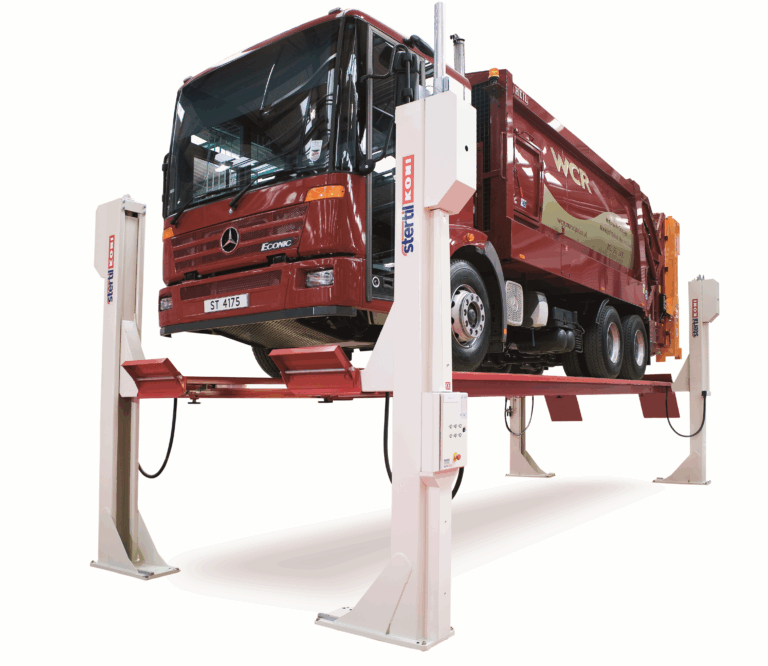

Truck or bus positioned on full platform length

Ideal for

Bus and coach workshops, rigid-truck fleets, councils, waste and emergency fleets, transport depots and heavy-vehicle service centres wanting a fixed drive-on platform lift instead of a service pit.

Specifications

Specifications

Details

Capacity
17,500 kg
Configuration
Heavy-duty four-post platform lift
Lifting height
1,900 mm
Lifting time
72 seconds
Drive-on height
230 mm
Platform lengths
6 / 8 / 9 / 10 / 11.5 m

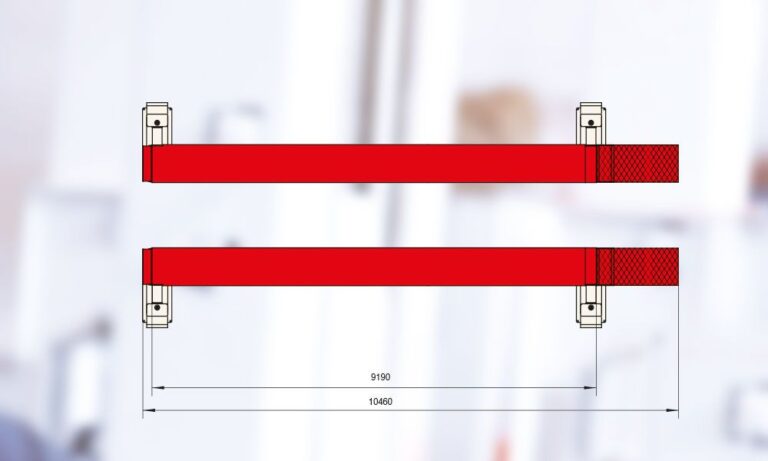

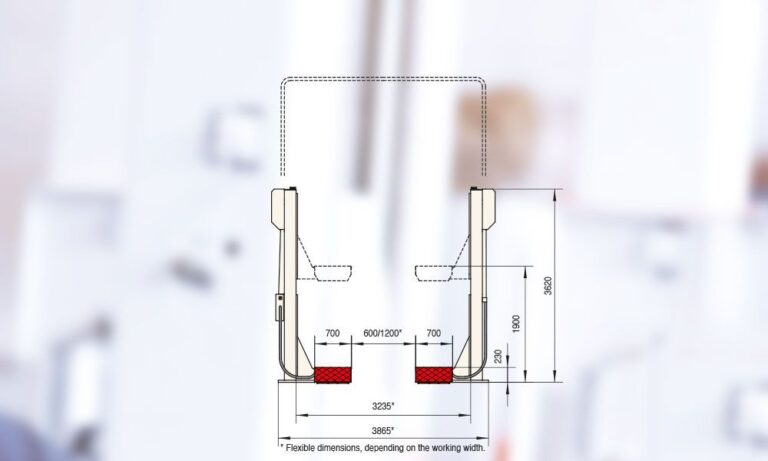

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
Stertil-Koni ST4175
Rated lifting capacity
17,500 kg total lift capacity
Configuration
Heavy-duty four-post platform lift
Lifting height
Heavy-duty four-post platform lift
Lifting time
72 seconds
Column / system height
Platform system – column height varies with installation
Column / system weight
Project-specific installation
Fork / platform arrangement
Drive-on platforms
Power / charging
Hydraulic lifting system; site power to be confirmed for supplied system
System configuration
Four-post fixed platform system

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

Select platform length and spacing around the actual fleet. Genesis lists 17,500 kg capacity, 1,900 mm lifting height, 72- second rise and 230 mm drive-on height, with 6, 8, 9, 10 and 11.5 metre platform lengths. Confirm vehicle wheelbase/overall length, track width, axle loads, approach angle, workshop height, floor/foundation, jacking requirements and drive-through layout before final design. Source certification references such as CE/UKCA/ALI must not be presented as Australian compliance approval.

Frequently asked questions

What is the ST4175 rated capacity?
17,500 kg total lift capacity.
Genesis lists 6, 8, 9, 10 and 11.5 metre platform lengths.
The clear-floor configuration is designed without a base frame or crossbeam spanning the centre working area.
Genesis lists approximately 1,900 mm lifting height.
Yes. Platform spacing, length, ramps, foundation, workshop services and installation should be confirmed from the site and fleet before quotation.
